TrolMaster Low-Volt Station (DSV-1)

Save 15%
TrolMasterSKU: GP00000768

Sale price$ 114.36 Regular price$ 134.36
🍃 Earn 114 GrowClub points worth $1.14 off your next order
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

TrolMaster Low-Volt Station (DSV-1)

The TrolMaster Low-Volt Station (DSV-1) is a versatile output module designed to control compatible 12V or 24V AC/DC low-voltage devices through TrolMaster environmental and irrigation control systems.

It can operate solenoids, valves, alarms and other low-voltage equipment while being assigned as a temperature, humidity, CO₂ or timer-controlled device.

Selectable 12V or 24V AC/DC Output

The DSV-1 provides multiple selectable low-voltage outputs:

  • 12V DC up to 0.5A
  • 24V DC up to 0.25A
  • 12V AC up to 0.5A
  • 24V AC up to 0.25A

This makes it suitable for a variety of low-voltage equipment commonly used in controlled growing environments.

Flexible Device Assignment

Depending on the connected TrolMaster controller, the DSV-1 can be configured to operate as a:

  • Temperature device
  • Humidity device
  • CO₂ device
  • Timer-controlled device

Compatible applications can include:

  • Solenoid valves
  • Irrigation valves
  • Audio or visual alarms
  • Other compatible 12V or 24V AC/DC devices

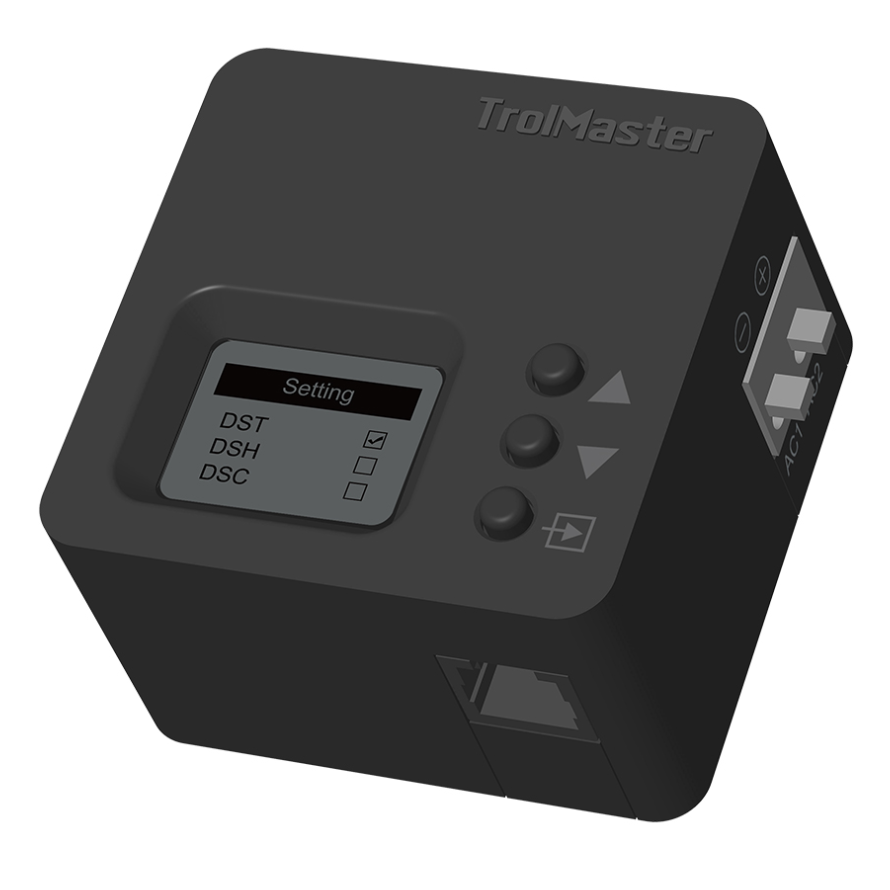

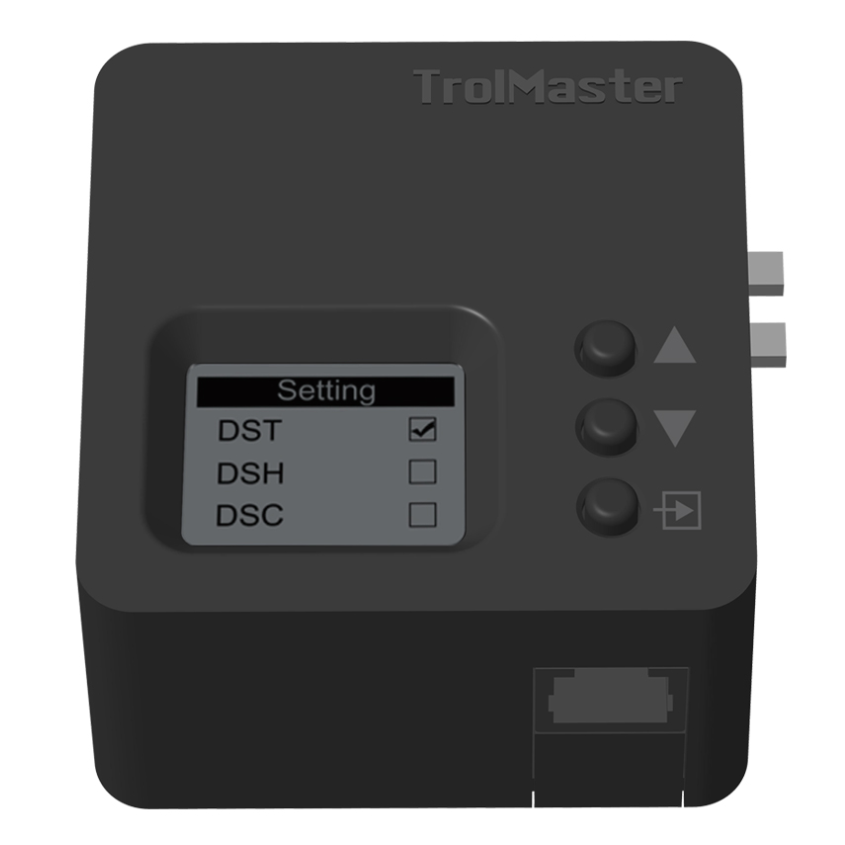

LCD Display and Manual Override

The integrated LCD display simplifies setup and operation.

By pressing and holding the top button, users can manually switch the connected low-voltage device ON or OFF, making installation, testing and troubleshooting easier.

Key Features

  • Selectable 12V or 24V AC/DC output
  • Controls compatible low-voltage devices
  • Temperature, humidity, CO₂ or timer assignment
  • LCD display
  • Manual ON/OFF override
  • RJ12 communication
  • Addressable module
  • Plug-and-play installation
  • Suitable for solenoids, valves and alarms

Product Specifications

Specification Details
Model DSV-1
Product Type Low-Voltage Station
Input Voltage 100–240 VAC, 50/60 Hz
12V Output 12V AC/DC, up to 0.5A
24V Output 24V AC/DC, up to 0.25A
Control Assignments Temperature / Humidity / CO₂ / Timer
Display LCD
Communication RJ12
Temperature of Operation 32–122°F (0–50°C)
Operating Humidity ≤90%
Package Dimensions 3.35 × 3.15 × 3.54 in (85 × 80 × 90 mm)

Package Contents

  • 1 × TrolMaster Low-Volt Station (DSV-1)
  • 1 × 16 ft (4.88 m) RJ12 cable
  • 1 × 4 ft (1.22 m) RJ12 cable
  • 1 × RJ12 T-splitter

Compatible With

The TrolMaster DSV-1 can be integrated with compatible TrolMaster control systems, including:

  • Hydro-X environmental control systems
  • Hydro-X Pro
  • Hydro-X Plus
  • Aqua-X irrigation control systems
  • Compatible TrolMaster systems supporting DSV-1 low-voltage control

Compatibility and available device assignments can vary according to the controller being used.

Flexible Low-Voltage Equipment Control

The TrolMaster DSV-1 provides a simple way to integrate 12V and 24V AC/DC equipment into a TrolMaster automation system. Its selectable output voltage, multiple control assignments, LCD display and manual override make it a versatile solution for controlling valves, solenoids, alarms and other low-voltage devices.
