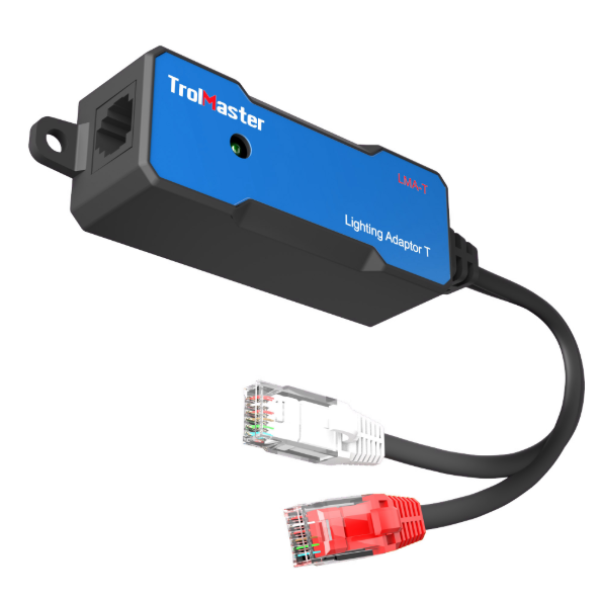

TrolMaster Lighting Control Adapter T (LMA-T)

Save 13%
TrolMasterSKU: GP00001704

Sale price$ 131.87 Regular price$ 151.87
🍃 Earn 131 GrowClub points worth $1.32 off your next order
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

TrolMaster Lighting Control Adapter T (LMA-T)

The TrolMaster Lighting Control Adapter T (LMA-T) integrates ThinkGrow LED grow lights with compatible TrolMaster environmental control systems.

It provides direct communication between the controller and ThinkGrow fixtures, allowing you to manage lighting schedules, dimming, and compatible spectrum-control functions from the TrolMaster system.

Designed for ThinkGrow LEDs

The LMA-T is purpose-built for ThinkGrow LED lighting systems.

With compatible Hydro-X controllers, it allows independent control of lighting channels, including separate adjustment of the full-spectrum and red-light outputs on supported ThinkGrow fixtures.

When used with the Hydro-X Plus (HCS-3) and compatible ThinkGrow PLUS-series LEDs, additional advanced spectrum-control functions are available.

Controls Up to 256 ThinkGrow LEDs

A single LMA-T can control up to 256 compatible ThinkGrow LED fixtures.

Fixtures can be connected in a daisy-chain configuration using the appropriate ThinkGrow and TrolMaster lighting cables, making the adapter suitable for both smaller grow rooms and larger lighting installations.

Plug-and-Play Connection

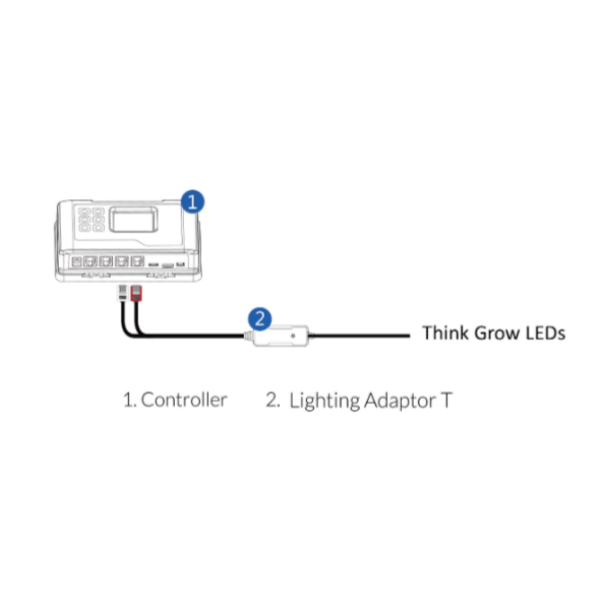

The LMA-T connects to compatible TrolMaster lighting-control ports and then to the ThinkGrow lighting network using waterproof connection cables.

The included ECS-9 cable provides a 12 ft (3.66 m) RJ12-to-4-pin IP65 connection between the lighting adapter and compatible ThinkGrow fixtures.

Key Features

  • Designed specifically for ThinkGrow LED grow lights
  • Independent lighting-channel control
  • Supports lighting schedules and dimming
  • Advanced spectrum control with compatible systems and fixtures
  • Controls up to 256 ThinkGrow LEDs per adapter
  • Daisy-chain lighting configuration
  • RJ12 communication
  • Waterproof 4-pin lighting connection
  • LED status indicator
  • Plug-and-play installation

Product Specifications

Specification Details
Model LMA-T
Product Type Lighting Control Adapter T
Compatible Lighting ThinkGrow LED systems
Input Voltage 12V
Maximum Current 0.1A
Maximum Fixture Capacity Up to 256 ThinkGrow LEDs
Controller Connection RJ12
Lighting Connection 4-pin waterproof connector
Operating Temperature 32–122°F (0–50°C)
Operating Humidity ≤90%
Package Dimensions 6.14 × 3.27 × 1.18 in (156 × 83 × 30 mm)
Gross Weight 2.12 oz (60 g)

Package Contents

  • 1 × TrolMaster Lighting Control Adapter T (LMA-T)
  • 1 × RJ12-to-customized waterproof connector
  • 1 × ECS-9 12 ft (3.66 m) RJ12-to-4-pin IP65 cable

Compatible With

The TrolMaster LMA-T is designed for:

  • ThinkGrow LED grow lights
  • Hydro-X (HCS-1)
  • Hydro-X Pro (HCS-2)
  • Hydro-X Plus (HCS-3)
  • Compatible TrolMaster lighting-control systems supporting LMA-T

Available lighting and spectrum-control functions depend on the controller and ThinkGrow fixture model being used.

Dedicated ThinkGrow Lighting Control

The TrolMaster LMA-T provides a dedicated connection between compatible ThinkGrow LEDs and TrolMaster environmental controllers. With support for up to 256 fixtures, dimming, scheduling and advanced spectrum control on supported systems, it offers a scalable solution for centralized ThinkGrow lighting management.
