Discover the TrolMaster Hydro-X Dry Contact Station (DSD-1)

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to user’s who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. *

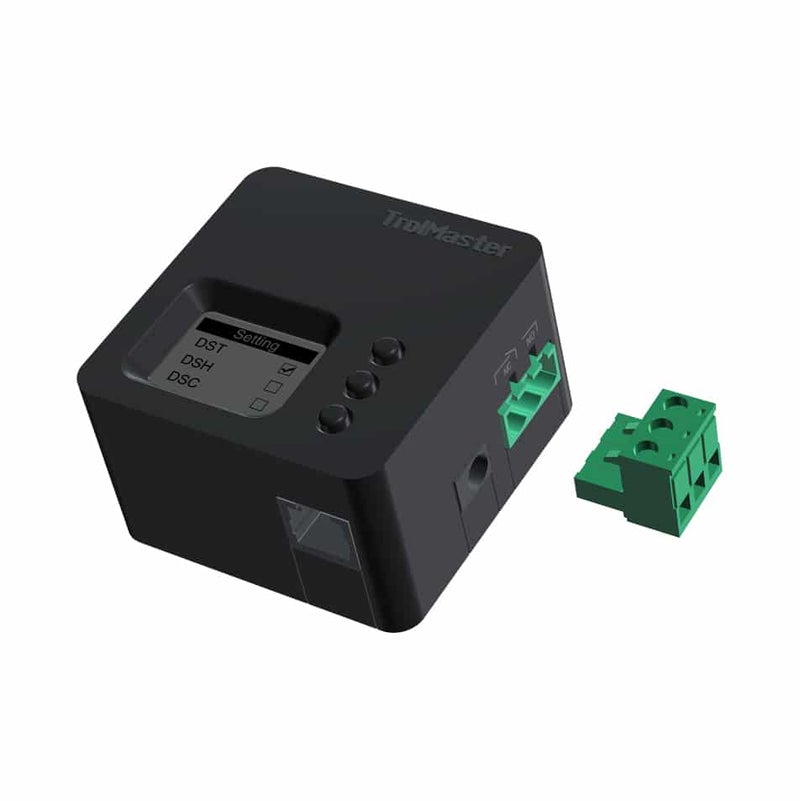

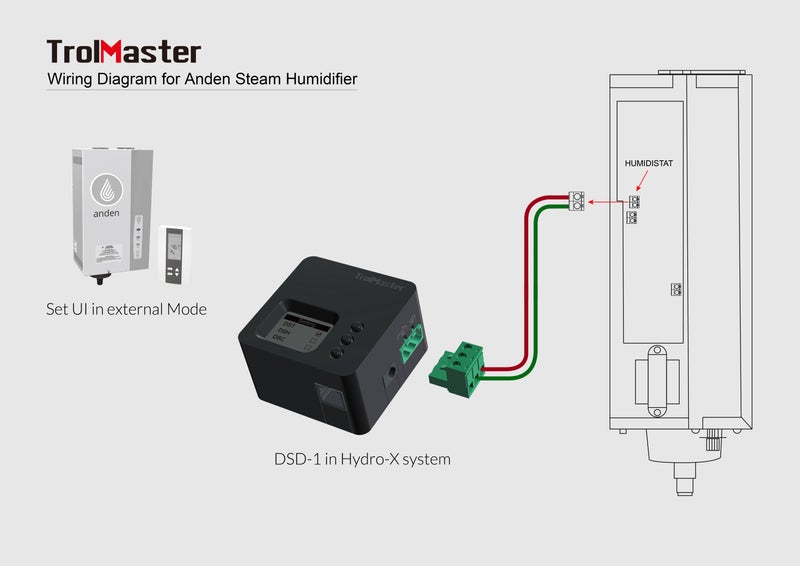

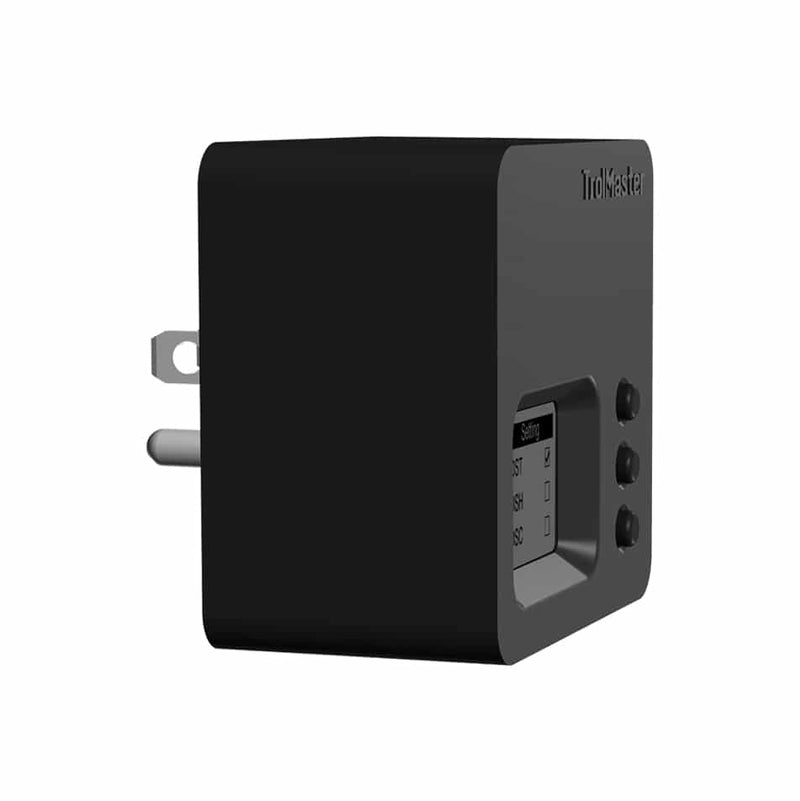

The DSD-1 plugs into a standard Nema 120 volt 15/20-amp power outlet to provide operating power to the DSD-1 circuitry. Then the user can use any voltage (up to 240 volts @ 10-amps) to connect their control voltage from their equipment to the common, normally open and/or normally closed contacts on the DSD-1. Almost any device that requires a “dry-contact” or relay to activate will work with the DSD-1.

The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:

  • Lighting contactors
  • Light Deprivation curtains
  • Pump contactors
  • Temperature devices
  • Humidity devices
  • CO2 devices

Features:

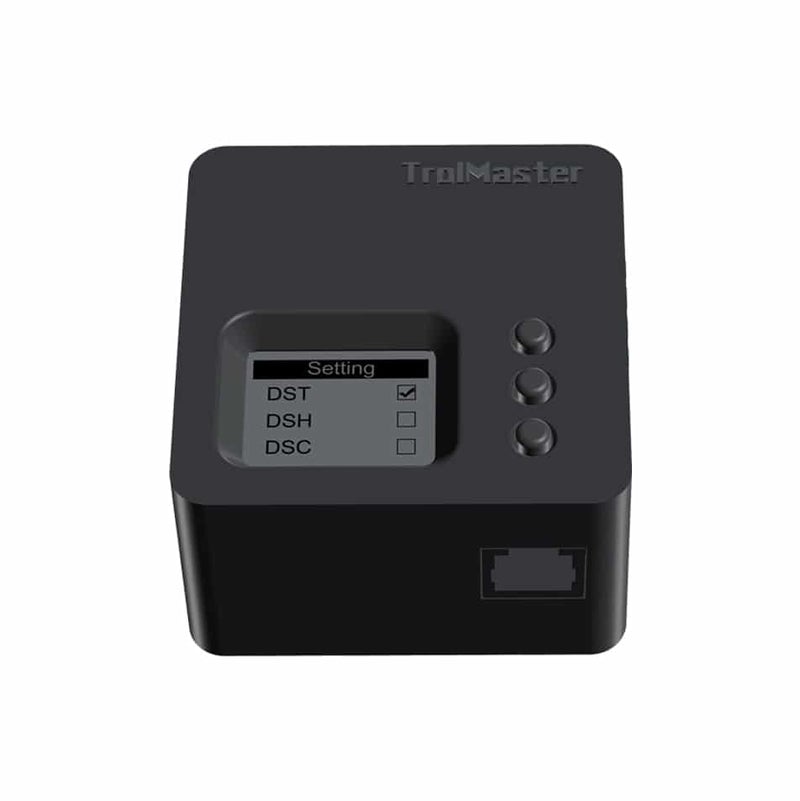

  • LCD Display for easy operation
  • Seamless connection with Hydro-X
  • Multiple purposes assignment
  • Plug & play

Package includes:

1 x TrolMaster Hydro-X Dry Contact Station
1 x TrolMaster 16ft RJ12 Cable
1 x TrolMaster 4ft RJ12 Cable
1 x TrolMaster RJ12 T-Splitter
