TrolMaster Humidity Device Station (DSH-1)

Save 16%
TrolMasterSKU: GP00000761

Sale price$ 100.64 Regular price$ 119.99
🍃 Earn 100 GrowClub points worth $1.01 off your next order
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

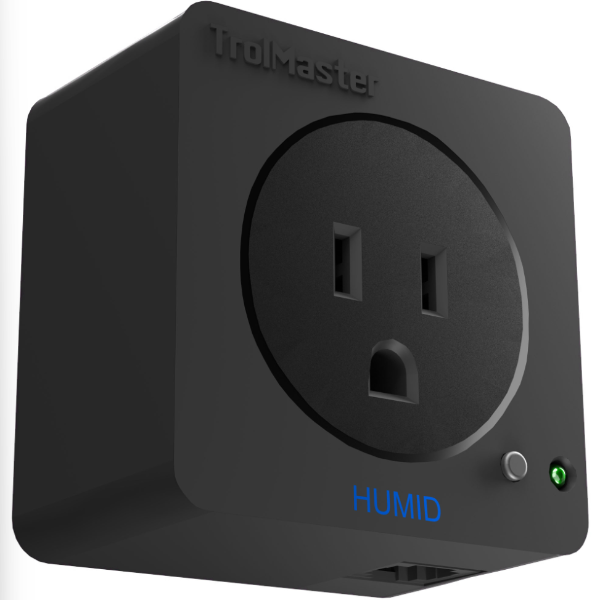

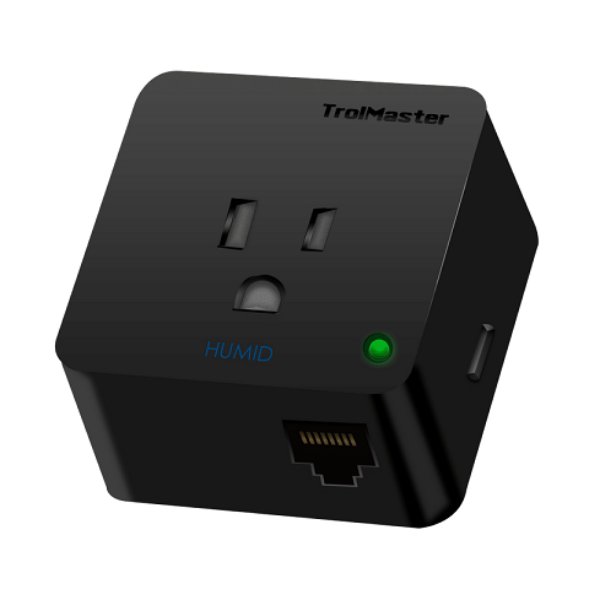

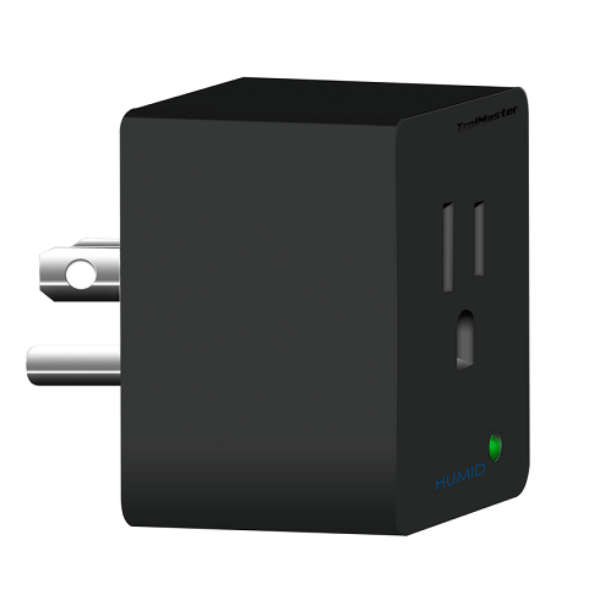

TrolMaster Humidity Device Station (DSH-1)

The TrolMaster Humidity Device Station (DSH-1) is a plug-and-play control module designed to connect standard humidifiers and dehumidifiers to compatible TrolMaster environmental controllers.

It allows the controller to automatically turn connected humidity equipment ON or OFF according to programmed humidity settings.

Automatic Humidity Control

The DSH-1 can be configured to control either:

  • Humidifiers when humidity falls below the programmed setpoint
  • Dehumidifiers when humidity rises above the programmed setpoint

This allows compatible TrolMaster controllers to automatically maintain the desired humidity level throughout the growing environment.

Up to 10A Output

The DSH-1 supports equipment operating from 100–240 VAC, 50/60 Hz with a maximum output current of 10A.

For dehumidifiers, TrolMaster recommends using equipment drawing less than 7A to help prevent overload from high startup current.

LED Status Indicator

The built-in LED provides quick operating-status information:

  • Fast blinking green – module not addressed or communication issue
  • Slow blinking green – connected and OFF
  • Solid green – connected and ON
  • Blinking red – overload detected

Manual ON/OFF Override

Press and hold the addressing button to manually switch the connected device ON or OFF.

This makes equipment testing and troubleshooting easier without changing the programmed controller settings.

Plug-and-Play RJ12 Connection

The DSH-1 connects to compatible TrolMaster controllers using standard RJ12 communication cables and splitters.

Its addressable design allows multiple device stations to be connected within supported TrolMaster systems.

Key Features

  • Controls standard humidifiers and dehumidifiers
  • Automatic humidity-based ON/OFF control
  • 100–240 VAC, 50/60 Hz
  • Maximum output current of 10A
  • Dehumidifiers should draw less than 7A
  • LED operating-status indicator
  • Manual ON/OFF override
  • RJ12 communication
  • Addressable device station
  • Plug-and-play installation
  • Compatible with multiple TrolMaster environmental controllers

Product Specifications

Specification Details
Model DSH-1
Product Type Humidity Device Station
Input Voltage 100–240 VAC, 50/60 Hz
Output Voltage 100–240 VAC, 50/60 Hz
Maximum Output Current 10A
Recommended Dehumidifier Load Less than 7A
Communication RJ12
Control Type Humidifier / Dehumidifier
Operating Temperature 32–122°F (0–50°C)
Operating Humidity ≤90%
Package Dimensions 3.35 × 3.15 × 3.54 in (85 × 80 × 90 mm)
Gross Weight 12 oz (340 g)

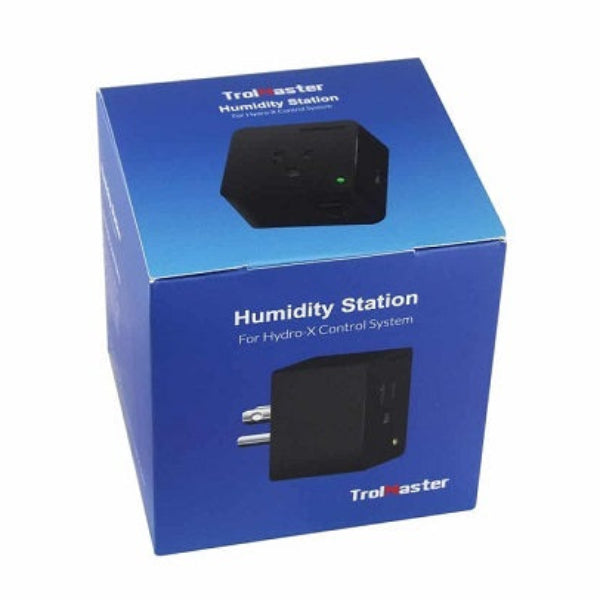

Package Contents

  • 1 × TrolMaster Humidity Device Station (DSH-1)
  • 1 × 16 ft (4.88 m) RJ12 cable
  • 1 × 4 ft (1.22 m) RJ12 cable
  • 1 × RJ12 T-splitter

Compatible With

The TrolMaster DSH-1 can be used with compatible TrolMaster environmental-control systems, including:

  • Hydro-X (HCS-1)
  • Hydro-X Pro (HCS-2)
  • Hydro-X Plus (HCS-3)
  • Green-X (GCS-1)
  • Tent-X (TCS-1)

Device capacity varies depending on the controller being used.

Simple Humidity Equipment Control

The TrolMaster DSH-1 provides a straightforward way to automate standard humidifiers and dehumidifiers through a TrolMaster environmental controller. With up to 10A output, RJ12 connectivity, manual override and clear LED status indication, it is a practical solution for automated humidity management in grow rooms and controlled environments.
