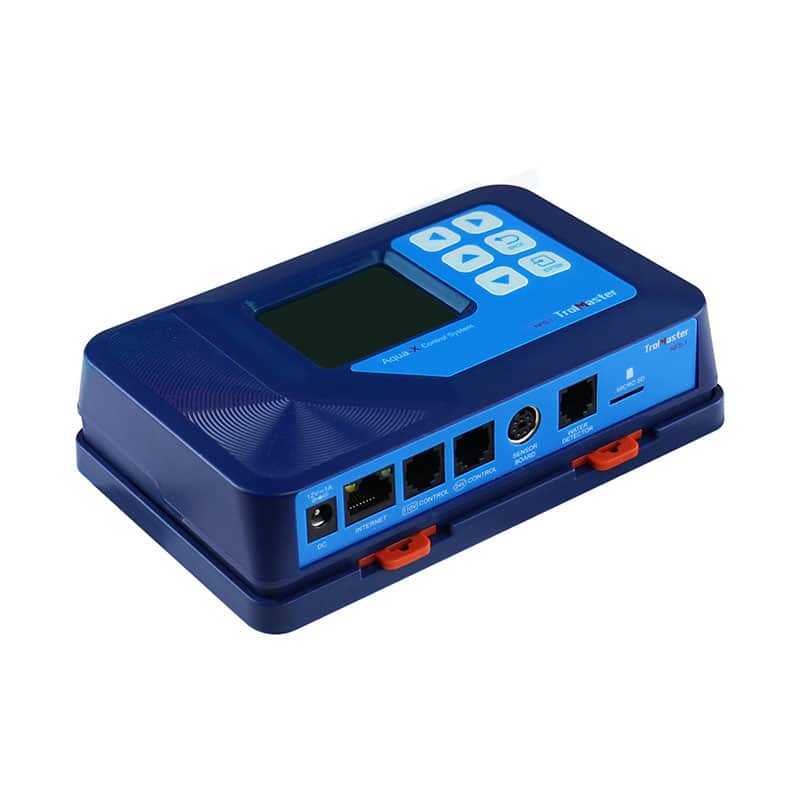

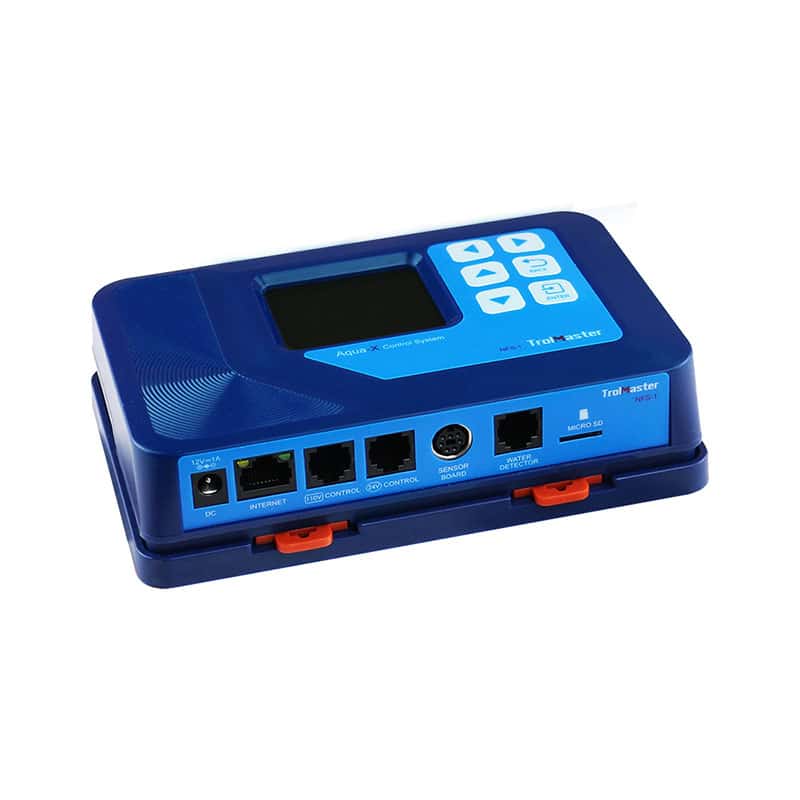

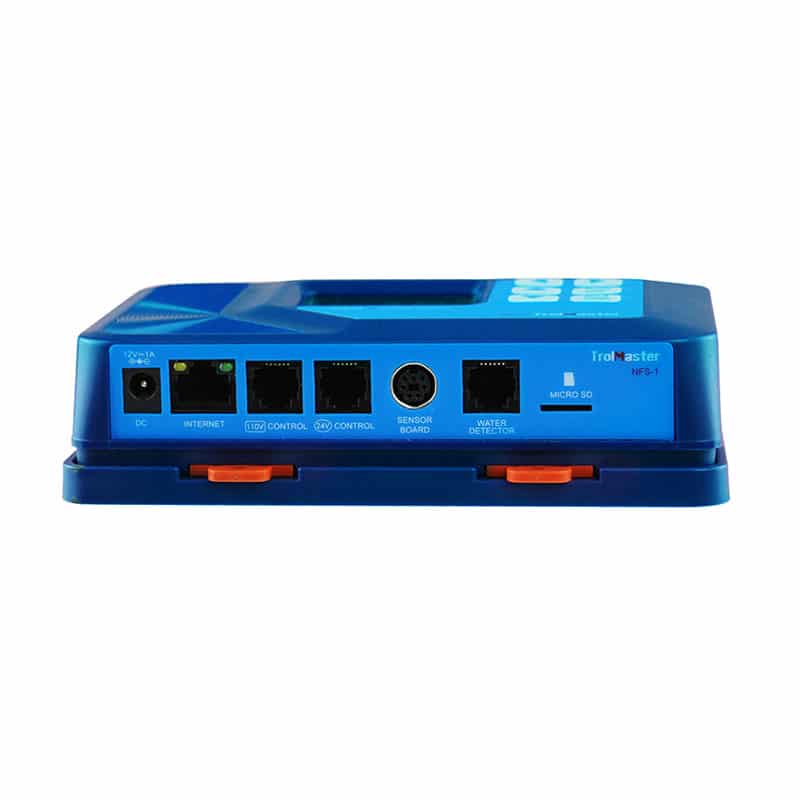

TrolMaster Aqua-X Irrigation Control System (NFS-1)
The TrolMaster Aqua-X Irrigation Control System (NFS-1) is a professional-grade, modular irrigation controller that automates and monitors multiple watering zones from one centralized system. Built for hydroponic operations, grow rooms, greenhouses, and controlled-environment agriculture, the Aqua-X can manage up to 30 individual irrigation outputs using compatible 24V solenoid valves or 110/120V pumps.
Its expandable design allows growers to start with a simple irrigation setup and add control boards, sensors, and monitoring equipment as their operation grows. The NFS-1 also connects with the TrolMaster app, providing remote access to system settings, alerts, and historical information.
Control Up to 30 Irrigation Outputs
The Aqua-X NFS-1 can manage up to 30 independently controlled irrigation outputs using compatible TrolMaster modules.
Growers can use:
-
OA6-24 Control Boards for 24VAC irrigation solenoid valves
-
OA6-110 Control Boards for compatible 110/120V pumps or solenoid valves
-
DSP-1 Program Device Stations for programmable equipment and master-pump control
Up to five compatible control modules can be connected to a single NFS-1 system, allowing irrigation schedules to be customized for different rooms, zones, reservoirs, or crop areas.
Flexible Irrigation Scheduling
The Aqua-X provides both recycle timer and scheduled irrigation functions, allowing growers to configure watering according to their cultivation strategy.
The controller supports up to 12 customizable irrigation schedules, with ON times as short as 1 second and OFF intervals as short as 1 minute.
This flexibility makes the NFS-1 suitable for frequent precision irrigation, traditional watering schedules, nutrient-delivery systems, and multi-zone cultivation environments.
Water Detection and Irrigation Confirmation
The NFS-1 supports TrolMaster water detectors to help monitor irrigation performance.
The included WD-1 Water Detector can be used for:
- Water-leak detection
- Irrigation confirmation
- Drainage monitoring
- Detecting unexpected water presence or absence
The Aqua-X system can support up to 30 compatible Water Detectors, providing additional monitoring across larger irrigation installations.
Monitor Root-Zone Moisture
The Aqua-X can connect to up to 8 compatible Water Content Sensors, allowing growers to monitor moisture levels directly within the growing medium.
Substrate-moisture monitoring can provide valuable insight into irrigation timing and dry-back patterns in media such as coco, soil, and rockwool.
Optional pH, EC and Water Temperature Monitoring
With the optional TrolMaster AMP-2 Sensor Board and compatible probes, the NFS-1 can monitor important nutrient-solution parameters, including:
- pH
- Electrical conductivity (EC)
- Water temperature
The system displays sensor information directly on the Aqua-X controller and through the TrolMaster app, helping growers track reservoir and nutrient-solution conditions.
Key Features
- Professional-grade modular irrigation controller
-
Controls up to 30 individual irrigation outputs
- Supports 24VAC solenoid valves and compatible 110/120V pumps
-
Up to 12 customizable irrigation schedules
- Recycle and scheduled timer modes
-
ON times adjustable down to 1 second
-
OFF times adjustable down to 1 minute
-
Supports up to 8 Water Content Sensors
-
Supports up to 30 Water Detectors
- Optional pH, EC, and water-temperature monitoring
- Data logging and historical charts
- Remote access through the TrolMaster app
- Alerts and system notifications
- Expandable modular design
- Suitable for hydroponics, grow rooms, greenhouses, and controlled-environment agriculture
Product Specifications
| Specification |
Details |
| Model |
NFS-1 |
| Product Type |
Modular Irrigation Control System |
| Input Voltage |
100–240 VAC, 50/60 Hz |
| Maximum Irrigation Outputs |
Up to 30 |
| OA6-24 Control Boards |
Up to 5 per system* |
| OA6-110 Control Boards |
Up to 5 per system* |
| DSP-1 Program Device Stations |
Up to 5 per system* |
| Water Detectors |
Up to 30 |
| Water Content Sensors |
Up to 8 |
| AMP-2 Sensor Board |
Up to 1 |
| EC / Temperature Sensor |
PCT-series compatible |
| pH Sensor |
PPH-series compatible |
| Display |
Backlit LCD |
| Control Interface |
Button controls |
| Remote Monitoring |
TrolMaster smartphone app |
| Primary Application |
Automated multi-zone irrigation management |
*The combined number of OA6-24, OA6-110, and DSP-1 control modules cannot exceed five modules per NFS-1 system, providing up to 30 controlled outputs.
Compatible With
The TrolMaster Aqua-X NFS-1 supports a range of compatible irrigation and monitoring equipment, including:
- TrolMaster OA6-24 6 Outputs 24V Control Board
- TrolMaster OA6-110 110V Control Board
- TrolMaster DSP-1 Program Device Station
- TrolMaster WD Series Water Detectors
- TrolMaster Water Content Sensors
- TrolMaster AMP-2 Sensor Board
- TrolMaster PPH Series pH Sensors
- TrolMaster PCT Series EC / Temperature Sensors
Its modular architecture lets growers configure the system to match the size and complexity of their irrigation setup.
Expandable Irrigation Automation
Managing several irrigation zones manually can become increasingly difficult as a cultivation facility expands. The TrolMaster Aqua-X NFS-1 centralizes irrigation scheduling, equipment control, water detection, substrate-moisture monitoring, and optional nutrient monitoring within one expandable platform.
For growers looking to automate multiple irrigation zones while maintaining flexibility for future expansion, the TrolMaster Aqua-X Irrigation Control System (NFS-1) provides a practical solution for centralized irrigation management and monitoring.
