TrolMaster AC Universal Remote Station (ARS-1)

The TrolMaster AC Universal Remote Station (ARS-1) is designed to integrate compatible infrared-controlled mini-split air conditioners with TrolMaster environmental-control systems.

The ARS-1 learns infrared commands from the AC unit’s original remote control and automatically adjusts the temperature setpoint based on programmed day and night settings.

Automatic Mini-Split AC Control

The ARS-1 works with most mini-split air conditioners equipped with an IR remote control.

It can also work with certain window-style air conditioners that use compatible infrared remote-control technology.

Learns Your Existing Remote

During setup, the ARS-1 learns the infrared commands from the original remote supplied with the air conditioner.

Once programmed, the module sends those commands to the indoor AC unit automatically without physically modifying the air conditioner.

Separate Day and Night Temperatures

The ARS-1 lets you program different temperature setpoints for day and night operation.

Using the environmental controller’s photocell information, the system automatically switches between the appropriate temperature settings as the lighting cycle changes.

Infrared Signal Emitter

The included signal emitter sends the learned infrared commands directly to the air-conditioning unit.

For installations requiring additional distance between the ARS-1 and the AC unit, the optional TrolMaster ECS-8 32 ft (9.75 m) IR emitter extension cable can be used.

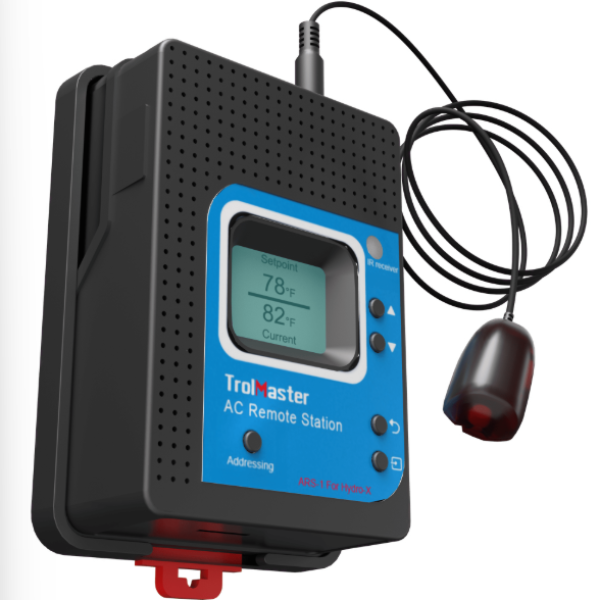

LCD Display and Easy Setup

The integrated LCD display simplifies programming and operating-status checks.

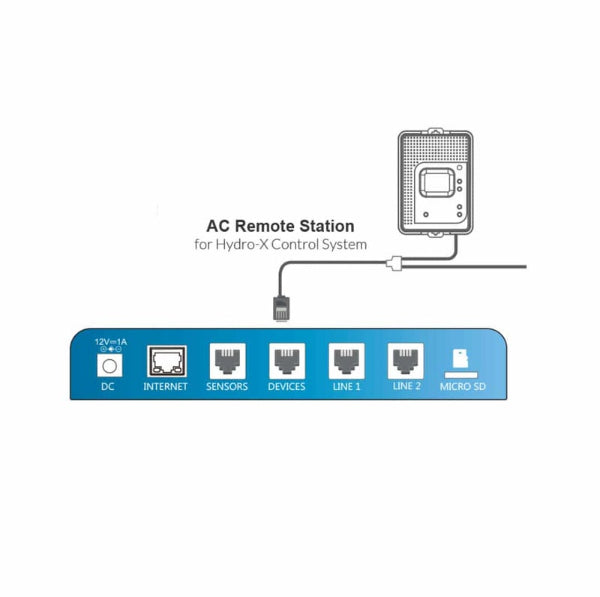

The ARS-1 also features address assignment, RJ12 communication and plug-and-play integration with compatible TrolMaster controllers.

Key Features

  • Universal IR controller for compatible air conditioners
  • Designed primarily for mini-split AC systems
  • Compatible with some IR-controlled window AC units
  • Learns commands from the original AC remote
  • Separate day and night temperature setpoints
  • Automatic operation based on photocell day/night status
  • Included infrared signal emitter
  • LCD display
  • RJ12 communication
  • Addressable module
  • MicroSD firmware-update capability
  • Plug-and-play installation

Product Specifications

Specification Details
Model ARS-1
Product Type Universal AC Remote Station
Control Method Infrared (IR)
Output Voltage 0–11.5V
Maximum Current 0.2A
Communication RJ12
Display LCD
Operating Temperature 32–122°F (0–50°C)
Operating Humidity ≤90%
Package Dimensions 6.30 × 3.39 × 3.39 in (160 × 86 × 86 mm)
Gross Weight 0.95 lb (0.43 kg)

Package Contents

  • 1 × TrolMaster AC Universal Remote Station (ARS-1)
  • 1 × infrared signal emitter
  • 1 × 16 ft (4.88 m) RJ12 cable
  • 1 × 4 ft (1.22 m) RJ12 cable
  • 1 × RJ12 T-splitter

Compatible With

The TrolMaster ARS-1 is designed primarily for:

  • Hydro-X (HCS-1)
  • Compatible Hydro-X control installations
  • Most mini-split air conditioners using an infrared remote
  • Certain window AC units using compatible infrared controls

The ARS-1 is also supported by certain newer TrolMaster controller configurations. Confirm compatibility for the specific controller and AC system before installation.

AC Compatibility Note

The ARS-1 requires an air conditioner that can be operated using an infrared remote control.

TrolMaster currently notes that the ARS-1 is not compatible with certain systems from Daiken, Mr. Cool, Innovair, Denali Aire, Cooper and Hunter.

Automated Day/Night Air-Conditioning Control

The TrolMaster ARS-1 provides a convenient way to integrate compatible mini-split air conditioners into an automated growing environment. By learning commands from the original remote and automatically changing day/night temperature setpoints, it provides more flexible climate management without directly switching the AC unit’s electrical load.
