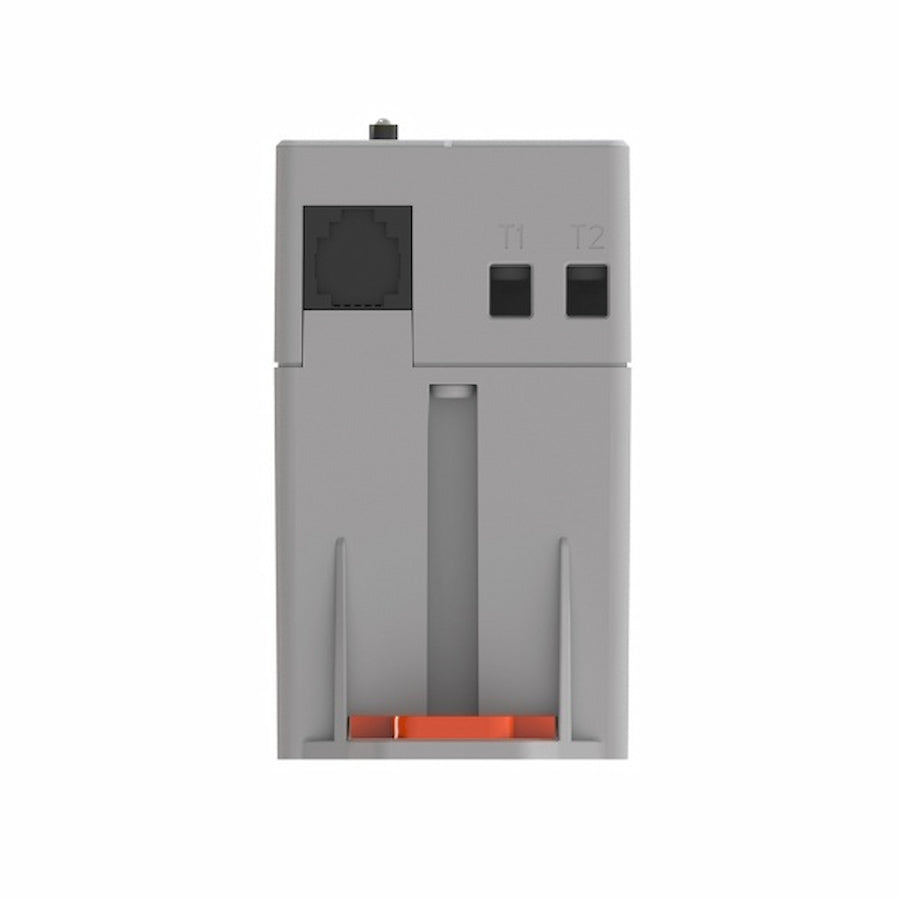

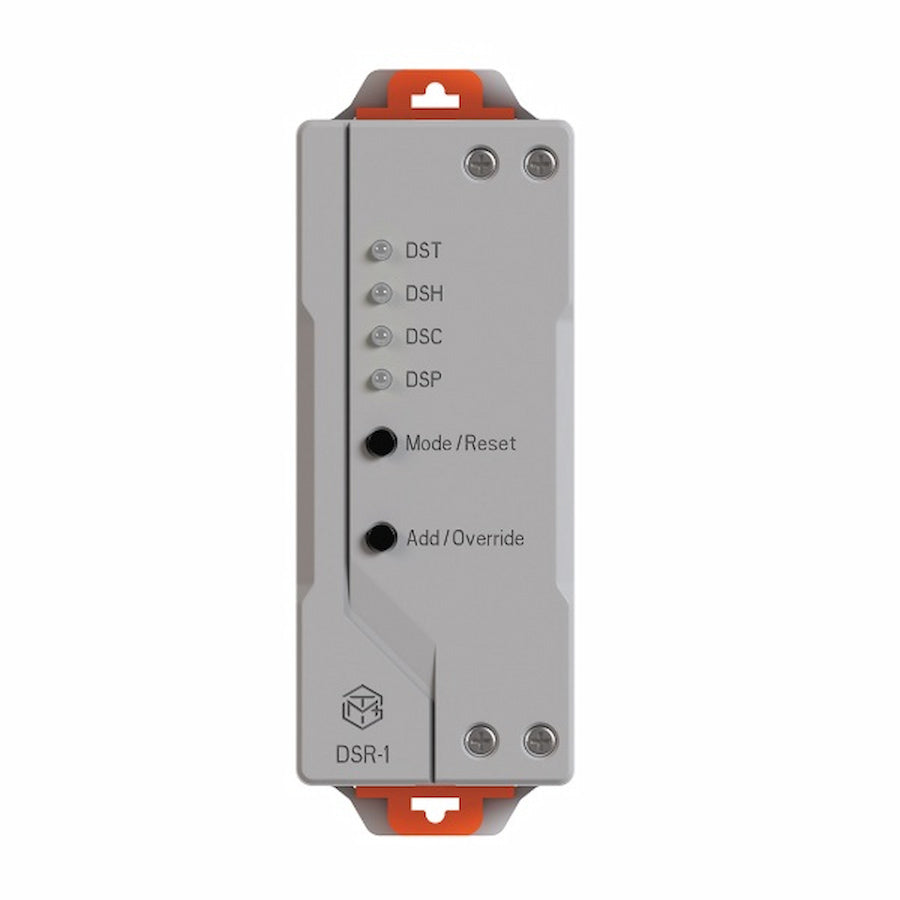

TrolMaster 25-Amps Relay Device Station 100–277V (DSR-1)

The TrolMaster 25-Amps Relay Device Station 100–277V (DSR-1) is a high-current control module designed to automate compatible electrical equipment through TrolMaster environmental, irrigation, CO₂, and greenhouse control systems. With support for loads up to 25 A, the DSR-1 is ideal for equipment that requires more current than standard device stations can provide.

Its flexible design lets you assign the module to temperature, humidity, CO₂, or programmed timer control, making it a versatile solution for grow rooms, greenhouses, hydroponic facilities, and other controlled-environment applications.

High-Current Equipment Control

The DSR-1 supports electrical equipment operating from 100–277 VAC, 50/60 Hz, with a maximum output current of 25 A.

Depending on the connected TrolMaster control system, the relay station can be configured to respond to temperature, humidity, CO₂ conditions, or programmed ON/OFF schedules. This flexibility allows growers to automate a wide range of higher-current equipment from one centralized control platform.

Key Features

  • High-current relay device station
  • Supports loads up to 25 A
  • Operating voltage range of 100–277 VAC, 50/60 Hz
  • Can be assigned for temperature control
  • Can be assigned for humidity control
  • Can be assigned for CO₂ control
  • Can be assigned as a programmable timer device
  • Built-in overload protection
  • Plug-and-play integration with compatible TrolMaster systems
  • Suitable for grow rooms, greenhouses, hydroponic facilities, and controlled-environment agriculture
  • Flexible solution for higher-current electrical equipment

Product Specifications

Specification Details
Model DSR-1
Product Type 25-Amp Relay Device Station
Input Voltage 100–277 VAC, 50/60 Hz
Output Voltage 100–277 VAC, 50/60 Hz
Maximum Output Current 25 A
Control Assignments Temperature, humidity, CO₂, or timer
Protection Overload protection
Installation Plug and play
Operating Temperature 32–104°F (0–40°C)
Operating Humidity ≤90%
Primary Application High-current equipment automation and control

Compatible With

The TrolMaster DSR-1 is compatible with several TrolMaster control platforms, including:

  • TrolMaster Hydro-X Environmental Control Systems
  • TrolMaster Aqua-X Irrigation Control Systems
  • TrolMaster Carbon-X CO₂ Control System
  • TrolMaster Green-X Greenhouse Control System

Its multi-purpose design lets the DSR-1 perform different control functions depending on the system it is connected to, reducing the need for separate specialized relay modules.

Flexible High-Current Automation

The TrolMaster DSR-1 is especially useful when standard device stations do not provide enough current capacity for connected equipment. With support for up to 25 A, it gives growers a practical way to integrate higher-current devices into an automated TrolMaster control system.

For growers looking to expand environmental, irrigation, CO₂, or greenhouse automation, the TrolMaster 25-Amps Relay Device Station 100–277V (DSR-1) provides a flexible and reliable solution for centralized high-current equipment control.
