PhotonTek X 600W Pro 3.1 LED
The PhotonTek X 600W Pro 3.1 LED is a premium, high-efficiency full-spectrum horticultural grow light designed for growers who want exceptional photon output, broad canopy coverage and professional-grade performance. Ideal for grow tents, grow rooms, multi-layer cultivation and commercial indoor growing environments, this upgraded X-series fixture combines advanced diode technology with PhotonTek's proven modular magnetic-bar design.
Producing an impressive 1990 µmol/s PPF with a fixture efficacy of 3.1 µmol/J, the PhotonTek X 600W Pro 3.1 LED delivers extremely efficient horticultural lighting across a full 5' × 5' growing area. Compared with the earlier X 600W platform, PhotonTek has increased total usable photon output by approximately 19%, helping growers achieve more light across a larger canopy.

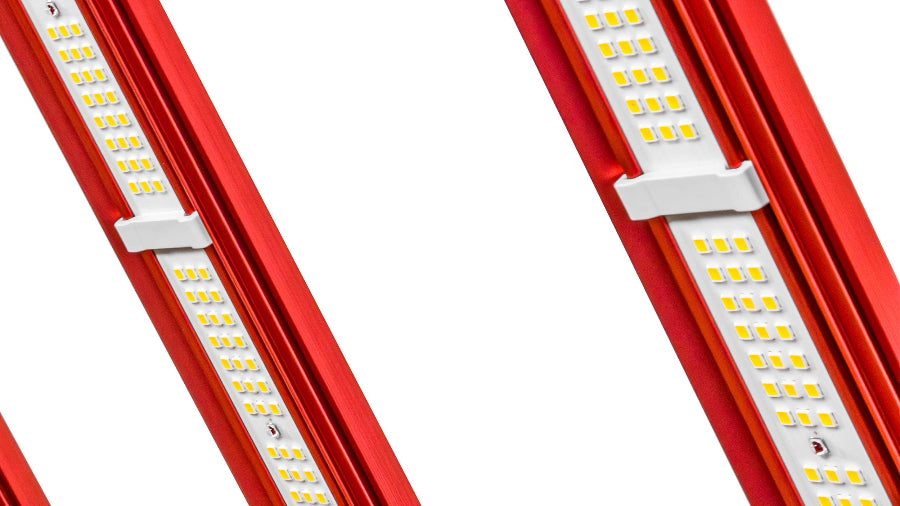

The fixture uses the latest generation of high-performance Samsung LM301H EVO and Osram 4.24 diodes, creating an optimized full spectrum suitable for the entire plant growth cycle. From propagation and vegetative development through flowering, the X 600W Pro 3.1 provides a balanced spectrum designed for consistent plant development and strong canopy coverage.

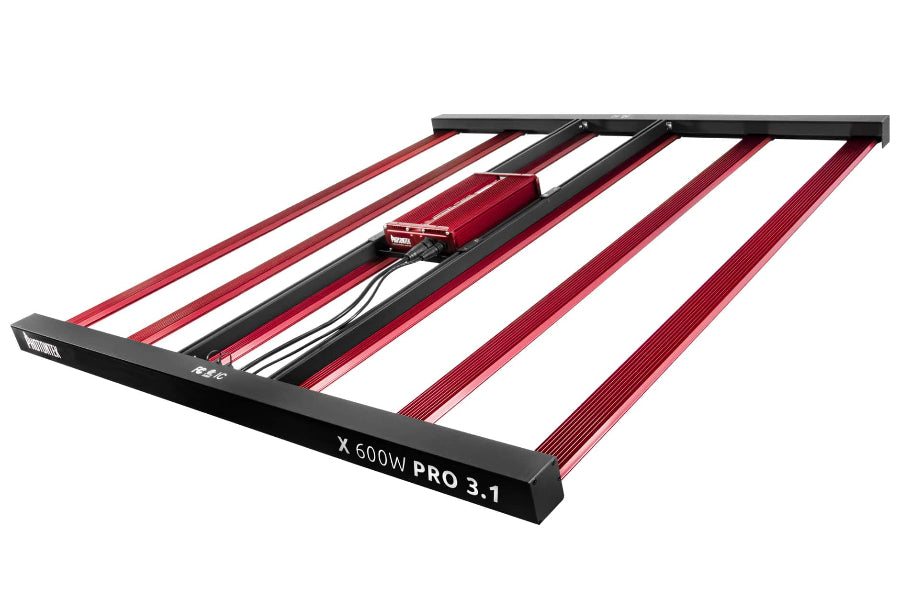

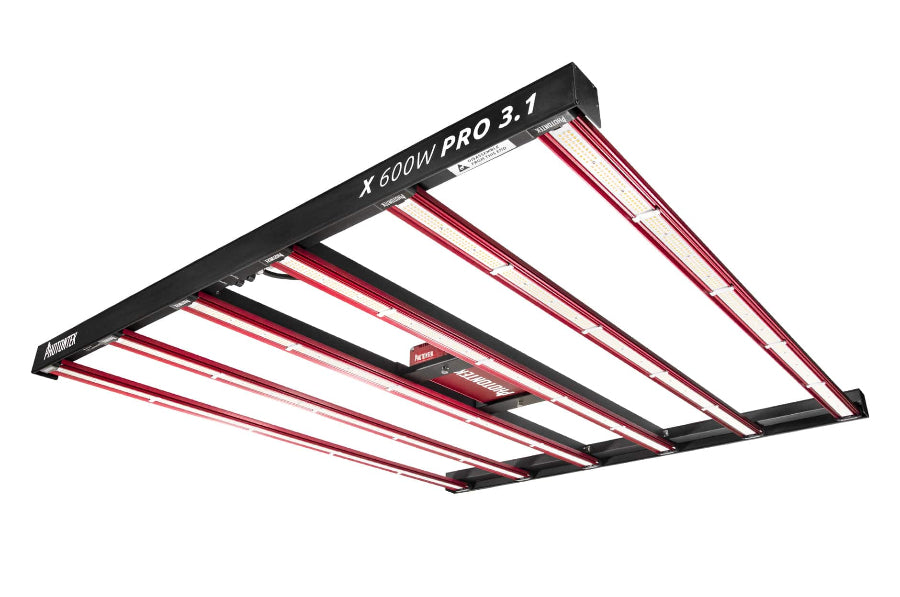

Its lighting system consists of six interchangeable 100W Pro 3.1 magnetic LED bars. PhotonTek's modular magnetic design makes the bars easy to install, remove or replace while helping create a uniform distribution of light across the growing area.
With a wide 120° light distribution, the fixture spreads photons evenly across the canopy while minimizing concentrated hotspots. This makes the X 600W Pro 3.1 particularly well suited to grow tents, low-ceiling cultivation rooms, benches and multi-layer systems where uniform lighting at relatively close canopy distances is important.
PhotonTek's Clear Glue protection technology provides up to 99% light transmittance while helping protect the diodes against moisture and corrosion. Combined with an IP65 ingress-protection rating, the fixture is designed for dependable use in demanding horticultural environments.
The included PhotonTek driver is detachable, letting growers mount it directly to the fixture or position it remotely. Remote driver installation adds flexibility when organizing a grow space and can help move some heat away from the plant canopy.

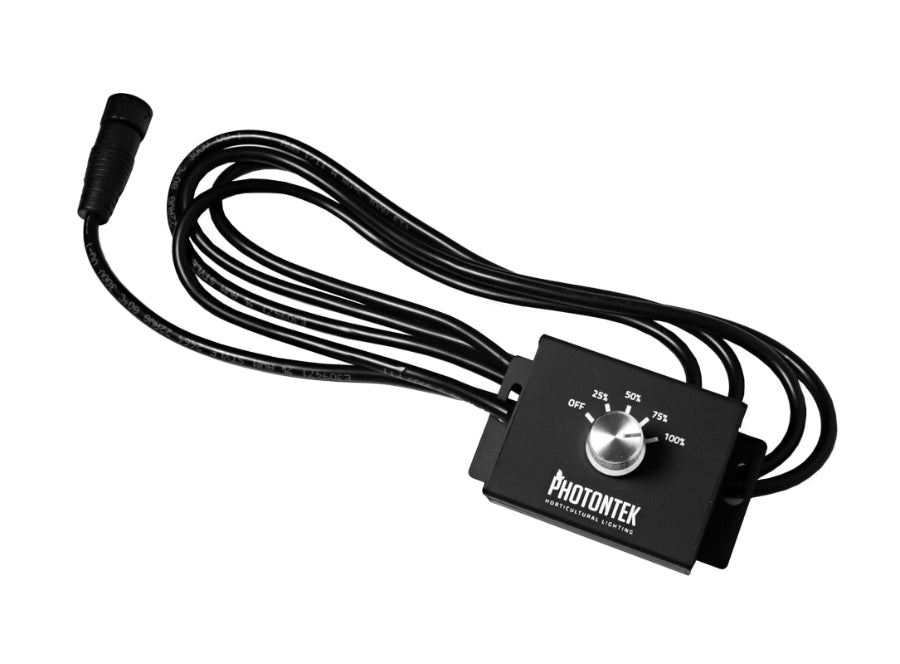

For precise lighting control, the PhotonTek X 600W Pro 3.1 LED is fully dimmable. The included 0–10V dimmer offers settings of OFF, 25%, 50%, 75%, and 100%, making it easy to adjust light intensity and PPFD to match plant size, growth stage, and environmental conditions.
For more advanced automation, the fixture is compatible with the PhotonTek Digital Lighting Controller and universal 0–10V control systems. The PhotonTek controller gives growers access to programmable lighting schedules, automated dimming in 1% increments, temperature safety controls, and sunrise and sunset simulation.

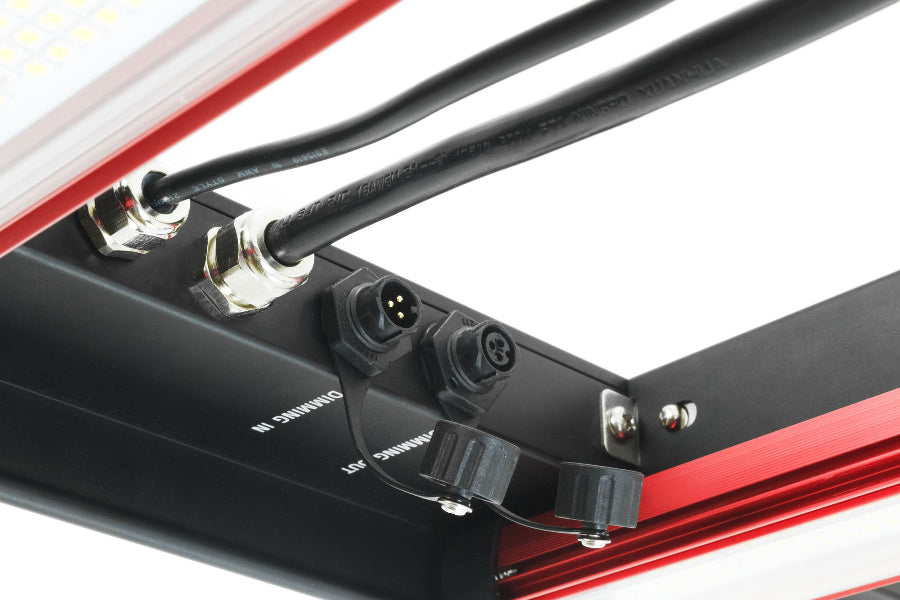

The X 600W Pro 3.1 LED also supports daisy-chain connectivity, making it easier to integrate multiple compatible PhotonTek fixtures into larger lighting installations.
With an L90-rated lifetime exceeding 60,000 hours and a 5-year manufacturer's warranty, the PhotonTek X 600W Pro 3.1 LED combines high efficiency, excellent photon output, modular construction and advanced lighting control for serious indoor cultivation.
Key Features
-
Professional full-spectrum LED grow light
-
Powerful 1990 µmol/s PPF output
-
High 3.1 µmol/J efficacy at 230V AC
-
Approximately 19% higher usable photon output than the previous platform
-
Full 5' × 5' grow coverage
-
Suitable for vegetative growth and flowering
-
Premium Samsung LM301H EVO and Osram 4.24 diodes
- 6 × 100W Pro 3.1 full-spectrum magnetic LED bars
- Interchangeable magnetic light-bar design
- 120° light distribution
- Optimized full-spectrum horticultural output
- Detachable PhotonTek driver
- Fully dimmable
- 0–10V dimmer included
-
Dimming settings: OFF / 25% / 50% / 75% / 100%
-
Compatible with the PhotonTek Digital Lighting Controller
-
Compatible with universal 0–10V control systems
- Daisy-chain capability
- Clear Glue LED protection technology
-
Up to 99% light transmittance
- IP65 protection
- L90 lifetime greater than 60,000 hours
- 5-year manufacturer's warranty
Specifications
-
Product Code: PTEKLED036
-
Product Type: Full-spectrum horticultural LED fixture
-
Input Power: 640W (±5%) at 230V AC
-
Efficacy: 3.1 µmol/J at 230V AC
-
PPF: 1990 µmol/s
-
Input Voltage: 120–277V AC, 50–60Hz
-
Power Factor: 0.99 at 230V AC
-
Spectrum: Full Spectrum
-
Coverage Area: 5' × 5' (1.5 × 1.5 m)
-
Light Distribution: 120°
-
Light Source: Samsung LM301H EVO and Osram 4.24
-
LED Bars: 6 × PhotonTek 100W Pro 3.1 Full-Spectrum Bars
-
Dimming: OFF / 25% / 50% / 75% / 100%
-
Dimmer: 0–10V dimmer included
-
External Control: PhotonTek Digital Lighting Controller or universal 0–10V controller
-
Daisy Chain: Yes
-
Driver: Detachable PhotonTek 600W Pro driver
-
IP Rating: IP65
-
Dimensions: 46.5" × 42.9" × 3.2"
-
Weight: 29.8 lb
-
Lifetime: L90 > 60,000 hours
-
Heat Output: 2201 BTU/h
-
Heat Output with Driver Remote: 2047 BTU/h
-
Warranty: 5 years
3.1 µmol/J High-Efficiency Performance
The major upgrade of the PhotonTek X 600W Pro 3.1 LED is its increased fixture efficacy of 3.1 µmol/J and total PPF of 1990 µmol/s. This lets the fixture deliver high-intensity light across a full 5' × 5' canopy, making it an excellent option for growers who want to maximize usable light while maintaining an efficient LED installation.
The combination of Samsung LM301H EVO and Osram 4.24 diodes provides a high-quality full spectrum designed for complete-cycle cultivation.
Detachable Driver & Modular Design
The PhotonTek driver can be removed from the fixture and installed remotely, providing greater flexibility when designing a grow room and helping relocate some heat away from the canopy.
Its six interchangeable magnetic LED bars also provide a modular design that simplifies installation, servicing and individual bar replacement.
Dimming & External Control
The included 0–10V dimmer offers five convenient output settings:
For advanced automation, you can connect the X 600W Pro 3.1 LED to the PhotonTek Digital Lighting Controller for programmable schedules, automated 1% dimming adjustments, temperature protection, and sunrise and sunset simulation.
What's Included
- 6 × PhotonTek 100W Pro 3.1 Full-Spectrum LED Bars
- 1 × PhotonTek 600W Pro 3.1 Frame
- 1 × PhotonTek 600W Pro Driver
- 1 × 0–10V light dimmer
- 1 × 120V power cable with NEMA 5-15P plug
- 1 × 240V power cable with NEMA 6-15P plug
- 2 × metal cable hangers
- 1 × user manual
The PhotonTek X 600W Pro 3.1 LED is an excellent choice for growers seeking exceptional efficiency, powerful full-spectrum output and uniform 5' × 5' canopy coverage. With 1990 µmol/s PPF, 3.1 µmol/J efficacy, advanced Samsung and Osram diodes, six modular magnetic LED bars, full dimming, IP65 protection and a detachable driver, it delivers professional-level lighting performance for demanding indoor cultivation environments.
