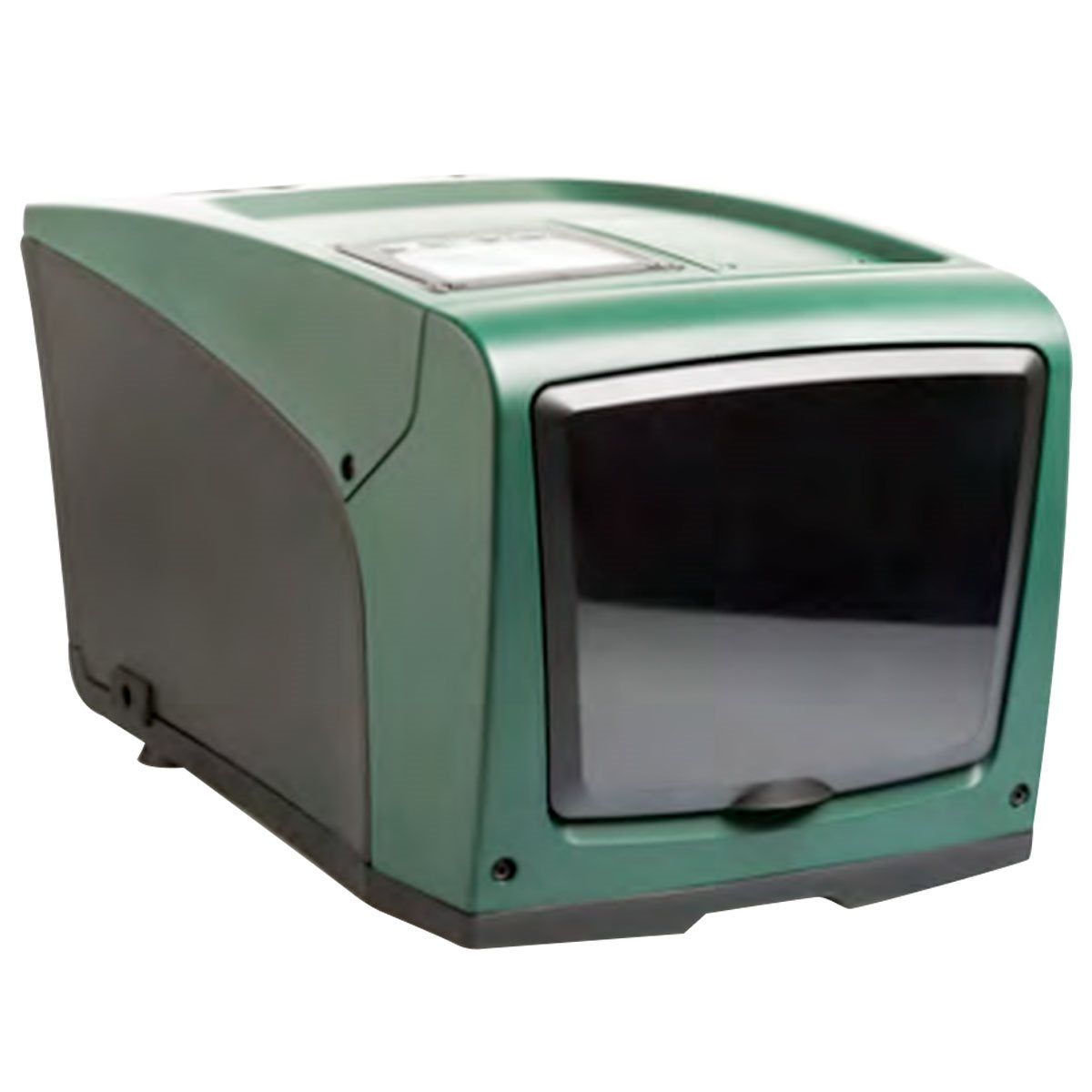

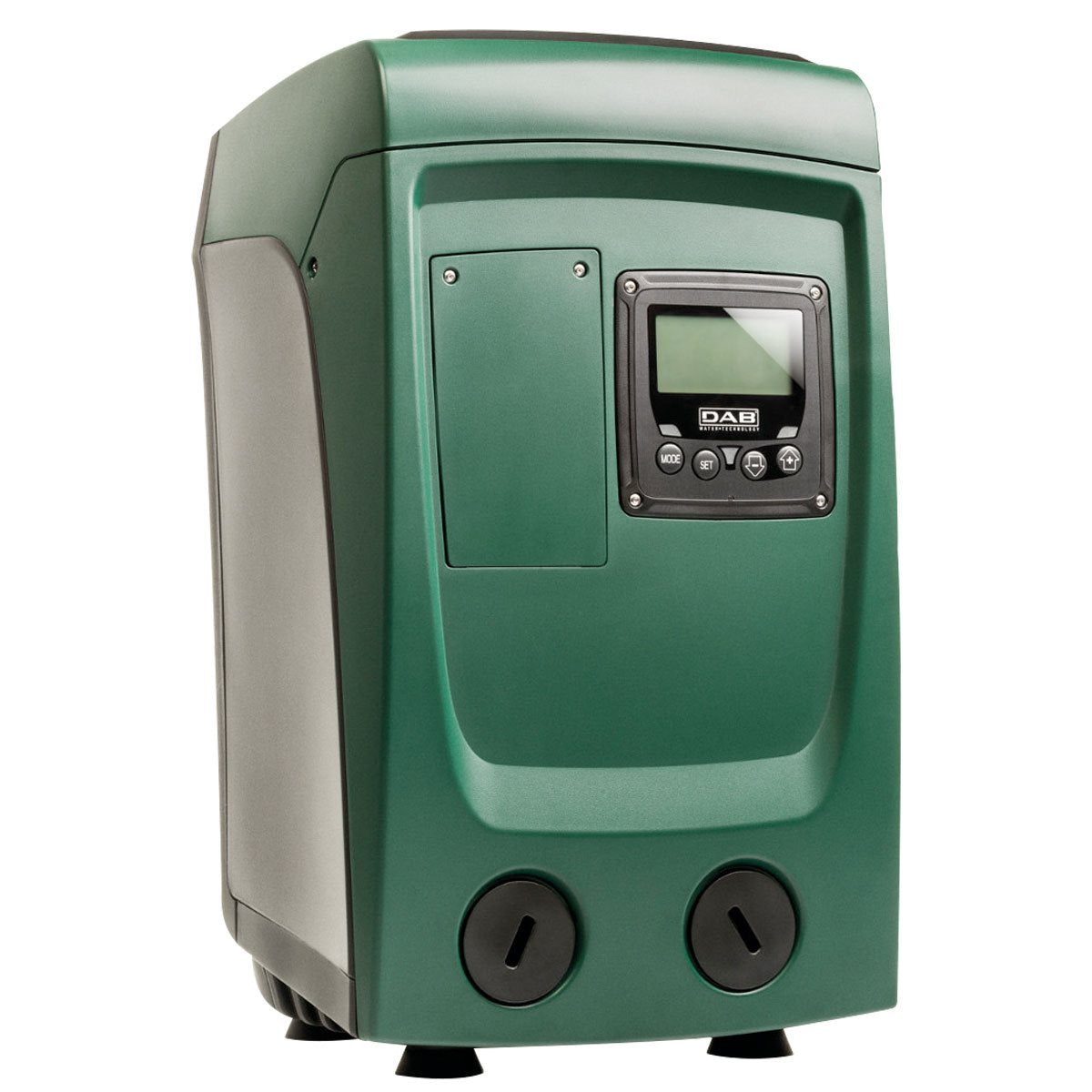

DAB Esybox Mini3 - Electronic Pressurisation System NPT - DV - G

Save 18%
DABSKU: HY-469927

Sale price$ 1,899.99 Regular price$ 2,322.95
🍃 Earn 1899 GrowClub points worth $19.0 off your next order
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

Thanks to the technological know-how developed during more than 40 years, DAB Pumps is proud to introduce to the market the Esybox mini 3, this is the most compact electronic pressurization system in the world.

Revolutionary, integrated Esybox mini 3 provides a new installation experience and maximum comfort during use. Esybox mini 3 benefits from the most advanced DAB technologies to ensure a consistent pressure based on actual needs, and therefore an optimization of energy consumption. Esybox mini 3 has a different appearance than any other booster set and is small and completely integrated.Once you install and use it, you realize that the real difference is in the comfort and performance.

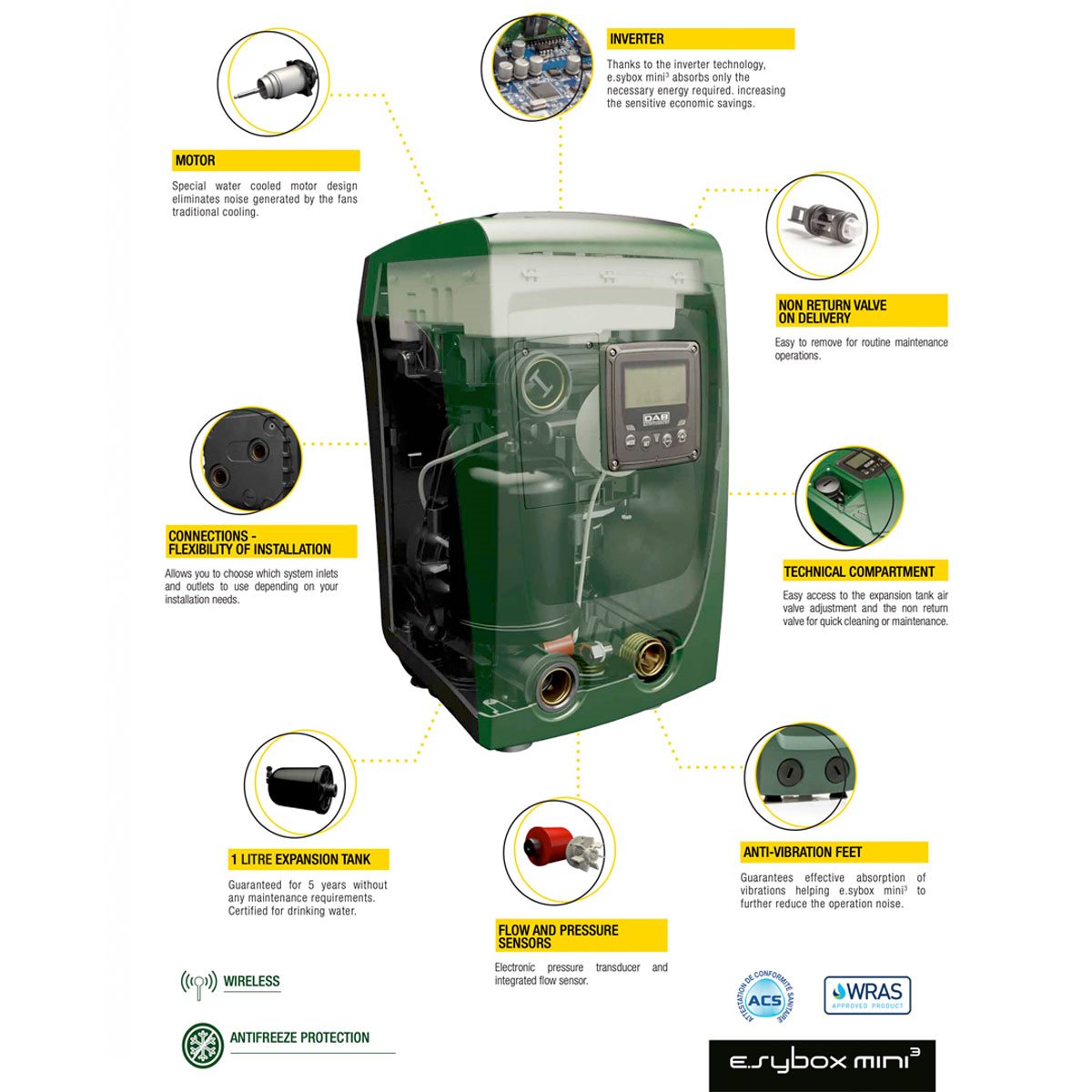

Esybox mini 3 uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption. The new 3-rotor model ensures further noise reduction and energy consumption. Managing the water pressure in your home has never been so simple and quiet. Esybox mini 3 is the DAB compact automatic booster system for the water supply of a single dwelling. Esybox mini 3 guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 79 psi) inside the system. Suitable for use with drinking water, in domestic systems, and in gardening applications. Esybox mini 3 does not require any additional components for its installation.

Specifications

  • Operating range: Capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)
  • Liquid quality requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral
  • Liquid temperature range: From 32°F to +95°F (0°C to +35°C) for domestic use - For other use: from 32°F to +104°F (0°C to +40°C)
  • Maximum suction depth: 26 ft (8 m)
  • Maximum ambient temperature: +122°F (+50°C)
  • Maximum pressure: 108 psi (7.5 Bar)
  • Maximum settable pressure: 79 psi (5.5 Bar)
  • Motor protection rating: IPX4
  • Insulation class: F
  • Installation: Horizontal or vertical fixed position
  • Approvals: CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps - UL Standard 778- 5th Edition- Motor operated water pumps - NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects - NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content

Dimensions & weight

  • Shipping dimensions: 11.81" L x 19.68" W x 12.62" H
  • Shipping weight: 32 lbs

 SPEC SHEET

 INSTRUCTION GUIDE

 INSTALLATION GUIDE

 CERTIFICATE OF COMPLIANCE

 BROCHURE
