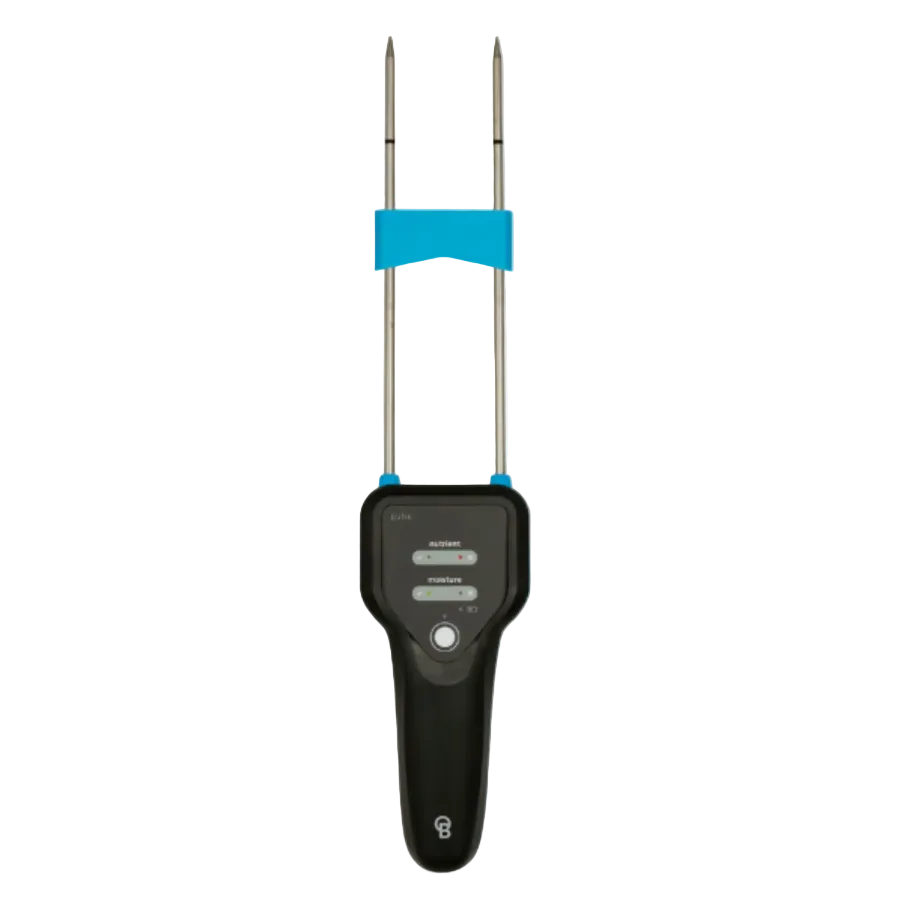

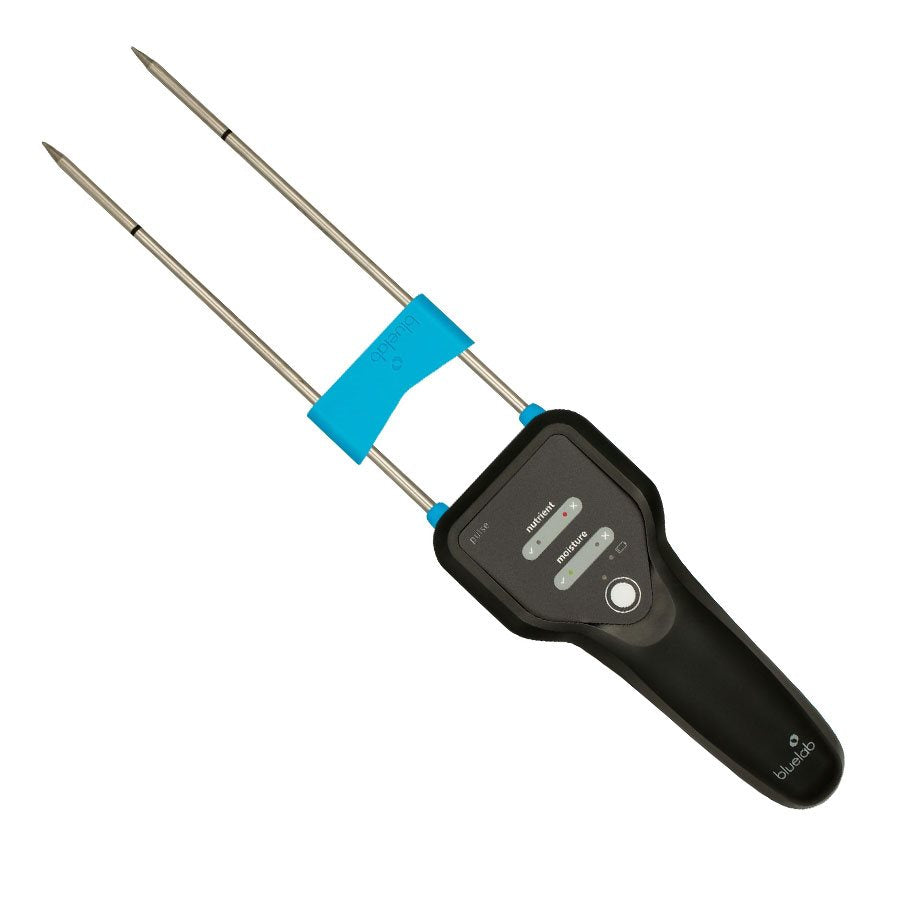

Bluelab Pulse Multimedia EC/MC Meter – Root Zone Moisture, EC and Temperature Meter

The Bluelab Pulse Multimedia EC/MC Meter is a portable digital testing instrument designed to measure moisture content (MC), electrical conductivity (EC), and temperature directly in the root zone. It helps growers evaluate growing media conditions, optimize irrigation schedules, and monitor nutrient availability without relying on frequent substrate extractions or runoff testing.

Equipped with two durable 200 mm (8-inch) stainless steel probes, the Bluelab Pulse provides fast measurements in compatible substrates, including coco coir and mixed growing media. Its Bluetooth connectivity allows users to view, record, and compare measurements through a compatible Bluelab mobile application.

Designed for indoor cultivation, commercial greenhouses, container growing, and professional horticulture, this multiparameter meter provides useful information for improving water management and maintaining more consistent growing conditions.

Monitor Moisture, Nutrient Conductivity and Root Zone Temperature

The Bluelab Pulse measures three important growing parameters directly within the substrate.

Moisture Content (MC)

The meter measures volumetric moisture content, expressed as a percentage of water within the growing medium.

Monitoring substrate moisture helps growers understand how quickly plants use available water and determine when irrigation is needed.

Electrical Conductivity (EC)

The Pulse measures the electrical conductivity of water held within the substrate's pores, providing an indication of dissolved nutrient concentration around the roots.

These measurements help growers assess feeding conditions and identify potential nutrient accumulation.

Root Zone Temperature

The integrated temperature measurement provides information about conditions surrounding the roots.

Tracking temperature changes helps growers identify environmental variations that may affect root activity and nutrient management.

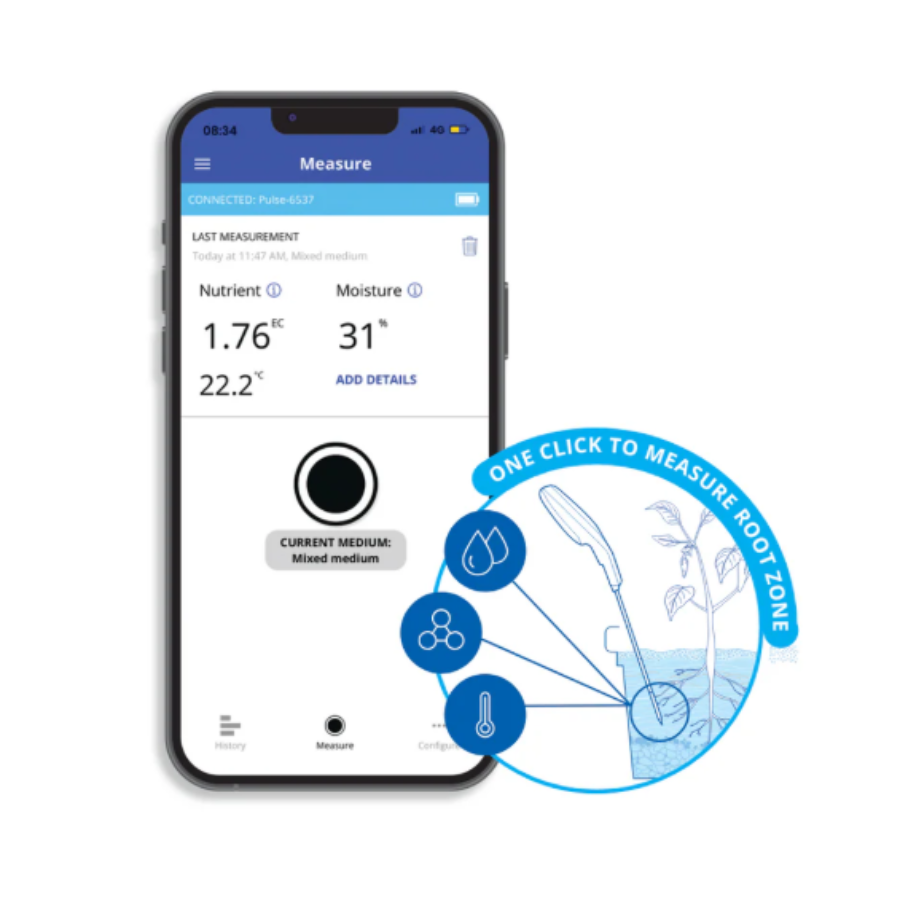

Bluetooth Connectivity and Measurement History

The Bluelab Pulse connects to a compatible smartphone through Bluetooth, allowing growers to record and analyze measurements using Bluelab's mobile software.

Its connected features include:

• Viewing moisture, EC, and temperature readings.
• Recording measurements from individual plants and growing areas.
• Comparing current readings with historical results.
• Creating reference ranges for moisture and nutrient conductivity.
• Reviewing changes in root zone conditions over time.
• Storing approximately 2,000 measurements and associated records.

The device also features LED indicators that provide quick feedback when measurements are inside or outside configured ranges.

Bluelab documentation references the Bluelab Pulse app, while newer support instructions also describe Pulse calibration using Edenic. Application availability and supported features should be checked for the current mobile platform.

Key Features and Benefits

• Three-in-One Testing: Measures moisture content, electrical conductivity, and temperature.

• Direct Root Zone Measurements: Provides substrate readings without routine extraction or slurry preparation.

• Long Stainless Steel Probes: Two robust 200 mm (8-inch) probes reach deeper into growing media.

• Fast Results: Delivers measurements in approximately 10 seconds.

• Bluetooth Connectivity: Transfers readings to compatible Bluelab mobile software.

• LED Status Indicators: Show whether results fall within configured target ranges.

• Measurement History: Supports comparison of growing conditions over time.

• Customizable Moisture Ranges: Allows growers to establish reference values for their substrates.

• Portable and Battery-Powered: Convenient for testing multiple plants and cultivation areas.

• Water-Resistant Construction: Suitable for regular use in greenhouse and growing environments.

Compatible Growing Media and Important Limitations

The Bluelab Pulse is designed for use in compatible growing media, including:

• Coco coir
• Peat-based potting mixes
• Mixed horticultural substrates
• Suitable bark and pumice blends
• Compatible nutrient solutions for conductivity testing

Important substrate limitations:

The meter is not recommended for growing media containing large air spaces, such as coarse perlite, or materials that may be permanently deformed by probe insertion, such as rockwool.

Reliable measurements also require adequate substrate moisture.

• Moisture measurements: at least 5% moisture content is recommended for dependable readings.

• EC measurements: the substrate requires more than approximately 20% moisture content for reliable conductivity measurements.

The manufacturer specifies a minimum container size of 2 litres (0.5 gallon).

How to Use the Bluelab Pulse Multimedia EC/MC Meter

Step 1 – Connect the Mobile Application

Install the compatible Bluelab mobile application and connect the Pulse meter using Bluetooth.

Step 2 – Select the Growing Medium

Configure the meter for the substrate being tested. Choosing the appropriate medium is important for obtaining representative measurements.

Step 3 – Insert the Probes

Insert both stainless steel probes at least 75 mm (3 inches) into the substrate, keeping them approximately 25 mm (1 inch) away from the container walls and bottom.

Use the included depth gauge to maintain consistent testing depth.

Step 4 – Take a Measurement

Press the measurement button on the meter or use the compatible application.

Review the moisture, conductivity, and temperature results along with the device's status indicators.

Step 5 – Compare and Record Results

Measure several plants and compare their root zone conditions. Use healthy, consistently performing plants to establish useful reference values for irrigation and nutrient management.

Technical Specifications

Measurement accuracy depends on the growing medium, moisture level, temperature, and operating conditions. The accuracy values shown reflect the manufacturer's specified test conditions.

What's Included?

The standard Bluelab Pulse Multimedia EC/MC Meter package includes:

• 1 × Bluelab Pulse Meter

• 1 × Depth Gauge and Probe Tip Cover

• 1 × Miniature Phillips Screwdriver

The meter operates using one AA alkaline battery.

Maintenance and Measurement Accuracy

Proper handling helps maintain reliable readings and protect the stainless steel probes.

After testing, remove substrate residues and clean the probes according to Bluelab's instructions. Avoid bending the probes or forcing them into compacted growing media.

Although the device is water-resistant, it should not be submerged or cleaned using high-pressure water.

For more accurate moisture comparisons, select the correct substrate profile in the app and use consistent insertion depths and measuring locations.

Growers can also establish custom moisture reference points based on the water-holding capacity of their growing medium.

Frequently Asked Questions About the Bluelab Pulse Multimedia EC/MC Meter

What does the Bluelab Pulse Multimedia EC/MC Meter measure?

The Bluelab Pulse measures substrate moisture content (MC), electrical conductivity (EC), and root zone temperature. These readings help growers evaluate irrigation and nutrient conditions.

Does the Bluelab Pulse measure soil pH?

No. The Pulse does not measure pH. A separate soil pH meter, such as the Bluelab Soil pH Pen, is required for direct substrate pH testing.

Can I use the Bluelab Pulse in coco coir?

Yes. Coco coir is a compatible growing media. The meter should be configured for the correct substrate type before testing.

Can I use the Bluelab Pulse in rockwool or perlite?

The manufacturer does not recommend the Pulse for rockwool, which may deform when the probes are inserted, or substrates with large air spaces, such as coarse perlite.

Does the Bluelab Pulse require a smartphone?

A compatible smartphone application is used for configuration, detailed measurements, and historical data. Once configured, the device can provide LED status feedback and store readings for later synchronization.

Why is moisture content important for EC measurements?

The Pulse measures conductivity associated with water in the substrate's pores. When moisture content falls below approximately 20%, there may not be enough water for reliable EC measurements.

Can the Bluelab Pulse help improve irrigation scheduling?

Yes. By comparing moisture readings over time, growers can identify drying patterns and establish more consistent irrigation intervals suited to their plants and growing media.
