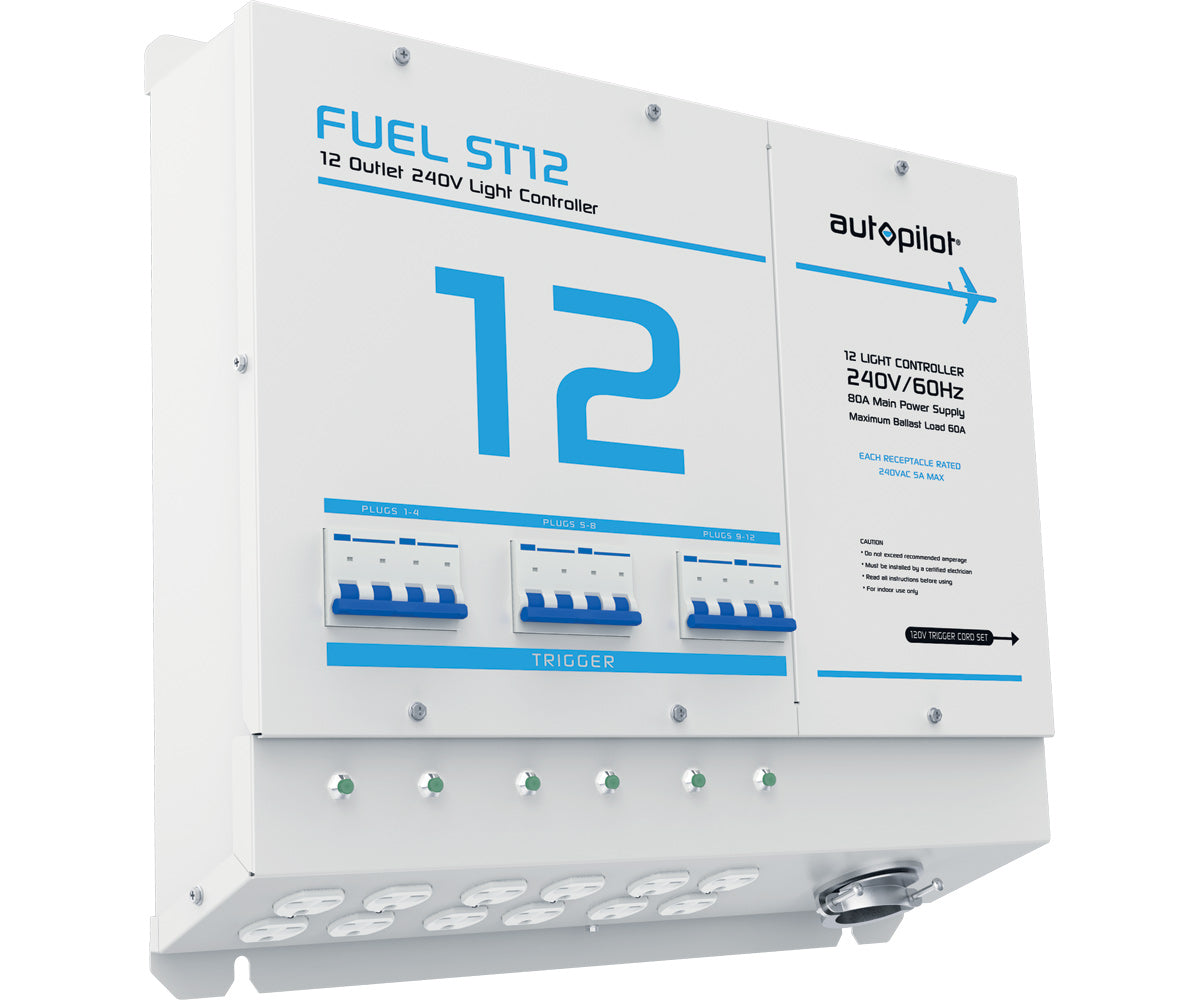

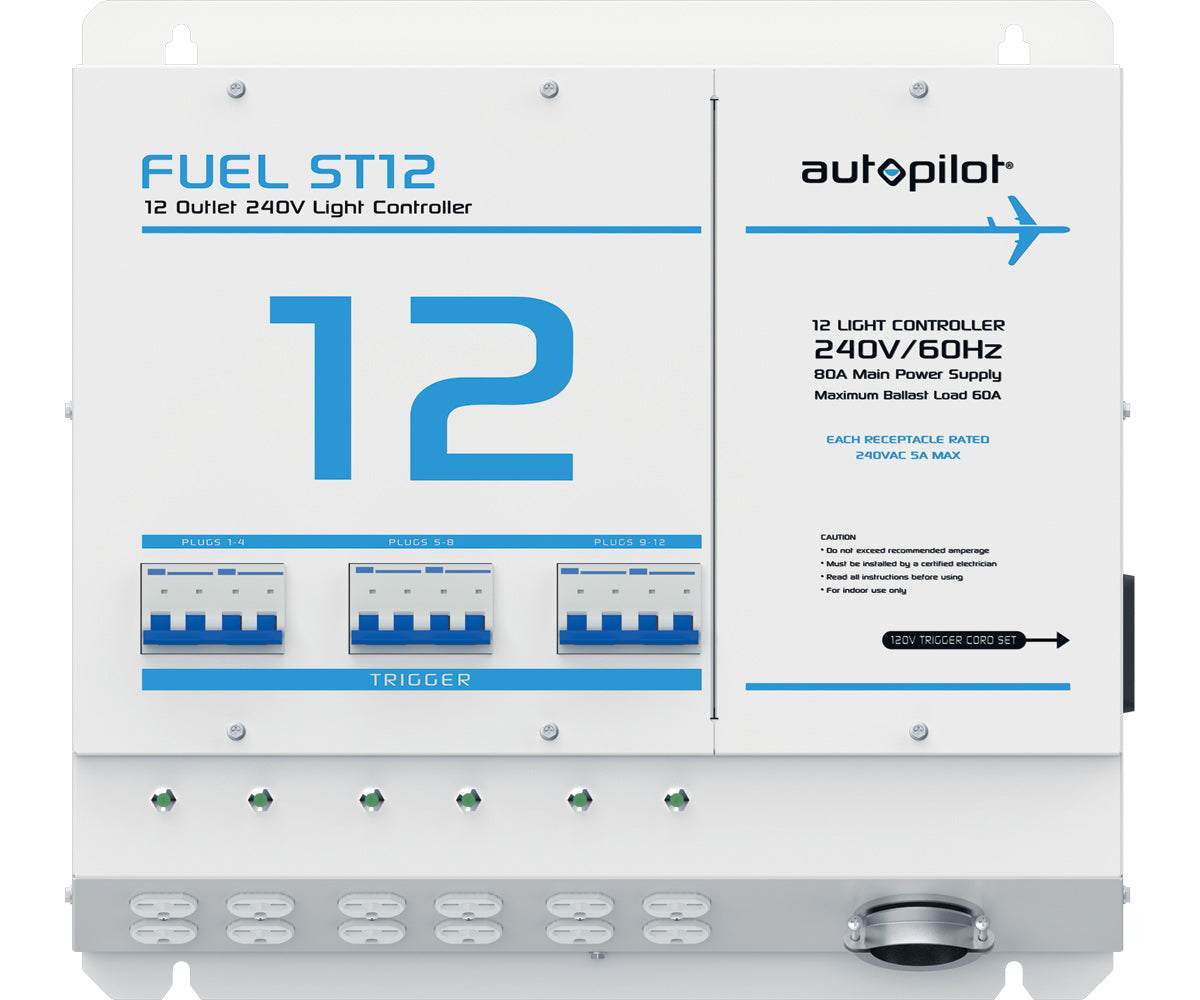

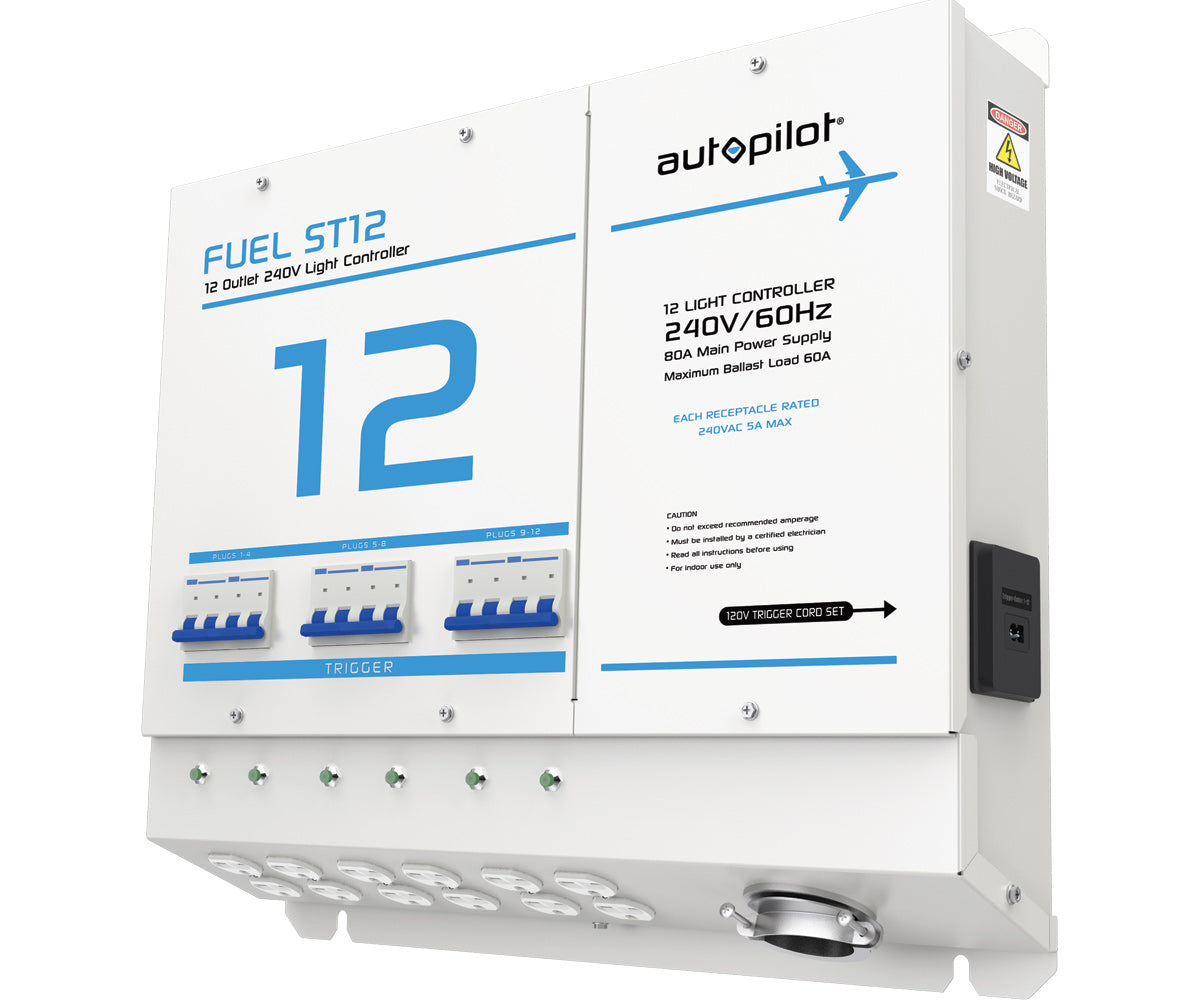

Autopilot FUEL ST12 Lighting Controller, 12 Outlet 240V
The Autopilot FUEL ST12 Lighting Controller, 12 Outlet 240V is a commercial-grade lighting controller designed to operate up to 12 grow lights or ballasts from a single centralized control point.
It features 12 industrial-grade 240 V NEMA 6-15 outlets, organized into three banks of four outlets. Each bank uses a 30-second staggered start delay to help reduce electrical inrush when multiple lighting fixtures are switched on.
All 12 outlets are controlled through a single 120 V trigger cable, allowing the ST12 to work with a compatible timer or environmental controller.
Key Benefits
-
Controls up to 12 lighting fixtures or ballasts.
-
12 × 240 V NEMA 6-15 outlets.
- Three banks of four outlets.
-
30-second staggered start delay between banks.
- Helps reduce startup electrical load.
-
Single 120 V trigger cable controls all outlets.
-
80 A main power input.
-
Maximum ballast load: 60 A.
-
Maximum output: 12,000 W at 240 V.
-
Each receptacle rated up to 240 V / 5 A.
- Industrial-grade circuit breakers.
- Commercial-grade construction.
- ETL listed.
- Designed for large indoor horticultural lighting installations.
Professional 12-Light Control
The FUEL ST12 centralizes control of up to 12 compatible 240 V lighting fixtures.
Instead of switching each light independently, all fixtures can be activated through one compatible 120 V timer or environmental-controller trigger.
This makes the ST12 particularly useful for larger grow rooms where synchronized lighting control is required.
Three Staggered Lighting Banks
The 12 outlets are divided into three banks of four lights.
Each bank activates with a 30-second delay, reducing the electrical surge that can occur when multiple high-powered fixtures start simultaneously.
This staged startup provides a more controlled approach to powering large lighting systems.

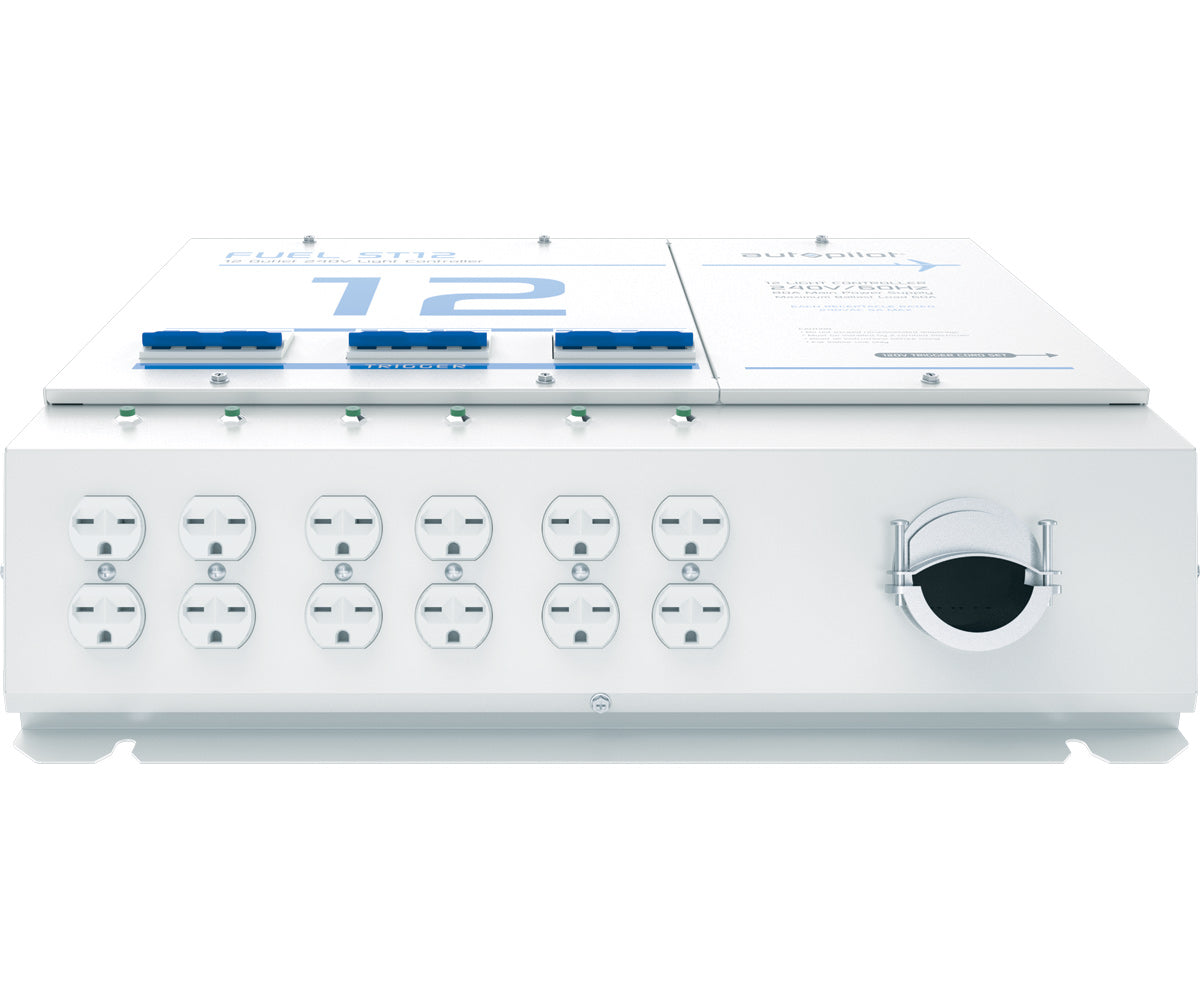

240 V NEMA 6-15 Outlets
Each of the 12 receptacles uses an industrial-grade NEMA 6-15 configuration.
Each outlet is rated for:
- 240 V
-
Maximum 5 A per receptacle
-
Up to approximately 1,000 W per outlet
The system provides a maximum total output of 12,000 W at 240 V.
120 V Trigger Control
The FUEL ST12 uses a single 120 V trigger cable to control all 12 lighting outlets.
The trigger cable can be connected to a compatible timer or environmental controller, allowing the lighting system to follow a programmed photoperiod or another compatible switching schedule.
Heavy-Duty Electrical Capacity
The controller requires an 80 A main electrical supply and supports a maximum ballast load of 60 A.
Because of the high-current electrical connection required, the ST12 should be installed by a qualified electrical professional according to applicable electrical codes.
Ideal Applications
- Large indoor grow rooms
- Commercial horticulture
- Controlled-environment agriculture
- Hydroponic facilities
- Multi-light installations
- HID lighting systems
- Compatible 240 V grow lights
- Centralized lighting control
Product Specifications
| Specification |
Details |
| Brand |
Autopilot |
| Product |
FUEL ST12 Lighting Controller |
| Controlled Outlets |
12 |
| Outlet Voltage |
240 V |
| Receptacle Type |
NEMA 6-15 |
| Outlet Rating |
Up to 5 A per outlet |
| Outlet Configuration |
3 banks of 4 |
| Start Delay |
30 seconds between banks |
| Trigger Voltage |
120 V AC |
| Main Supply |
80 A |
| Maximum Ballast Load |
60 A |
| Maximum Wattage |
12,000 W at 240 V |
| Maximum per Outlet |
Approx. 1,000 W |
| Frequency |
60 Hz |
| Operating Temperature |
40–125 °F (4.5–52 °C) |
| Dimensions |
Approx. 21 × 5.2 × 19.79 in (53.3 × 13.2 × 50.3 cm) |
| Weight |
Approx. 27 lb (12.2 kg) |
| Certification |
ETL listed |
| Primary Use |
Centralized 240 V lighting control |
How to Use the Autopilot FUEL ST12
Have the controller installed by a qualified electrical professional using the appropriate 240 V / 80 A electrical supply and wiring specified for the installation.
Connect compatible 240 V lighting equipment to the 12 NEMA 6-15 outlets.
Connect the 120 V trigger cable to a compatible timer or environmental controller.
When the trigger circuit is activated, the ST12 powers the three lighting banks sequentially, with approximately 30 seconds between each bank.
Frequently Asked Questions
How many lights can the FUEL ST12 control?
It can control up to 12 compatible 240 V lighting fixtures or ballasts.
What type of outlets does it use?
It uses 240 V NEMA 6-15 receptacles.
Why are the outlets divided into three banks?
The three-bank design allows a 30-second staggered startup, helping reduce electrical inrush when multiple lights are switched on.
What is the maximum total lighting load?
The controller supports up to 60 A of ballast load and approximately 12,000 W at 240 V.
How is the lighting controller triggered?
All outlets are controlled by a single 120 V trigger cable connected to a compatible timer or controller.
Does it require professional installation?
Yes. Because the controller requires an 80 A main electrical supply, installation should be performed by a qualified electrical professional.
