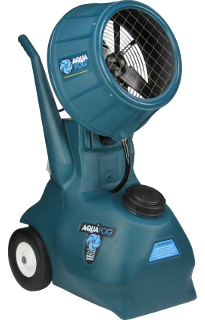

Aquafog XE-HRSM-50Hz Mobile Fogging Machine

The Aquafog XE-HRSM-50Hz Mobile Fogging Machine is a professional high-output mobile centrifugal fogging system designed for industrial humidification, evaporative cooling, greenhouse environmental control, dust suppression, horticultural applications, and compatible chemical fogging.

Built around Aquafog’s powerful XE centrifugal atomizer, this international 50 Hz model combines an 18 US gal / 68 L integrated tank, approximately 2,800 CFM airflow, adjustable fog output, and a rugged wheeled chassis for reliable portable environmental control.

Unlike conventional high-pressure misting systems, the HRSM uses nozzle-free centrifugal atomization, helping eliminate clog-prone nozzles and high-pressure pumps while producing fine droplets across a wide range of operating outputs.

230 V / 50 Hz International Configuration

The XE-HRSM-50Hz is designed for installations requiring an international 230 V / 50 Hz single-phase electrical configuration.

Main electrical specifications include:

• 230 V / 50 Hz
• Single phase
• 1/3 HP motor
• Approximately 4.4 A
• Approximately 2,800 CFM airflow

Jaybird currently lists the manufacturer SKU as XE-HRSM-50, corresponding to the 230 V / 50 Hz international HRSM configuration.

18-Gallon Mobile Tank

The HRSM includes a large 18 US gal / 68 L integrated water tank, allowing the system to operate as a self-contained mobile fogger.

Its rugged wheeled platform makes it easy to move between greenhouse zones, warehouses, production areas, agricultural buildings, or other locations requiring temporary or flexible humidification and cooling.

The tank system includes:

• Internal feed pump
• Automatic float valve
• Large tank-access lid
• In-line strainer
• Standard garden-hose connection
• Illuminated On/Off switch

The internal float valve automatically maintains the proper tank level when connected to a water supply.

Fogging Output Up to 41 L/h

The 50 Hz XE HRSM delivers high-volume fog production for demanding professional applications.

Performance includes:

• Net fogging output up to approximately 41 L/h
• Approximately 2,800 CFM airflow
• Fog propulsion of approximately 30–35 ft / 9.1–10.5 m
• Cooling capability of approximately 87,500 BTU/h
• Approx. 5–10 micron particles at low output
• Approx. 20 microns at medium output
• Approx. 25 microns at high output

This adjustable output allows operators to tailor the fog to the application, from finer humidification fog to heavier evaporative-cooling output.

Simple 1/4-Turn Flow Control

A manual 1/4-turn ball valve controls water flow, providing simple adjustment of the fogging rate.

Lower feed rates generally produce a finer, drier fog, while higher flow settings increase water output for greater humidification, cooling, or treatment volume.

This straightforward mechanical control makes the HRSM easy to operate without complex programming.

Four-Position Adjustable Fogging Head

The fogging head can be positioned at four angles:

• 0°
• 15°
• 30°
• 45°

Adjusting the head angle lets operators direct fog according to room layout, airflow patterns, crop configuration, or cooling requirements.

Tilting the head upward can also increase airborne travel time and improve evaporation before droplets reach surfaces.

Nozzle-Free Centrifugal Atomization

Aquafog’s centrifugal technology uses a rotating atomizing blade, accelerated airflow, and atomizing pins to break water into fine particles.

Because the system does not rely on conventional small misting nozzles, it helps reduce maintenance associated with nozzle clogging and high-pressure pumping equipment.

Particle size is controlled largely by the feed rate, giving operators flexibility across multiple environmental-control applications.

Used With / Compatible With

The Aquafog XE-HRSM-50Hz Mobile Fogging Machine works with compatible Aquafog controls, monitoring devices, circulation equipment, and automation systems.

Compatible products and equipment include:

• Aquafog Thermostat Control TH-180 – 100–250 V, 50/60 Hz
• Aquafog Temperature-Humidity Meter CP-205
• Aquafog Temperature-Humidity Meter with Dew Point CP-301
• Aquafog RSM-AUTO-OFF Smart Controller – when configured for the applicable HRSM voltage
• Compatible 230 V / 50 Hz humidistat controls
• Compatible external timers rated for 230 V / 50 Hz
• Facility automation or environmental-control systems rated for the electrical load
• Compatible HAF circulation fans for improved fog distribution

The TH-180 is especially useful when using the HRSM for evaporative cooling because it supports 100–250 V and 50/60 Hz operation. The CP-205 and CP-301 can monitor temperature and humidity conditions during operation.

Important: Aquafog controls such as DH-120, H-120, and TC-180 listed for the standard HRSM are configured for around 115 V operation and should not be connected directly to the XE-HRSM-50Hz unless an appropriately voltage-rated version is used.

Optional Automatic Low-Level Shutoff

The HRSM can also be equipped with Aquafog’s RSM-AUTO-OFF Smart Controller.

This optional system can automatically shut the unit down when the tank reaches a low liquid level, helping prevent the internal pump from operating dry.

It also includes a fan override switch for added operational flexibility.

For the 50 Hz model, confirm that the control configuration is correctly rated for the unit’s electrical supply before installation.

Ideal Applications

The Aquafog XE-HRSM-50Hz is well suited for:

• Industrial humidification
• Greenhouse humidity control
• Horticultural facilities
• Plant propagation areas
• Evaporative cooling
• Manufacturing facilities
• Warehouses
• Dust suppression
• Static-control applications
• Wood, lumber, and paper facilities
• Textile humidity control
• Agricultural buildings
• Mushroom-growing environments
• Concrete-curing applications
• Compatible chemical fogging
• Indoor and outdoor environmental conditioning

Jaybird identifies the HRSM as its standard mobile XE platform for portable humidification, evaporative cooling, and general fogging applications.

Key Features

• Professional mobile centrifugal fogging machine
• International 50 Hz configuration
• Manufacturer model XE-HRSM-50
• 230 V / 50 Hz / single-phase
• 1/3 HP motor
• Approximately 4.4 A
• Approximately 2,800 CFM airflow
• Net fogging output up to approximately 41 L/h
• Approximately 30–35 ft / 9.1–10.5 m fog propulsion
• Approximately 87,500 BTU/h cooling capability
• Fine particle range of approximately 5–25 microns
• 18 US gal / 68 L tank
• Nozzle-free centrifugal atomization
• Manual 1/4-turn flow-control valve
• Internal feed pump
• Automatic float valve
• In-line strainer
• Four-position fogging head
• Rugged wheeled mobile chassis
• Approx. 70 dB(A) at 10 ft
• Indoor/outdoor rated
• Up to 100% RH
• UV-stabilized and impact-resistant construction
• 300 Series stainless-steel hardware
• Manufactured in the USA

Specifications

High-Output Portable Humidification and Cooling

The Aquafog XE-HRSM-50Hz Mobile Fogging Machine combines high-output centrifugal atomization, a large 68 L mobile tank, approximately 2,800 CFM airflow, and adjustable fog production for professional environmental-control applications.

Its rugged mobile construction, simple flow adjustment, and compatibility with properly rated Aquafog controls make it an excellent choice for facilities requiring flexible 230 V / 50 Hz humidification, evaporative cooling, and high-volume fogging.
