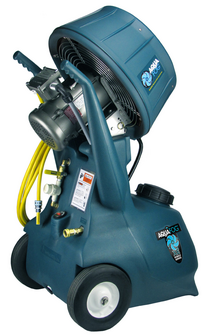

Aquafog XE-HRSM-2000-EXP Mobile Fan

The Aquafog XE-HRSM-2000-EXP Mobile Fan is a powerful, self-contained mobile fogging system engineered for humidification, evaporative cooling, dust suppression, and specialized fogging applications in classified or explosion-prone environments.

Built around Aquafog’s high-output XE centrifugal atomizer, the XE-HRSM-2000-EXP combines strong air movement, fine fog production, an integrated water tank, and an explosion-proof hazardous-duty motor in a rugged wheeled platform. It is an excellent solution for industrial facilities, agricultural environments, greenhouses, processing areas, mines, and other locations where standard electrical equipment may not be suitable.

High-Output Mobile Fogging Performance

The Aquafog XE-HRSM-2000-EXP Mobile Fan delivers up to 13.5 gallons per hour (GPH) of fog while producing about 3,000 CFM of airflow.

Its nozzle-free centrifugal atomization technology produces fine airborne droplets without using conventional high-pressure pumps or clog-prone misting nozzles. This helps simplify maintenance while delivering powerful fog distribution throughout large commercial and industrial spaces.

With an evaporative cooling capacity of up to 109,350 BTU/hr, the system suits applications requiring high-volume humidification and cooling.

Integrated 18-Gallon Mobile Tank

The XE-HRSM-2000-EXP includes a large 18-gallon US / 68 L integrated supply tank, allowing the system to operate as a self-contained mobile fogging unit.

A built-in float valve automatically helps maintain the proper water level when connected to a water supply. The unit also includes a large tank access lid and garden hose connection for convenient filling, inspection, and maintenance.

Mounted on a rugged wheeled chassis, the system can be repositioned throughout a facility wherever fogging, cooling, or humidification is required.

Adjustable 4-Position Fogging Head

The pivoting fogging head can be positioned at:

• 0°
• 15°
• 30°
• 45°

Directing the fog upward gives droplets more time to evaporate before reaching surrounding surfaces, improving humidification and evaporative cooling performance.

The system provides a fog propulsion distance of approximately 30–35 ft / 9.1–10.5 m, making it suitable for large areas requiring effective fog distribution.

Adjustable Manual Flow Control

A 1/4-turn ball valve lets operators adjust fogging output to the application.

Lower flow settings generally produce finer, drier fog, while higher flow settings provide greater moisture output for cooling and high-capacity humidification applications.

The system also includes:

• Internal feed pump
• In-line strainer
• Internal float valve
• Automatic water-level control
• Large tank access lid
• Garden hose connection

To meet explosion-proof requirements, the XE-HRSM-2000-EXP does not include an integrated On/Off power switch.

Explosion-Proof Design for Hazardous Locations

The Aquafog XE-HRSM-2000-EXP Mobile Fan has an explosion-proof motor designed for use in approved hazardous locations.

The motor is rated for:

• Class I, Group D
• Class II, Groups F & G

These classifications cover certain environments where volatile gases, vapours, or combustible dust may be present.

Typical applications include:

• Hazardous-location humidification
• Industrial evaporative cooling
• Dust suppression
• Industrial processing facilities
• Greenhouses and commercial horticulture
• Agricultural facilities
• Mines and underground mines
• Military hangars
• Aerospace facilities
• Classified industrial environments

Use properly rated explosion-proof electrical connections when installing the unit in a hazardous location.

Key Features

• Explosion-proof hazardous-duty motor
• Maximum fogging output up to 13.5 GPH
• Approximately 3,000 CFM airflow
• Up to 109,350 BTU/hr cooling capacity
• Integrated 18-gallon / 68 L tank
• Nozzle-free centrifugal atomization
• Four-position pivoting fogging head
• Fog projection approximately 30–35 ft / 9.1–10.5 m
• Manual 1/4-turn flow control valve
• Internal float valve
• Automatic water-level control
• In-line strainer
• Garden hose connection
• Large tank access lid
• Rugged mobile wheeled chassis
• 304 stainless-steel hardware and components
• UV-stabilized, impact-resistant construction
• 25 ft power cord and fittings
• Designed for indoor and outdoor applications
• Manufactured in the USA

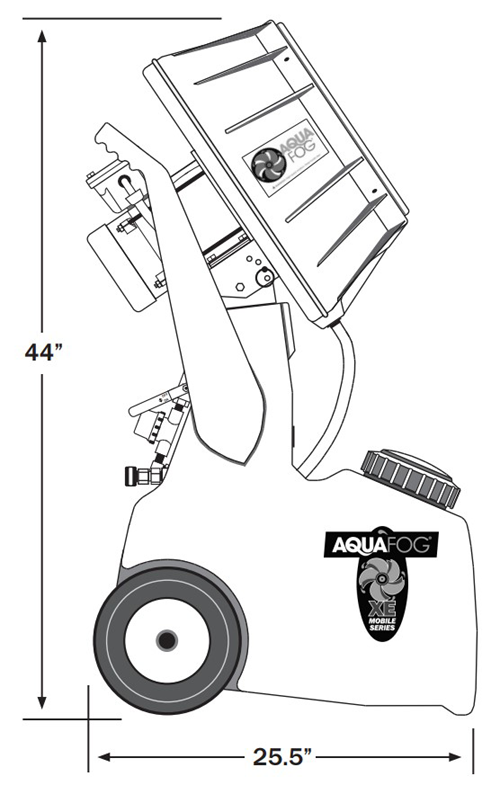

Specifications

Available Accessories

Several optional accessories are available for the Aquafog XE-HRSM-2000-EXP Mobile Fan.

Hazardous Duty Plug – 125V

The optional 125V Hazardous Duty Plug provides a suitable connection for mobile hazardous-duty applications.

• NEMA 5-20P configuration
• UL and CSA approved
• Designed for hazardous-duty applications
• Must be connected only to a properly rated hazardous-duty receptacle

All electrical components used in a classified environment must meet the appropriate requirements for that installation.

Temperature-Humidity Meter

The optional Temperature-Humidity Meter provides real-time monitoring of ambient temperature and relative humidity.

• Temperature range: 32°F to 122°F / 0°C to 50°C
• Temperature accuracy: ±1.8°F / ±1°C
• Humidity range: 20% to 95% RH
• Humidity accuracy: ±3% RH
• Approximate response time: 60 seconds
• Dual LCD temperature and humidity display
• Displays temperature in °F or °C
• CR2032 lithium battery included

This accessory is ideal for monitoring greenhouse, horticultural, agricultural, and industrial environments where fogging equipment is operating.

Temperature-Humidity Meter with Dew Point

For demanding high-humidity environments, the optional Temperature-Humidity Meter with Dew Point provides temperature, relative humidity, and dew-point monitoring.

• Temperature range: -4°F to 122°F / -20°C to 50°C
• Temperature accuracy: ±1.8°F / ±1°C
• Humidity range: 0% to 100% RH
• Humidity accuracy: ±3% RH
• Response time: approximately 60 seconds
• Dual LCD display
• Displays °F or °C
• Two AAA batteries included

This meter is especially useful for applications where monitoring condensation risk and very high relative humidity levels is important.

Optional Stainless-Steel Plumbing

The XE-HRSM-2000-EXP-SST version is available with an upgraded stainless-steel plumbing system.

This factory-installed option replaces standard brass fittings with 304 stainless-steel components and is recommended for applications involving corrosive solutions, oxidizers, or sanitation and sterilization chemicals.

Powerful Mobile Fogging for Demanding Environments

The Aquafog XE-HRSM-2000-EXP Mobile Fan combines industrial-scale fogging performance, powerful airflow, mobility, and explosion-proof construction in one rugged system.

Whether used for humidification, evaporative cooling, dust suppression, or specialized industrial fogging, it provides a dependable environmental-control solution for facilities requiring high-output performance in classified or hazardous locations.
