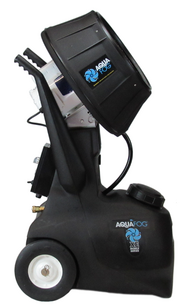

Aquafog Jaybird XE-CRSM (HEAVY AND BULK)

Models Available:

  • Domestic: XE-CRSM-2000 (115V 60Hz 1Ph)
  • Foreign: XE-CRSM-50Hz (220-250V 50Hz 1Ph)

Mobile ULV Pesticide/Chemical Fogger

The CRSM is a powerful, nozzle-free atomizer for the dispersion of liquid or wettable powder chemical solutions. Common uses include pesticide and fungicide treatment in greenhouses. CRSM has 2 operational modes: [ON] for manual or automated operation when used with the timer control. [Auto Shut-Off mode] will automatically turn off the unit when tank becomes nearly empty.

This durable fogger has powerful propulsion with a pivotable fogging head. Fogging output is controlled through a special flow restrictor assembly which provides for advanced (controllable) flow ranges. Net high flow output @ around 6.5 GPH, (low) flow output @ about 2.25 GPH. The feed pump provides agitation to help keep chemical solutions properly mixed during operation.

CRSM produces billions of tiny, fog-like particles combined with powerful airflow. The “ULV” method is when fumigation of the entire (interior) air-space is the goal; to achieve complete and even coverage to all surface areas. Unmanned operations can reach up to 30,000 square feet with the aid of circulation (HAF) fans.

  • Coverages up to 30,000 sq. ft.
  • 2 Operational Modes w/ Auto Shut-Off
  • High and Low (Restrictor) Flow Ranges
  • 18 Gallon Tank w/ Float Valve
  • Arrives Assembled w/ Timer Control

ULV Method

ULV (Ultra Low Volume) refers to the amount of water needed to mix and disperse chemical solution evenly. The ULV method differs significantly from those that employ typical sprayers, and which use small water droplets to carry the chemical solution to its intended source. Such spraying processes require much more water to treat an equal area in comparison to ULV.

The CRSM's atomization process produces billions of tiny fog particles laced with chemical. These fog particles are propelled with great force and most of the water content evaporates quickly, leaving behind small, sticky particles of pure chemical. These airborne micro-sized particles of residue float in all directions until eventually making contact with and coating most surfaces evenly.

Standard Controls and Features

The CRSM has rain-tight NEMA 3X switches, connections and control box. The CRSM’s flow rate can be controlled or calibrated between 1 and 8.5 GPH, netting about 1 to 7 GPH fogging output capability.

  • 2 Operational Mode (smart) Control Box
  • Fan Override Toggle Switch
  • High/ Low Flow Restrictor Valve
  • In-line Strainer with Clear Cap
  • Hose Connection w/ Float Valve
  • 18’ Power Cord

Jaybird’s Rear-Feed Blade

Our exclusive blade design is a significant product development, enhancing reliability and performance.

ABB Wash-Down-Duty Motor

  • Industrial grade
  • For use around water

Intermatic® Timer Control

The CRSM timer is provided to automate the system.

  • Rain-tight NEMA 3
  • Pre-wired with Male & Female Cords

Internal Agitation Pump

The CRSM has a circulation system within it’s tank to help keep chemical solutions properly mixed during fogging operations. An important feature when using solutions that tend to separate quickly.

  • Control Pump Independently Using The Fan's Override Switch
  • Maintains Mixture of Chemical Solutions

Metering Pump Inlet

The CRSM can also connect to a metering pump. Here, concentrated chemical mixes with fresh water on the way to the fogging head. Calibrate the water flow-rate to match with the chemical’s dilution ratio.

  • 3/8” O.D. Inlet Connection
  • 1/4” NPT Plug

Specifications:

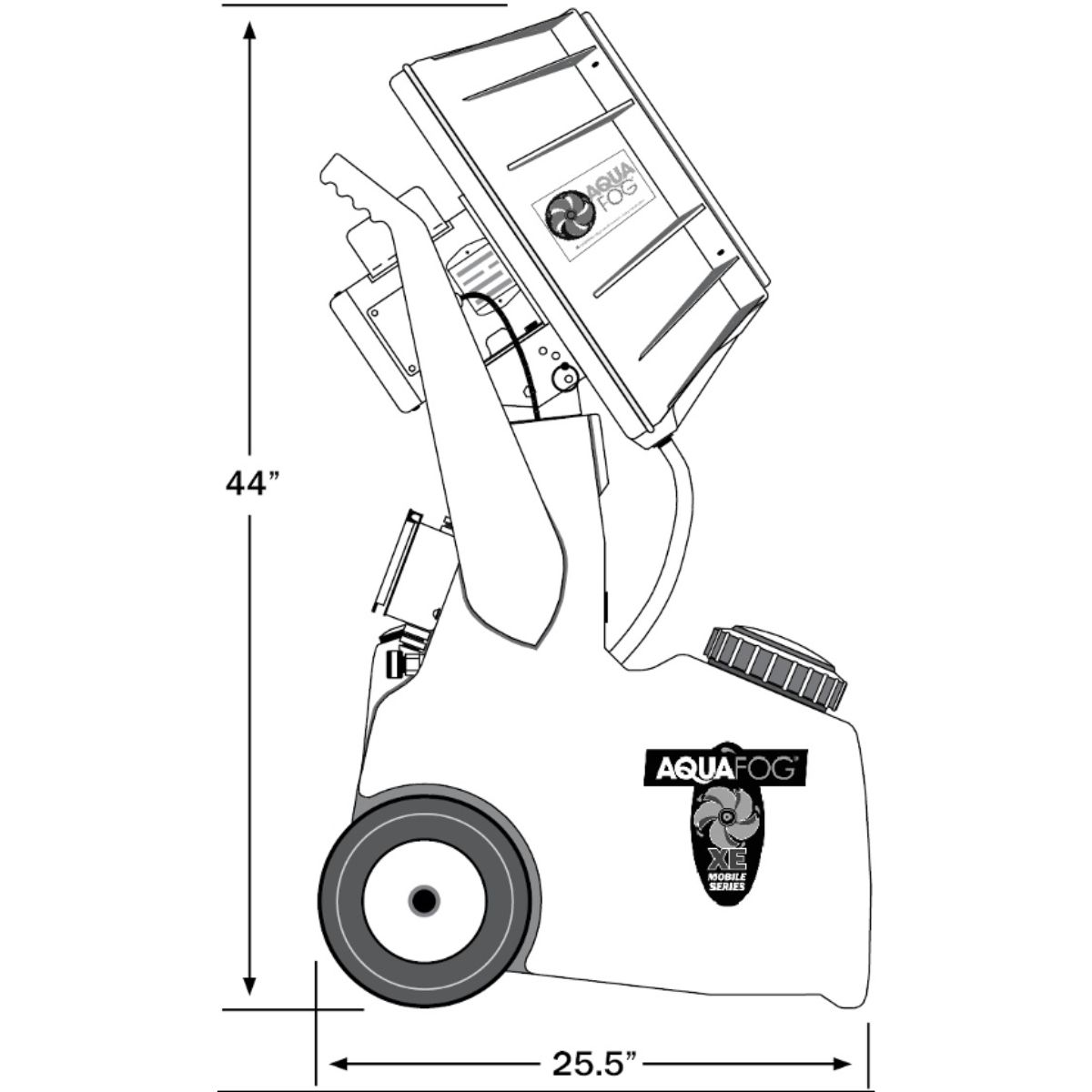

Unit Dimensions: Width 21"/ 53 cm
Depth 25.5"/ 65 cm
Height 44"/ 112 cm
Approximate Unit Weight: 85 lbs / 38.5 kg
Shipping Weight: 136 lbs / 61.7 kg
Shipping Dimensions: 46"x24"x32" (LxWxH)
Fogging Head Pivot Angle: 0°, 15°, 30°, 45°
Motor/Electrical: 1/2 hp - 7.8 amps @ 115V (60Hz)
1/3 hp - 4.4 amps @ 240V (50Hz)
Noise @ 10 ft Distance: 72 dB(A) - 60Hz
70 dB(A) - 50Hz
Average Particle Size: 5-10 microns @ low output
10-20 microns @ high output
Output Range: 1 - 8.5 GPH (60Hz)
2.8 - 28.4 LPH (50Hz)
Tank Capacity: 18 US gal / 68 L
CFM: 3,000 - 60Hz
2,800 - 50Hz
Operation: Continuous duty capacity
304 Stainless Steel: All hardware, sheet steel and wire goods
Environment: Endure temperatures from 33° to 160° F
Indoors / outdoors
Humidity to 100% RH
UV stabilized & impact resistant
