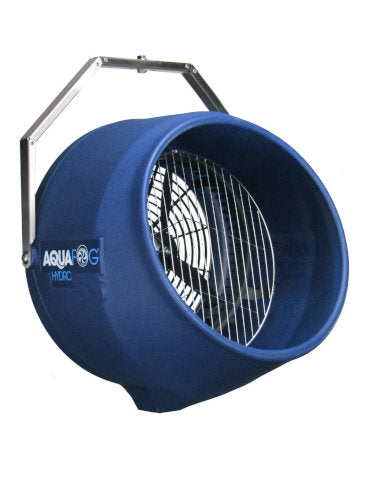

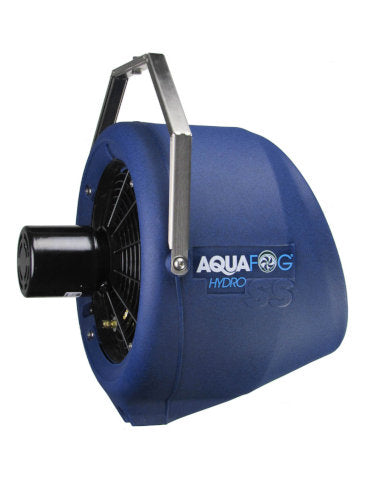

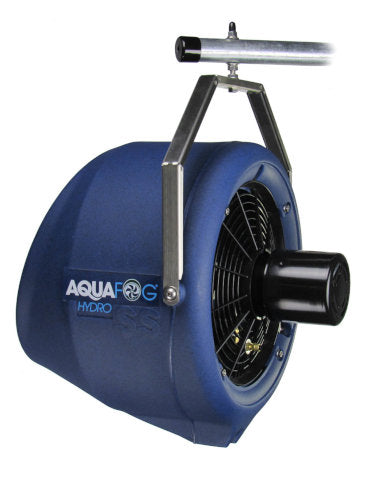

Aquafog Hydro SS 700-DF Fan

Save 16%
JayBirdSKU: JB-SS-700-DF
$ 1,272.95 $ 1,516.99
🍃 Earn 1272 GrowClub points worth $12.73 off your next order
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

Aquafog Hydro SS 700-DF Fan

The Aquafog Hydro SS 700-DF Fan, model SS-700-DF, is a compact direct-feed centrifugal fogging system designed for reliable humidification, evaporative cooling, spot cooling, and environmental control in greenhouses, horticultural facilities, agricultural buildings, commercial spaces, and other small-to-medium areas.

Unlike the SS 700-BT and SS 700-HS models, the SS 700-DF has no recirculating sump. Instead, it connects directly to a pressurized water supply through an included stainless-steel flowmeter panel, providing simple and precise water-flow adjustment.

Aquafog’s nozzle-free centrifugal atomization technology produces fine fog without high-pressure pumps or clog-prone nozzles.

Direct-Feed Design

The SS 700-DF connects directly to a standard pressurized water supply, making it a practical choice for permanent installations.

The included stainless-steel visual flowmeter panel lets operators monitor and adjust incoming water before it reaches the atomizer.

The flowmeter provides:

  • 1–5 GPH flow range
  • Precision needle-valve adjustment
  • Clear visual flow indication
  • In-line strainer
  • Compatible water pressure of approximately 10–100 PSI

Up to 3.5 GPH Fogging Output

The Hydro SS 700-DF provides dependable fog production for humidification and evaporative cooling.

Performance includes:

  • Fogging output up to 3.5 GPH
  • Approximately 980 CFM airflow
  • Fog propulsion up to approximately 12 ft
  • Approximately 28,500 BTU/h evaporative cooling capacity
  • Average particle size of approximately 25 microns

The flowmeter panel lets you adjust water input to suit the desired fogging level.

Drain Line Required

Because the SS 700-DF does not use a recirculating tank, you must discharge excess water through the included drainage line.

The system includes:

  • 20 ft water-supply line
  • 14 ft power cord
  • 12 ft drainage line

Drain discharge can reach about 1.5 GPH, so install the unit where a suitable drainage area is available.

Water Solenoid Required for Direct Feed

Direct-feed systems should always include a water solenoid shutoff valve so water automatically stops whenever the fogger is switched off or power is interrupted.

Jaybird’s dedicated -DF control packages already include a water solenoid.

If you operate the SS 700-DF manually or connect it to an existing control system, install the Aquafog Water Solenoid SV-120-DF in the water-supply line.

Quiet and Compact Operation

The Hydro SS 700 is Aquafog’s smallest and quietest centrifugal atomizer platform.

The SS 700-DF features:

  • 1/20 HP motor
  • 115 V / 60 Hz
  • Single-phase operation
  • Approximately 1.5 A
  • Noise level of approximately 63 dB(A) at 10 ft

Its compact dimensions make it well suited for applications where space and noise levels are important.

Used With / Compatible With

The Aquafog Hydro SS 700-DF Fan is specifically compatible with Aquafog direct-feed controls and accessories, including:

  • Aquafog Digital Humidistat Control DH-36-DF
  • Aquafog Humidistat XE-36-DF
  • Aquafog Cycle Timer Control CTA-120-DF
  • Aquafog Thermostat Control THA-120-DF
  • Aquafog 24-Hour Timer Control TC-120-DF
  • Aquafog Water Solenoid SV-120-DF
  • Aquafog Traveling Floor Stand XE-100
  • Aquafog Wall Mount XE-W
  • Aquafog Ceiling Mount XE-C
  • Aquafog Temperature-Humidity Meter CP-205
  • Aquafog Temperature-Humidity Meter with Dew Point CP-301

The dedicated -DF controllers automatically coordinate electrical operation and incoming water using an integrated water solenoid.

Ideal Applications

The Aquafog Hydro SS 700-DF is well suited for:

  • Greenhouse humidity control
  • Propagation areas
  • Horticultural facilities
  • Agricultural buildings
  • Food packing and processing
  • Commercial humidification
  • Evaporative cooling
  • Spot cooling
  • Environmental-control systems
  • Indoor and outdoor applications

Key Features

  • Direct-feed centrifugal fogging system
  • Model SS-700-DF
  • Up to 3.5 GPH fogging output
  • Approximately 980 CFM airflow
  • Approximately 12 ft fog propulsion
  • Approximately 28,500 BTU/h cooling capacity
  • Average particle size of approximately 25 microns
  • Nozzle-free centrifugal atomization
  • No recirculating sump
  • Stainless-steel 1–5 GPH flowmeter panel
  • Precision needle-valve flow control
  • In-line strainer included
  • Requires 10–100 PSI pressurized water supply
  • Drain line required
  • Up to approximately 1.5 GPH drain discharge
  • Water solenoid required for automatic operation
  • 20 ft water line
  • 12 ft drainage line
  • 14 ft power cord
  • 1/20 HP motor
  • 115 V / 60 Hz / single-phase
  • Approximately 1.5 A
  • Quiet operation
  • Arrives fully assembled
  • Manufactured in the USA

Specifications

Specification Details
Product Aquafog Hydro SS 700-DF Fan
Model SS-700-DF
System Type Direct-feed centrifugal fogger
Fogging Capacity Up to 3.5 GPH
Airflow Approx. 980 CFM
Fog Propulsion Approx. 12 ft
Cooling Capacity Approx. 28,500 BTU/h
Average Particle Size Approx. 25 microns
Flowmeter Range 1–5 GPH
Water Pressure 10–100 PSI
Drain Discharge Up to approx. 1.5 GPH
Recirculating Sump No
Drain Required Yes
Water Solenoid Required for automatic shutoff
Motor 1/20 HP
Voltage 115 V
Frequency 60 Hz
Phase Single phase
Energy Consumption Approx. 1.5 A
Noise Level Approx. 63 dB(A) at 10 ft
Water Line 20 ft
Drain Line 12 ft
Power Cord 14 ft
Dimensions 16 in W × 17 in D × 20 in H
Weight Approx. 10 lb
Used With DH-36-DF, XE-36-DF, CTA-120-DF, THA-120-DF, TC-120-DF, SV-120-DF, XE-100, XE-W, XE-C, CP-205 and CP-301
Country of Origin USA

Compact Direct-Feed Humidification and Cooling

The Aquafog Hydro SS 700-DF Fan combines quiet centrifugal atomization, precise flowmeter control, compact construction, and direct connection to a pressurized water supply.

Its 3.5 GPH output, 980 CFM airflow, and compatibility with dedicated Aquafog -DF controls make it a practical solution for permanent professional humidification and evaporative-cooling installations.
