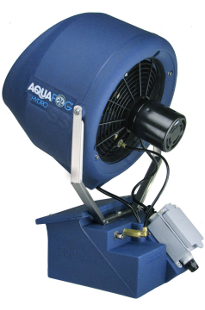

Aquafog Hydro SS 700-BT Fan
The Aquafog Hydro SS 700-BT Fan, model SS-700-BT, is a compact bench-top centrifugal fogging system designed for dependable humidification, evaporative cooling, spot cooling, and environmental control.
Ideal when hanging installation isn't practical, the SS 700-BT combines up to 3.5 GPH fogging output, approximately 980 CFM airflow, quiet operation, and an integrated recirculating sump in one convenient, self-contained system.
Aquafog’s nozzle-free centrifugal atomization technology produces fine fog without the high-pressure pumps and clog-prone nozzles used by conventional misting systems.
Compact Bench-Top Design
The SS 700-BT is designed to sit securely on a bench, shelf, or other stable elevated surface.
Its compact design makes it especially useful for greenhouses, propagation areas, horticultural facilities, agricultural buildings, commercial spaces, and other installations where ceiling or hanging mounting isn't practical.
The pivoting fogging head also lets you adjust the fog direction for better distribution.
Up to 3.5 GPH Fogging Output
The Aquafog Hydro SS 700-BT delivers reliable performance for small-to-medium humidification and cooling applications.
Performance includes:
-
Fogging output up to 3.5 GPH
-
Approximately 980 CFM airflow
-
Fog propulsion up to approximately 12 ft
-
Approximately 28,500 BTU/h evaporative cooling capacity
-
Average particle size of approximately 25 microns
A manual 1/4-turn ball valve lets the operator adjust water flow and fogging output to suit the application.

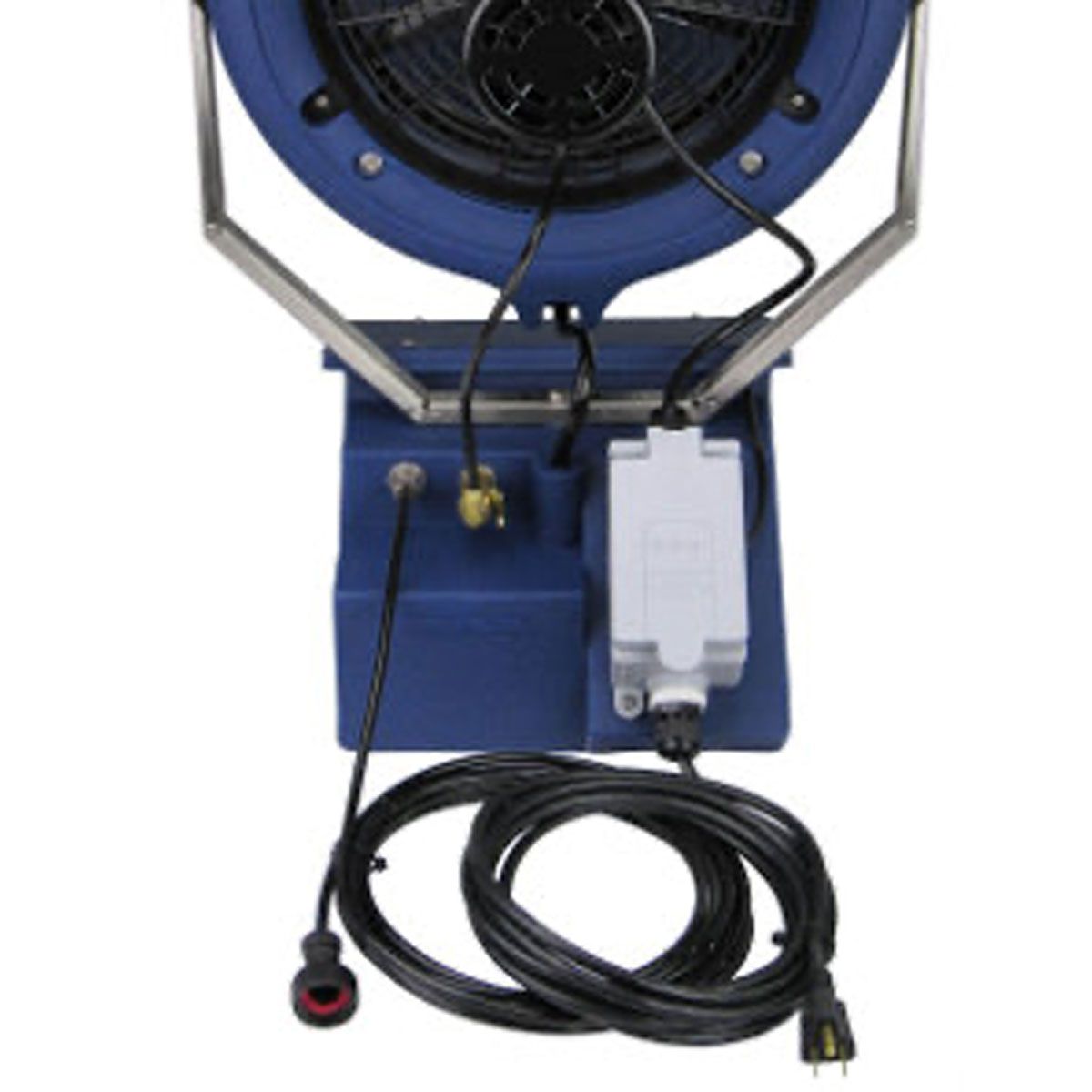

Recirculating Sump – No Drain Required
The SS 700-BT includes an integrated recirculating sump tank that captures unused water and feeds it back through the fogging system.
Because excess water is recycled internally, no drainage line is required, helping simplify installation.
An internal float valve automatically maintains the correct water level, while a small submersible pump supplies water to the atomizing fan head.
Quiet and Energy-Efficient Operation
The Hydro SS 700 platform is Aquafog’s smallest and quietest centrifugal atomizer system.
The SS 700-BT features:
- 1/20 HP motor
- 115 V / 60 Hz
- Single-phase operation
-
Approximately 1.6 A
-
Noise level of approximately 63 dB(A) at 10 ft
This makes it a practical choice for environments where compact size and quiet operation matter.
Durable Construction
The SS 700-BT is built for professional applications using 304 stainless-steel hardware and UV-stabilized, impact-resistant materials.
It is suitable for:
- Indoor and outdoor operation
-
Temperatures from approximately 33°F to 160°F
-
Humidity levels up to 85% RH
- Greenhouse and other wet-environment applications
Used With / Compatible With
The Aquafog Hydro SS 700-BT Fan can operate manually or be paired with compatible Aquafog controls and monitoring equipment, including:
- Aquafog Digital Humidistat Control DH-36
- Aquafog Humidistat XE-36
- Aquafog Cycle Timer Control CTA-120
- Aquafog Thermostat Control THA-120
- Aquafog 24-Hour Timer Control TA-120
- Aquafog Temperature-Humidity Meter CP-205
- Aquafog Temperature-Humidity Meter with Dew Point CP-301
These accessories let you use the SS 700-BT for automatic humidity and temperature control, cycle scheduling, and environmental monitoring.
Ideal Applications
The Aquafog Hydro SS 700-BT is well suited for:
- Greenhouse humidity control
- Plant propagation areas
- Horticultural facilities
- Agricultural buildings
- Produce storage and processing
- Commercial humidification
- Evaporative cooling
- Spot cooling
- Environmental conditioning
- Indoor and outdoor work areas
Key Features
- Compact bench-top centrifugal fogger
-
Model SS-700-BT
-
Up to 3.5 GPH fogging output
-
Approximately 980 CFM airflow
-
Approximately 12 ft fog propulsion
-
28,500 BTU/h evaporative cooling
-
Average particle size of approximately 25 microns
- Nozzle-free centrifugal atomization
- Integrated recirculating sump
- No drainage line required
- Internal submersible feed pump
- Automatic float valve
-
Adjustable 1/4-turn flow-control valve
- Pivoting fogging head
- Illuminated On/Off switch
- Standard garden-hose connection
- 20 ft water line
- 14 ft power cord
- 1/20 HP motor
- 115 V / 60 Hz / single-phase
- Quiet operation
- 304 stainless-steel hardware
- Indoor/outdoor rated
- Arrives fully assembled
- Manufactured in the USA
Specifications
| Specification |
Details |
| Product |
Aquafog Hydro SS 700-BT Fan |
| Model |
SS-700-BT |
| System Type |
Bench-top centrifugal fogger |
| Fogging Capacity |
Up to 3.5 GPH |
| Airflow |
Approx. 980 CFM |
| Fog Propulsion |
Approx. 12 ft |
| Cooling Capacity |
Approx. 28,500 BTU/h |
| Average Particle Size |
Approx. 25 microns |
| Motor |
1/20 HP |
| Voltage |
115 V |
| Frequency |
60 Hz |
| Phase |
Single phase |
| Energy Consumption |
Approx. 1.6 A |
| Noise Level |
Approx. 63 dB(A) at 10 ft |
| Recirculating Sump |
Yes |
| Drain Required |
No |
| Flow Control |
Manual 1/4-turn ball valve |
| Fogging Head |
Pivoting |
| Water Connection |
Standard garden-hose connection |
| Water Line |
20 ft |
| Power Cord |
14 ft |
| Dimensions |
16 in W × 18 in D × 25 in H |
| Weight |
Approx. 17 lb / 7.7 kg |
| Hardware |
304 (18/8) stainless steel |
| Environment |
Indoor/outdoor, up to 85% RH |
| Used With |
DH-36, XE-36, CTA-120, THA-120, TA-120, CP-205 and CP-301 |
| Country of Origin |
USA |
Compact, Drain-Free Bench-Top Fogging
The Aquafog Hydro SS 700-BT Fan combines quiet centrifugal atomization, a compact bench-top design, adjustable fog output, and a recirculating sump for convenient humidification and evaporative cooling.
Its drain-free operation, simple installation, and compatibility with multiple Aquafog controls make it a versatile environmental-control solution for professional growing, agricultural, and commercial applications.
