AC Infinity IONFRAME EVO8 730W – Full-Spectrum LED Grow Light with Samsung LM301H EVO Diodes

The AC Infinity IONFRAME EVO8 730W is a high-performance full-spectrum LED grow light designed for 5' x 5' grow tents, indoor gardens, hydroponic systems, greenhouses, grow rooms, and other controlled cultivation environments.

Built with 2688 premium LEDs, including genuine Samsung LM301H EVO horticultural diodes, the IONFRAME EVO8 delivers powerful, evenly distributed light while reducing central hotspots and improving light penetration throughout the plant canopy. Its commercial-style bar design, removable LED driver, passive cooling system, digital schedule controller, and AC Infinity UIS compatibility make it a highly adaptable lighting solution for demanding indoor cultivation.

AC Infinity rates the EVO8 for 5' x 5' flowering coverage and up to 6' x 6' vegetative coverage. The fixture operates at 730 W and delivers a maximum PPFD of approximately 2013 µmol/m²/s.

Samsung LM301H EVO LED Technology

The IONFRAME EVO8 uses genuine Samsung LM301H EVO LEDs, designed specifically for high-efficiency horticultural lighting.

Each LM301H EVO diode is rated at approximately 3.14 µmol/J PPE, providing excellent individual-diode efficiency and strong photon output.

The EVO8 combines:

• 1720 Samsung LM301H EVO 3000K diodes
• 864 Samsung LM301H EVO 5000K diodes
• 8 Seoul 395 nm UV diodes
• 88 OSRAM 660 nm red diodes
• 8 OSRAM 730 nm far-red diodes

Together, these components provide 2688 LEDs across the fixture.

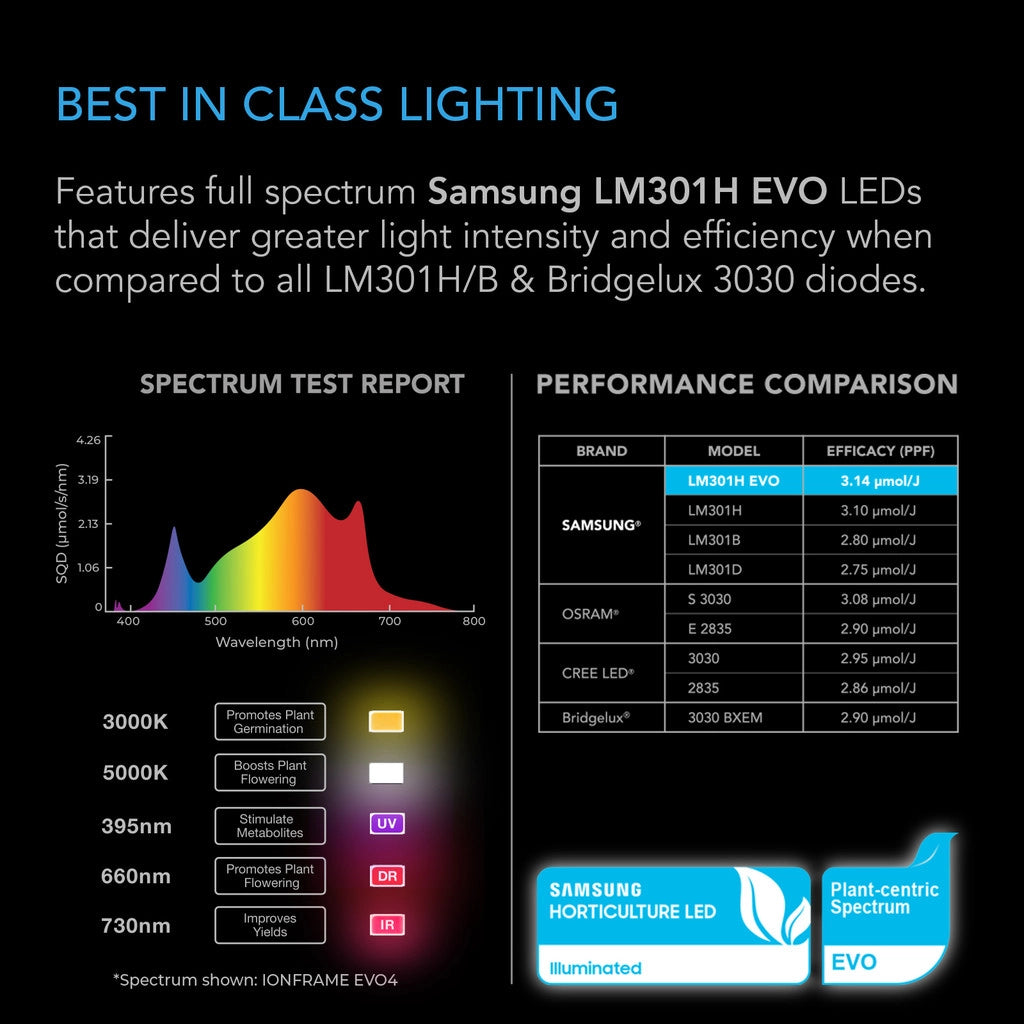

Full-Spectrum Light for Multiple Growth Stages

The IONFRAME EVO8 provides a broad horticultural spectrum designed for use through multiple stages of plant development.

Its spectrum combines:

• 3000K warm white
• 5000K cool white
• 395 nm UV
• 660 nm deep red
• 730 nm far red

This combination provides balanced full-spectrum illumination for propagation, vegetative development, and flowering.

Using one fixture across multiple stages can simplify the lighting setup while maintaining strong, consistent illumination across the canopy.

Powerful 730W Output

With a rated power consumption of 730 watts, the IONFRAME EVO8 provides substantial lighting intensity for larger indoor growing environments.

AC Infinity specifies a maximum PPFD of approximately 2013 µmol/m²/s, delivering high-output illumination for growers who require strong light intensity over a broad canopy.

Its 730W output makes it particularly suitable for:

• 5' x 5' grow tents
• Large indoor gardens
• Grow rooms
• Hydroponic systems
• Greenhouses
• Dense plant canopies
• Commercial-style indoor growing environments

5' x 5' Flowering Coverage

The IONFRAME EVO8 delivers broad light distribution across large cultivation areas.

AC Infinity specifies:

• Nominal coverage: 5' x 5'
• Vegetative coverage: up to 6' x 6'
• Flowering coverage: up to 5' x 5'

Actual coverage can vary depending on hanging height, plant requirements, desired PPFD, reflective surfaces, and brightness settings.

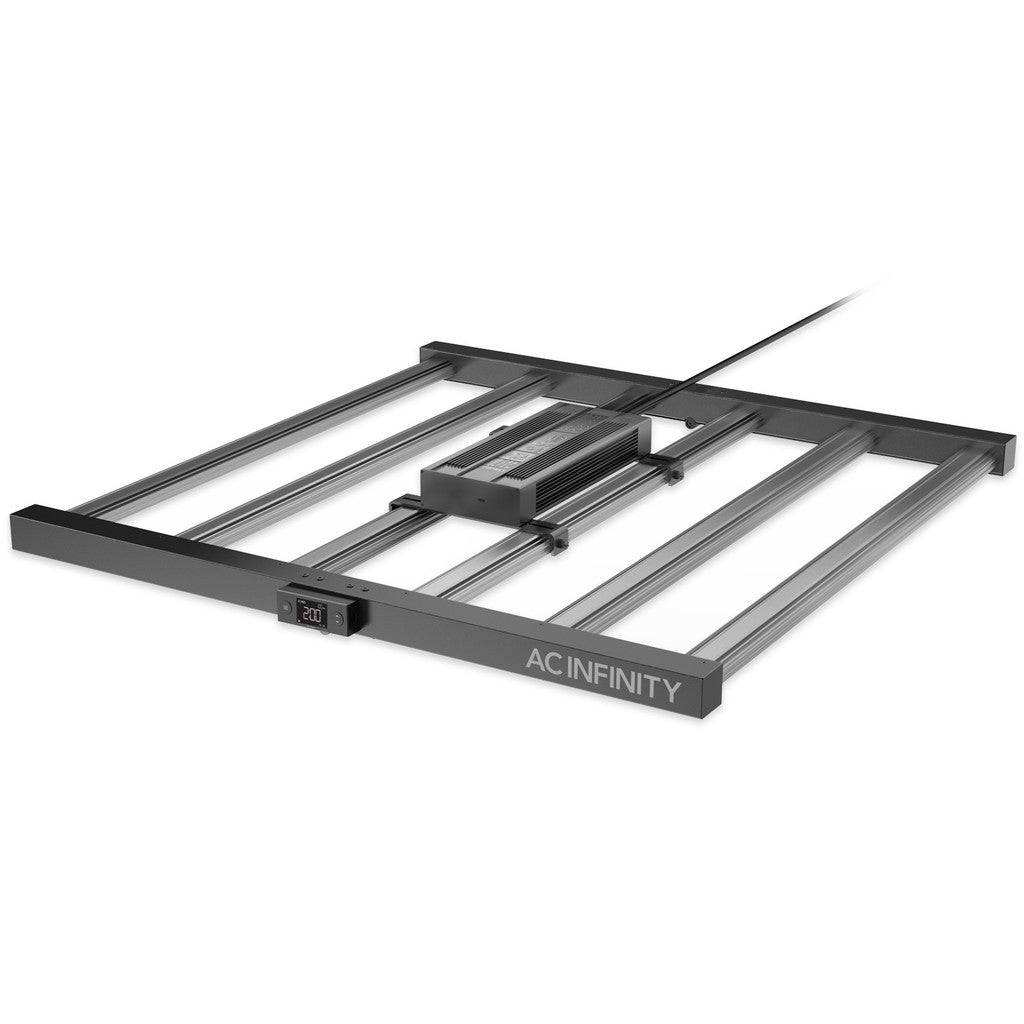

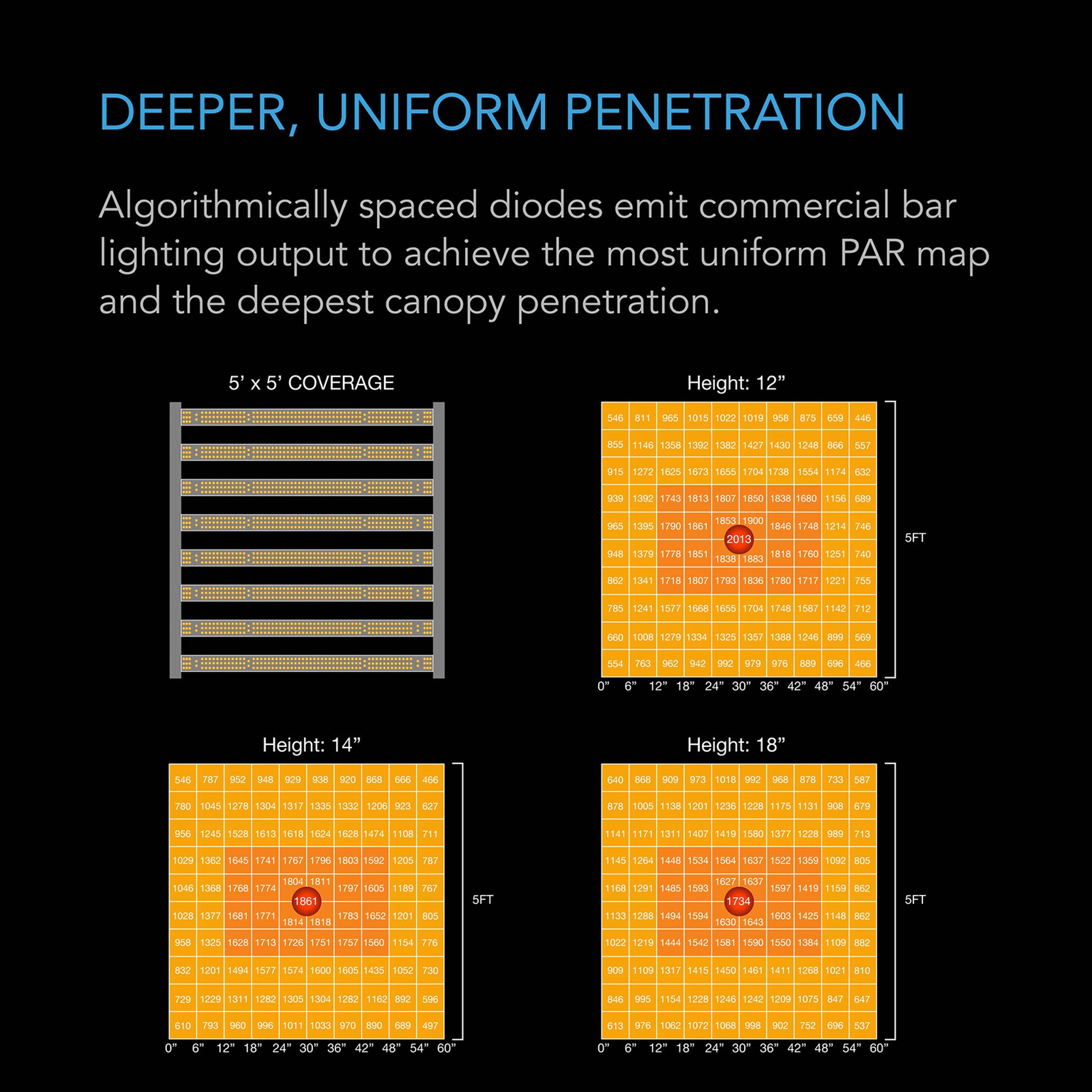

Bar-Style Design for Uniform Light Distribution

The EVO8 uses a bar-style frame with algorithmically spaced diodes to distribute light more evenly over the growing area.

Instead of concentrating LEDs in a small central panel, the diodes are spread across multiple lighting bars.

This design helps:

• Reduce central hotspots
• Improve edge-to-edge coverage
• Create more uniform PPFD distribution
• Improve light penetration through dense canopies
• Spread light more evenly across larger growing spaces

The wide fixture measures approximately 44.09" x 44.48", helping distribute its 730W output over a broad canopy.

10 Adjustable Brightness Levels

The included digital schedule controller offers 10 adjustable light-intensity levels, letting growers customize output for different stages of plant development.

Lower intensity settings can be useful for:

• Seedlings
• Clones
• Young plants
• Early vegetative development

Higher settings can provide stronger illumination for:

• Established vegetative plants
• Dense canopies
• Flowering plants
• Larger growing spaces

This adjustable output lets you use the same fixture across multiple stages of indoor cultivation.

Sunrise & Sunset Dimming

The IONFRAME EVO8 includes programmable sunrise and sunset dimming.

Instead of switching immediately between full light and darkness, the controller can gradually increase or decrease light output.

This creates smoother lighting transitions and provides greater flexibility when programming daily grow-light schedules.

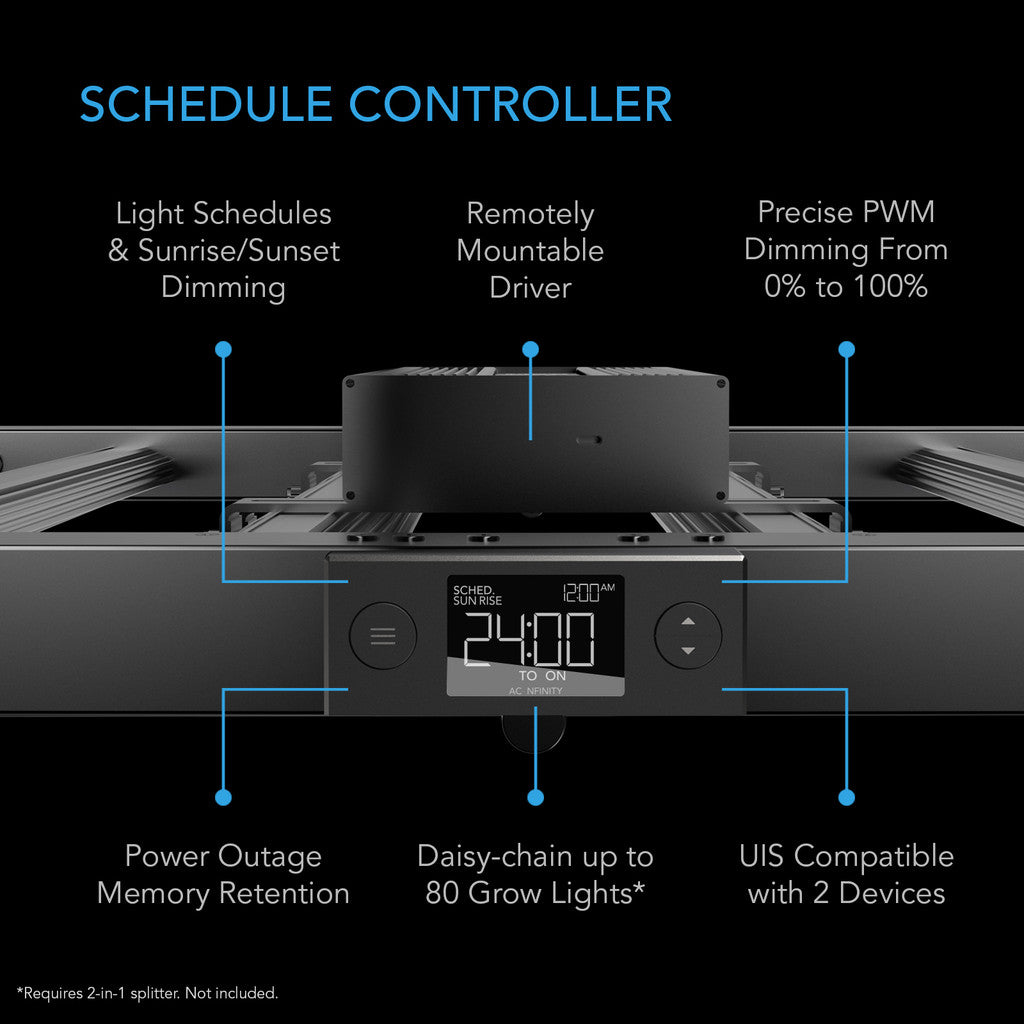

Built-In Schedule Controller

The included controller can automatically operate the EVO8 according to a programmed daily lighting routine.

Its built-in functions include:

• Daily schedule programming
• 10 brightness levels
• Sunrise dimming
• Sunset dimming
• Automatic cycling

This eliminates the need for a separate mechanical timer in many installations and simplifies routine lighting management.

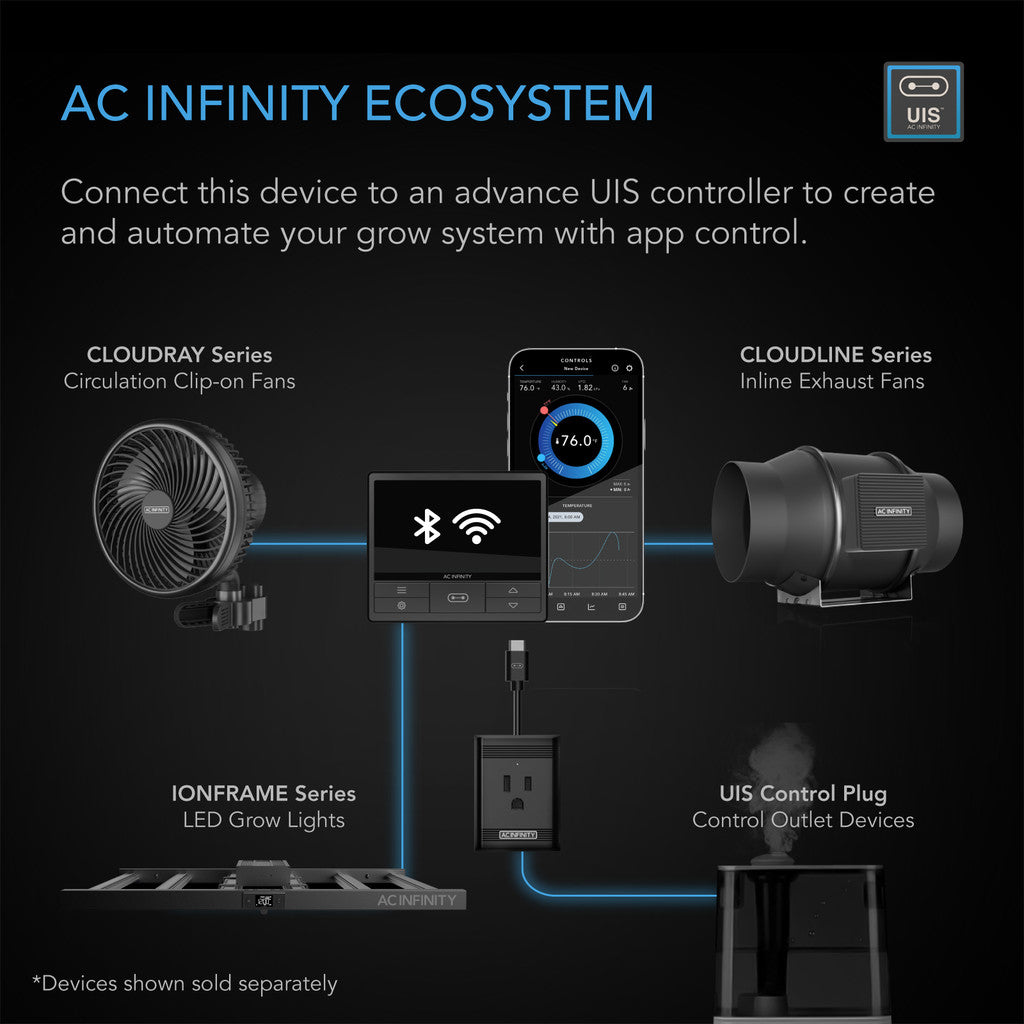

AC Infinity UIS Compatibility

The IONFRAME EVO8 is part of the AC Infinity UIS ecosystem.

When connected to a compatible advanced controller such as the Controller 69 PRO or CONTROLLER AI+, growers can integrate lighting with other compatible AC Infinity equipment such as ventilation fans, circulation fans, humidifiers, heaters, and environmental-control devices.

Depending on the controller used, advanced functionality may include:

• Wi-Fi app control
• Remote brightness adjustment
• Automated lighting schedules
• Advanced automation
• Grow recipes
• Integration with ventilation and climate-control equipment
• Centralized AC Infinity app management

This makes the EVO8 especially well suited to growers building an integrated smart cultivation system.

Removable LED Driver

The IONFRAME EVO8 features a removable LED driver, giving growers additional flexibility when managing heat.

The driver can remain mounted directly to the fixture or be positioned remotely.

Remote driver installation can help:

• Reduce heat inside a grow tent
• Improve thermal management
• Free up space around the fixture
• Keep electrical components accessible
• Create a cleaner equipment layout

This modular design can be particularly useful in enclosed grow tents or warm growing environments.

Passive Cooling Design

The EVO8 uses a passive cooling system, eliminating the need for integrated cooling fans.

Its steel and aluminum construction helps dissipate heat naturally while minimizing moving parts and operating noise.

Passive cooling can also help reduce maintenance requirements compared with lighting systems that depend on active cooling fans.

IP65-Rated Construction

The IONFRAME EVO8 carries an IP65 protection rating, making the fixture suitable for humid indoor growing environments.

Its specified operating conditions include:

• Humidity: 35–85% RH
• Temperature: 32–140°F

This durable construction helps protect the fixture in environments commonly found in grow tents, hydroponic rooms, and greenhouses.

Daisy-Chain Up to 80 Grow Lights

For larger grow rooms and multi-fixture installations, the IONFRAME EVO8 supports daisy-chaining up to 80 compatible grow lights when you use the appropriate splitter dongles.

This can simplify larger lighting installations by letting you organize multiple fixtures within a coordinated system.

Splitter accessories are sold separately.

Approximately 50,000-Hour LED Lifespan

The IONFRAME EVO8 is rated for approximately 50,000 hours of operation.

Combined with its passive cooling system, commercial-style construction, and removable driver, the fixture is designed for long-term indoor horticultural use.

ETL-Certified Electrical Safety

The IONFRAME EVO8 meets applicable ETL electrical safety standards, with AC Infinity listing ETL Certification 5021417.

This provides additional assurance that the fixture has been evaluated according to applicable electrical-product safety requirements.

Ideal for 5' x 5' Grow Tents & Large Indoor Gardens

The AC Infinity IONFRAME EVO8 is well suited for growers seeking strong full-spectrum LED lighting across larger indoor cultivation areas.

Common applications include:

• 5' x 5' grow tents
• Large indoor gardens
• Grow rooms
• Hydroponic systems
• Greenhouses
• Dense plant canopies
• Commercial-style cultivation environments

Its combination of Samsung EVO diodes, high PPFD, broad bar-style coverage, adjustable intensity, smart scheduling, and UIS automation makes it suitable for both standalone growing systems and advanced integrated environments.

Technical Specifications

• Manufacturer: AC Infinity
• Product: IONFRAME EVO8
• Model: AC-IF8K
• UPC: 819137024076
• Light type: Full-spectrum LED grow light
• Rated wattage: 730 W
• Nominal coverage: 5' x 5'
• Vegetative coverage: up to 6' x 6'
• Flowering coverage: up to 5' x 5'
• Maximum PPFD: 2013 µmol/m²/s
• Primary LEDs: Samsung LM301H EVO
• Total diode count: 2688
• Samsung EVO 3000K diodes: 1720
• Samsung EVO 5000K diodes: 864
• Seoul 395 nm UV diodes: 8
• OSRAM 660 nm red diodes: 88
• OSRAM 730 nm far-red diodes: 8
• Spectrum: 395 nm, 660 nm, 730 nm, 3000K, 5000K
• Individual Samsung EVO diode PPE: 3.14 µmol/J
• Brightness levels: 10
• Schedule controller: Included
• Sunrise/sunset dimming: Yes
• UIS compatibility: Yes
• Daisy-chain support: Up to 80 compatible lights
• LED driver: Removable
• Cooling system: Passive
• Operating voltage: 100–277 V AC
• Frequency: 50/60 Hz
• Current: 7.3 A
• Power connector: North American NEMA 1-15 Type-A
• Operating humidity: 35–85% RH
• Operating temperature: 32–140°F
• Protection rating: IP65
• Expected lifespan: Approximately 50,000 hours
• Fixture dimensions: 44.09" x 44.48" x 3.38"
• Driver dimensions: 7.16" x 1.57"
• ETL certification: 5021417

Key Features

• High-performance 730W full-spectrum LED grow light
• Premium Samsung LM301H EVO diodes
• 2688 total LEDs
• Maximum 2013 µmol/m²/s PPFD
• 3.14 µmol/J individual Samsung EVO diode PPE
• Full spectrum with 3000K, 5000K, 395 nm UV, 660 nm red, and 730 nm far red
• 5' x 5' flowering coverage
• Up to 6' x 6' vegetative coverage
• Bar-style fixture for more uniform canopy illumination
• Algorithmically spaced LEDs
• Reduced hotspots
• Strong canopy penetration
• 10 adjustable brightness levels
• Built-in schedule controller
• Sunrise and sunset dimming
• Removable LED driver
• Passive cooling system
• IP65-rated construction
• Compatible with AC Infinity UIS controllers
• Wi-Fi app control with compatible smart controllers
• Daisy-chain support for up to 80 compatible grow lights
• Approximately 50,000-hour lifespan
• ETL-certified
• Ideal for grow tents, hydroponics, greenhouses, grow rooms, and large indoor gardens

High-Performance Full-Spectrum Lighting for 5' x 5' Grow Spaces

The AC Infinity IONFRAME EVO8 730W combines premium Samsung LED technology, powerful full-spectrum output, broad bar-style coverage, intelligent scheduling, and advanced UIS compatibility in one professional grow-light platform.

With 2688 LEDs, Samsung LM301H EVO technology, 730W output, 2013 µmol/m²/s maximum PPFD, 10 brightness levels, sunrise and sunset dimming, a removable driver, IP65 protection, and smart UIS integration, the EVO8 delivers strong, uniform light for growers who need high-performance illumination across large indoor cultivation spaces.
