AC Infinity CO₂ Controller, Smart Carbon Dioxide Monitor 2-Outlet – Intelligent CO₂ Monitoring & Automation

The AC Infinity CO₂ Controller, Smart Carbon Dioxide Monitor 2-Outlet is an intelligent environmental controller that monitors carbon dioxide levels and automatically manages compatible CO₂ regulators and exhaust fans in grow tents, grow rooms, greenhouses, indoor gardens, laboratories, and other controlled environments.

Equipped with an advanced CO₂ sensor, two independently programmable outlets, customizable PPM triggers, precision cycles, schedules, alarms, and historical environmental tracking, the AC Infinity CO₂ Controller gives growers a convenient way to coordinate CO₂ supplementation and ventilation from one centralized device.

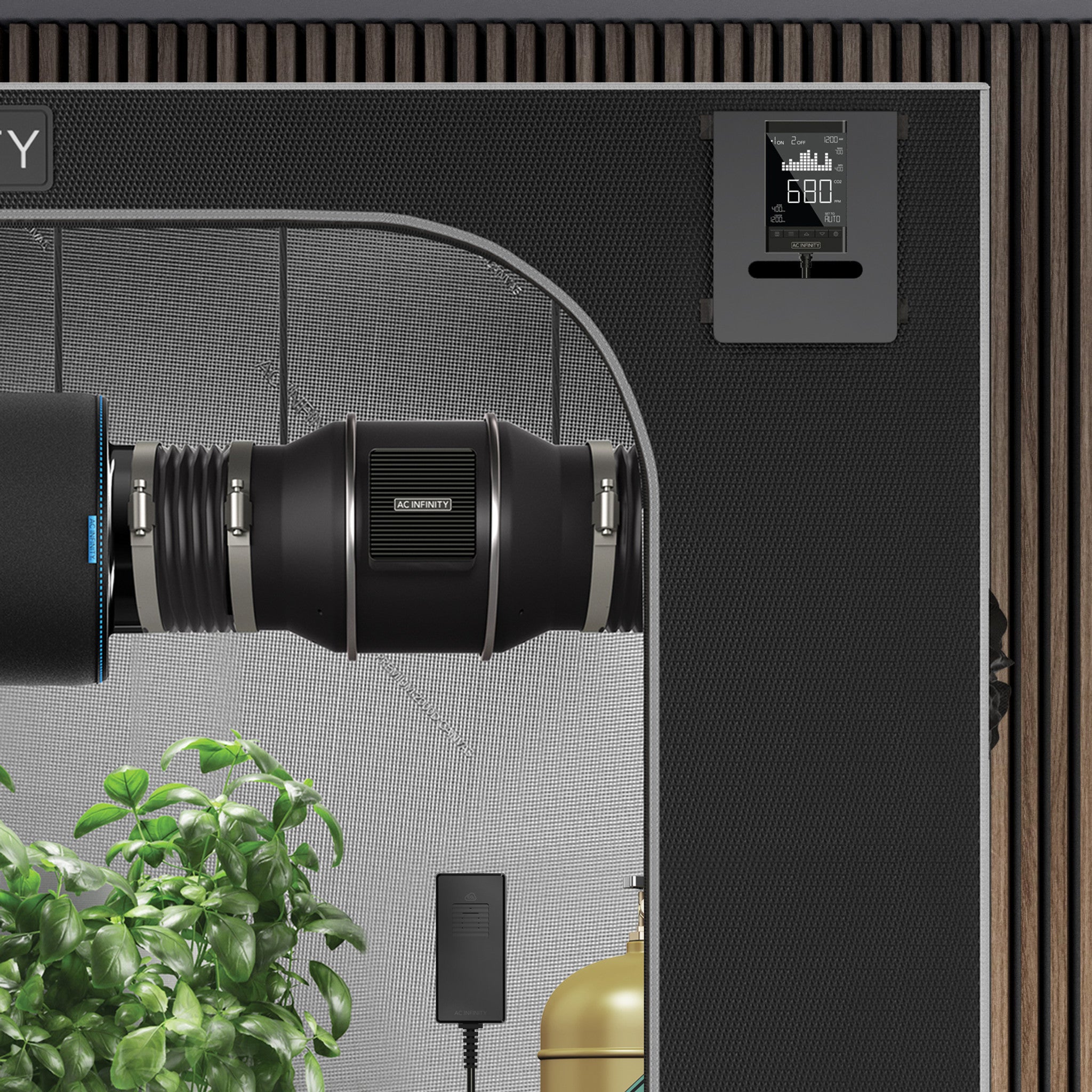

By connecting a compatible CO₂ regulator to one outlet and an exhaust fan to the other, the controller can automatically alternate between CO₂ supplementation and air removal according to programmed carbon dioxide levels.

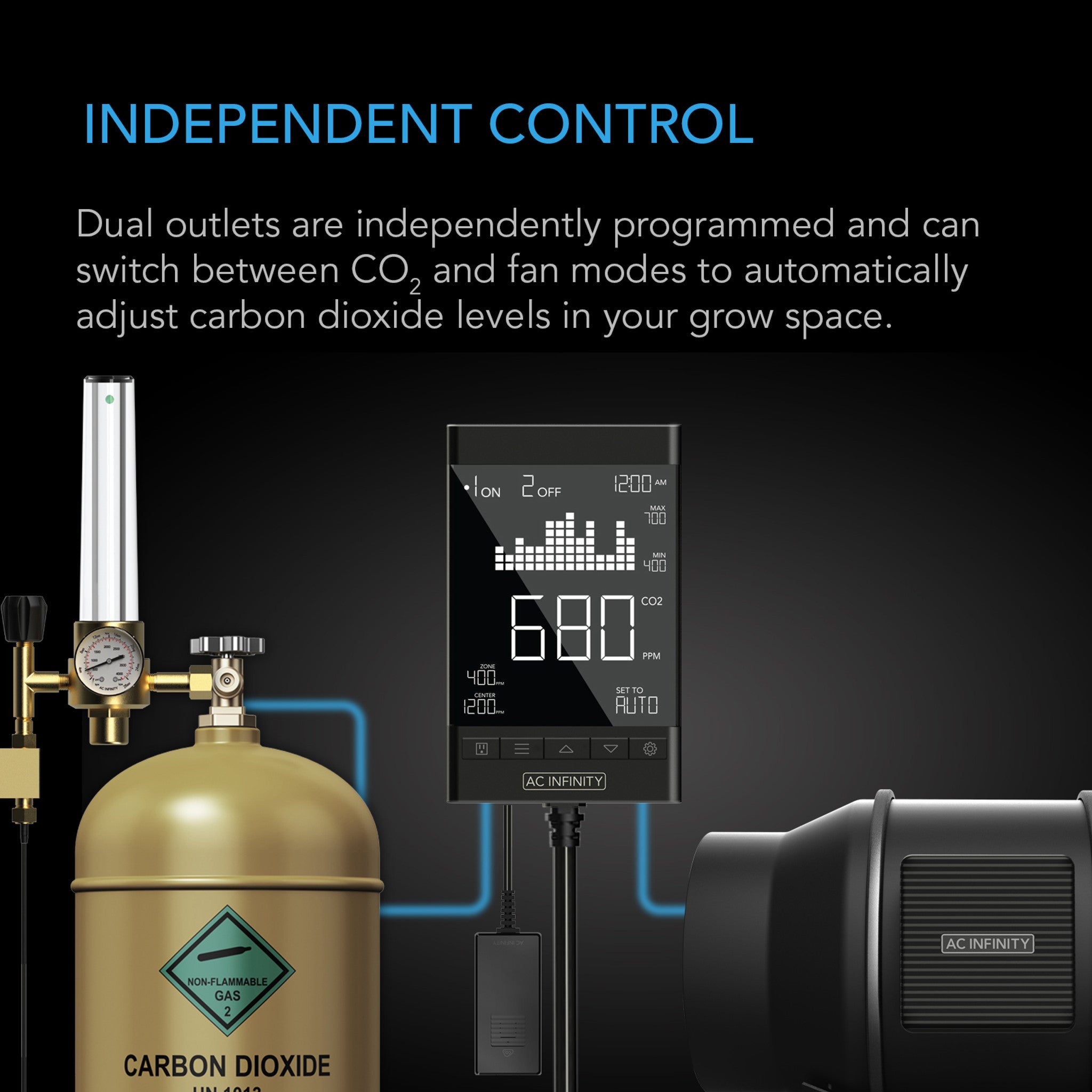

Two Independently Programmable Outlets

The AC Infinity CO₂ Controller features two independently controlled power outlets, allowing two compatible devices to run on separate programming.

A typical indoor growing configuration can include:

• Outlet 1: CO₂ regulator or solenoid system
• Outlet 2: Exhaust or ventilation fan

This setup lets the controller automatically manage both CO₂ addition and removal without constant manual adjustments.

You can also configure the outlets to match the specific requirements of the equipment and growing environment.

Automated CO₂ Regulation

The controller continuously monitors carbon dioxide concentration and can automatically activate connected equipment according to programmed PPM levels.

When CO₂ levels fall below the desired range, the controller can activate a connected CO₂ regulator to increase carbon dioxide concentration.

When levels rise beyond the programmed range, the controller can activate a connected exhaust fan to remove air and reduce CO₂ concentration.

This coordinated operation creates a more automated approach to managing carbon dioxide levels in controlled indoor environments.

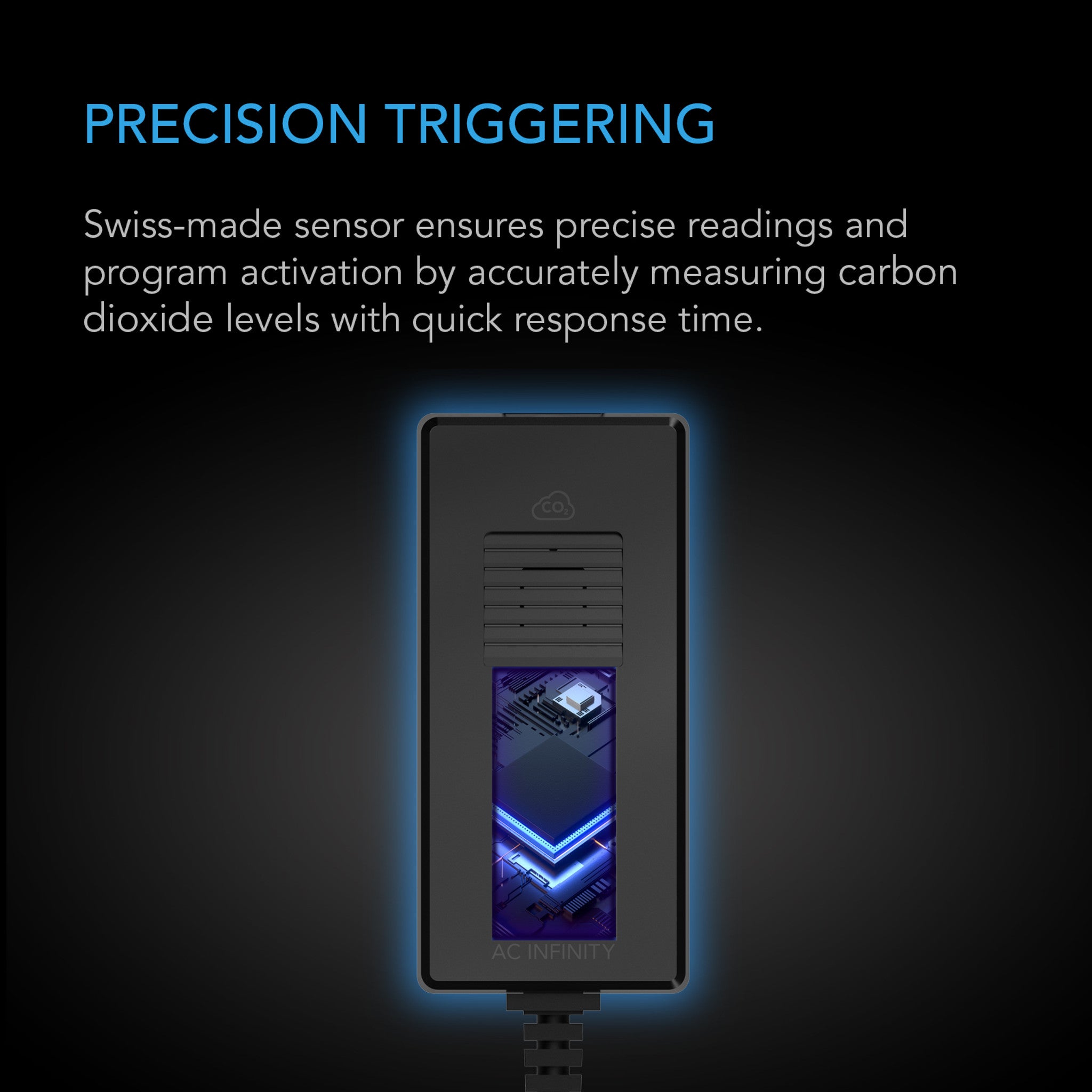

Advanced CO₂ Sensor

A dedicated carbon dioxide sensor probe provides fast and stable readings from inside the growing environment.

The controller can monitor CO₂ concentrations across a range of:

0 to 10,000 PPM

This broad measurement range makes it suitable for monitoring carbon dioxide concentrations in many controlled-environment applications.

The sensor probe includes a generous 12' cable, keeping the controller display conveniently positioned while the sensor sits inside the monitored area.

PPM-Based Trigger Programming

The AC Infinity CO₂ Controller lets users set custom high and low PPM thresholds.

These programmed thresholds determine when connected devices should activate or deactivate.

For example, the controller can be configured so that:

• A CO₂ regulator activates when carbon dioxide drops below a programmed level
• The regulator shuts off once the desired level is reached
• An exhaust fan activates when CO₂ exceeds a programmed threshold
• Ventilation shuts off after levels return to the desired range

This responsive programming automates equipment operation based on actual CO₂ readings rather than relying only on fixed timers.

Automatic Coordination of CO₂ & Exhaust Equipment

Running CO₂ equipment and exhaust ventilation simultaneously can unnecessarily remove newly introduced carbon dioxide from the growing area.

The AC Infinity controller is designed to alternate CO₂ and fan trigger programming, allowing compatible supplementation and ventilation equipment to work together more efficiently.

This coordinated system is especially useful for enclosed grow spaces where you need to manage carbon dioxide concentration and fresh-air exchange carefully.

Precision Cycle Programming

In addition to PPM-based triggers, the controller includes precision cycle programming.

Cycle mode lets connected equipment run according to customized ON and OFF intervals.

This provides additional flexibility for equipment that needs to run periodically rather than continuously.

Cycle programming can be useful for:

• CO₂ supplementation equipment
• Ventilation fans
• Air-exchange systems
• Other compatible outlet-powered environmental equipment

Night Scheduling

The controller also includes night scheduling, allowing you to adjust equipment operation to a programmed day-and-night routine.

This feature gives growers greater control over how carbon dioxide equipment operates during different periods of the lighting schedule.

Instead of manually switching each day, schedules can automate equipment based on the desired operating period.

Custom Alarms

Programmable alarms help users stay informed when CO₂ concentrations move outside established parameters.

You can configure high and low PPM thresholds to match the requirements of the environment being monitored.

These alarms add an extra layer of environmental awareness and help users spot unexpected changes in carbon dioxide concentration.

Historical CO₂ Data Tracking

The AC Infinity CO₂ Controller can track historical carbon dioxide data, allowing users to review how CO₂ concentrations change over time.

High and low PPM thresholds let you customize the displayed data range, making it easier to evaluate environmental patterns and equipment performance.

Historical monitoring can help growers identify:

• CO₂ fluctuations
• Supplementation patterns
• Ventilation cycles
• Unexpected environmental changes
• Opportunities to refine controller settings

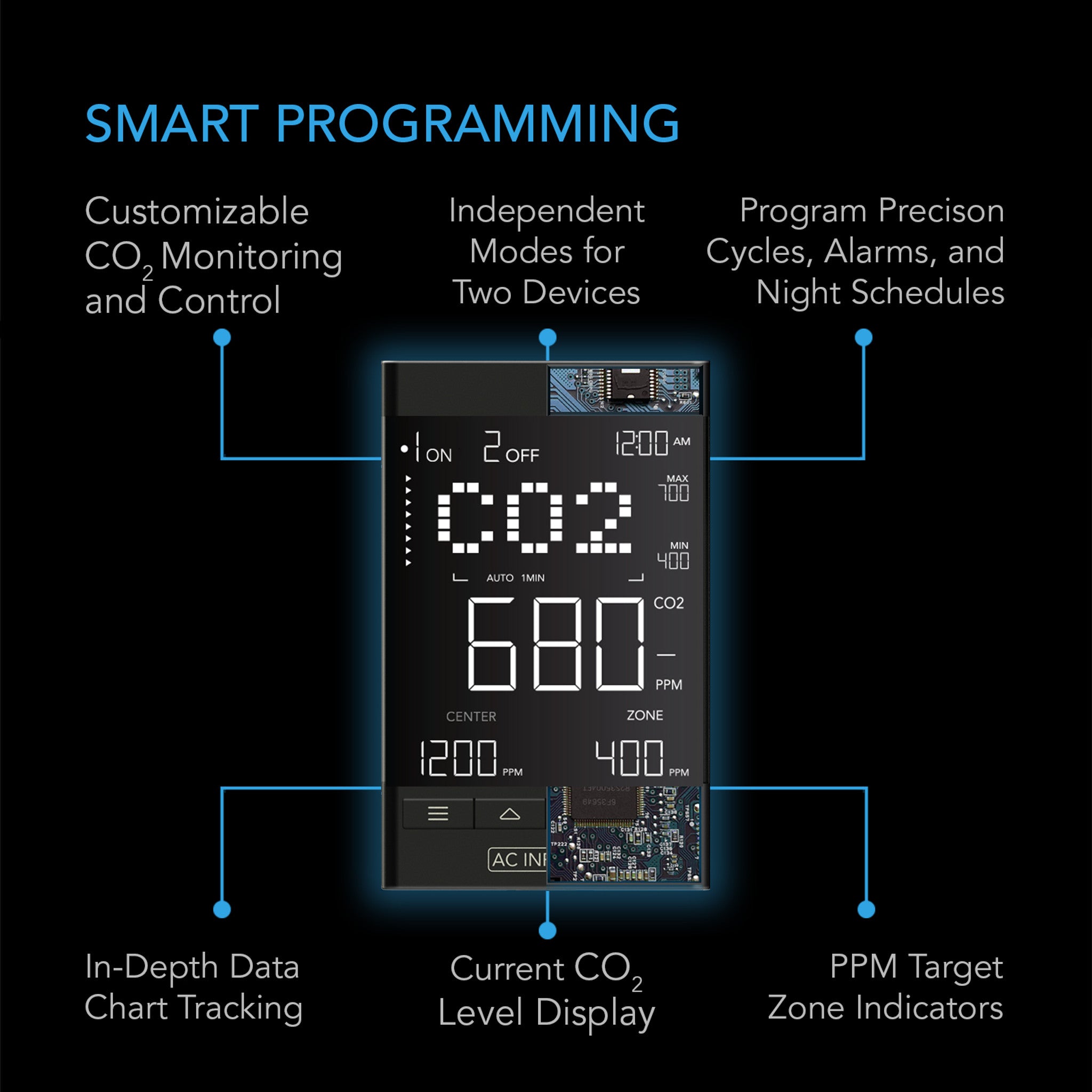

Large Digital Display

The controller features a clear digital display that allows users to monitor current CO₂ readings and programmed settings from one convenient interface.

The display measures approximately 2.53" x 2.98", providing an easy-to-read overview of the current environment and controller operation.

Supports Up to 1100 Watts

The two outlets collectively support compatible equipment up to 1100 W, with a rated current of 10 A.

This lets the controller run a variety of compatible outlet-powered CO₂ and ventilation devices while keeping environmental automation centralized in a single control system.

Always confirm the electrical requirements of connected equipment before installation and ensure the combined load remains within the controller's rated capacity.

Ideal Companion for CO₂ Regulators

The controller is designed to work particularly well with compatible CO₂ regulators, solenoid valves, and carbon dioxide dispensing systems.

When paired with a regulator, the controller can activate or deactivate CO₂ delivery according to real-time PPM readings.

This eliminates the need to manually switch the regulator on and off as environmental conditions change.

Compatible with Exhaust Fans

The second outlet can connect to a compatible exhaust or ventilation fan that automatically restarts when power is restored.

When carbon dioxide levels exceed the programmed threshold, the controller can activate the exhaust fan to increase air exchange.

This lets you coordinate CO₂ supplementation and ventilation with a single monitoring system.

Applications Beyond Grow Tents

Although designed for indoor horticulture, the AC Infinity CO₂ Controller can also be used in various controlled environments that require carbon dioxide monitoring and outlet-based equipment automation.

Suitable applications include:

• Grow tents
• Grow rooms
• Greenhouses
• Indoor gardens
• Controlled-environment agriculture
• Workrooms
• Laboratories
• Other enclosed areas requiring CO₂ monitoring

Long 12' Sensor Probe Cable

The included sensor probe features a 144" (12') cable, giving you flexibility in positioning the CO₂ sensor.

This lets you place the sensor where you need readings while keeping the controller accessible outside or near the growing area.

The controller also includes an approximately 53" (4.4') power cord, which helps simplify installation around grow-room equipment.

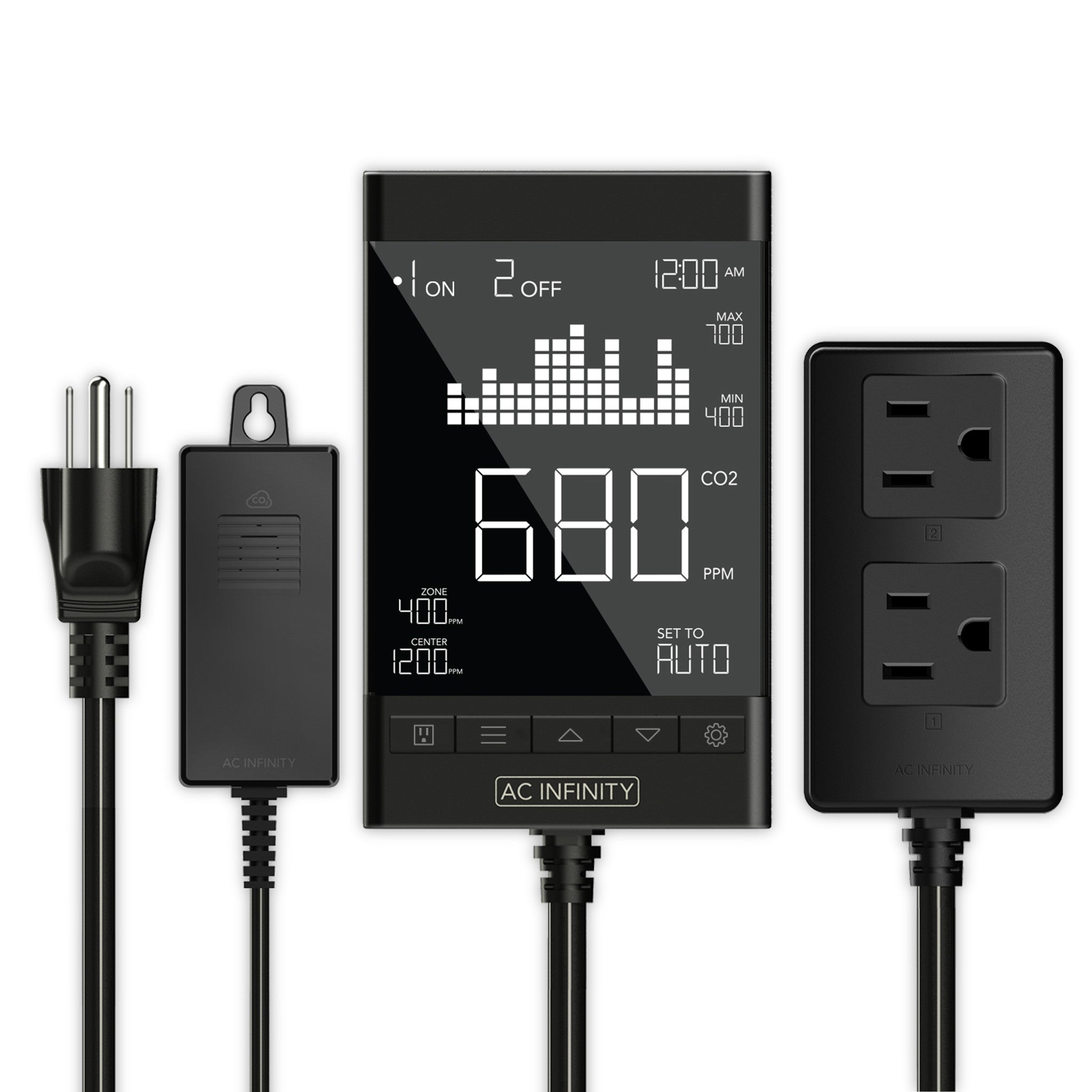

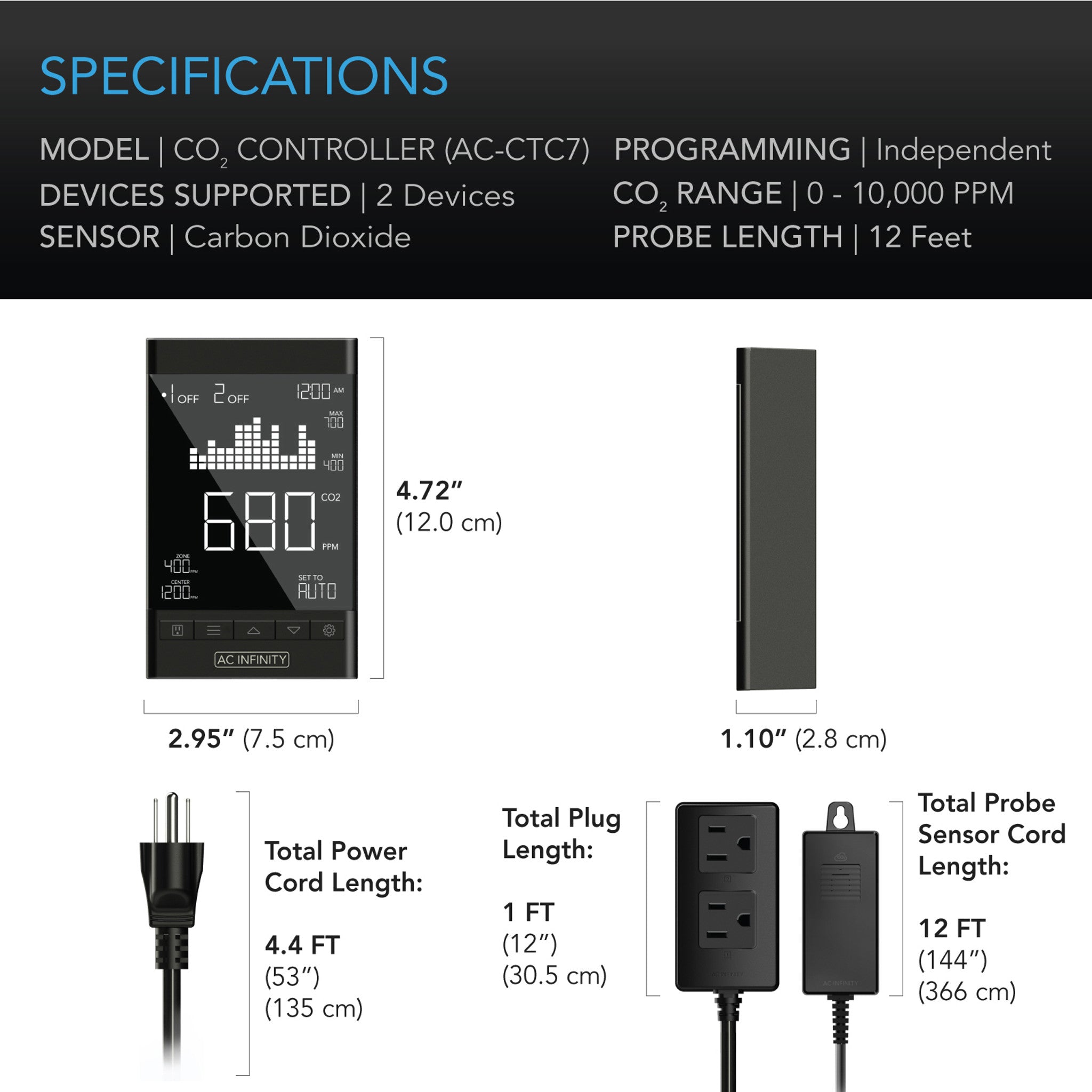

Technical Specifications

• Manufacturer: AC Infinity
• Product: CO₂ Controller, Smart Carbon Dioxide Monitor 2-Outlet
• Model: AC-CTC7
• UPC: 819137022997
• Controller type: Smart outlet CO₂ controller
• Number of outlets: 2
• Outlet programming: Independent
• Sensor type: Carbon dioxide
• CO₂ measurement range: 0–10,000 PPM
• Maximum supported power: 1100 W
• Rated current: 10 A
• Operating voltage: 100–240 V
• Wall adapter input: 100–240 V AC
• Operating humidity: 35–85% RH
• Controller dimensions: 2.95" x 4.72" x 1.10"
• Display dimensions: 2.53" x 2.98"
• Power cord length: 53" / approximately 4.4'
• Sensor probe length: 144" / 12'
• CO₂ trigger programming: Yes
• Exhaust fan trigger programming: Yes
• Precision cycle programming: Yes
• Night scheduling: Yes
• Alarm programming: Yes
• Historical CO₂ data tracking: Yes

Key Features

• Smart CO₂ monitoring and outlet control
• Advanced carbon dioxide sensor
• Measurement range of 0–10,000 PPM
• Two independently programmable outlets
• Controls compatible CO₂ regulators and exhaust fans
• Automatic CO₂ supplementation triggers
• Automatic ventilation triggers
• Dynamically alternates CO₂ and exhaust programming
• Custom high and low PPM thresholds
• Precision cycle programming
• Night scheduling
• Custom alarms
• Historical CO₂ data tracking
• Large digital display
• Long 12' sensor probe
• Supports up to 1100 W
• Rated for 10 A
• Operates on 100–240 V
• Ideal for grow tents, grow rooms, greenhouses, and controlled environments

Smart CO₂ Control for Indoor Growing Environments

The AC Infinity CO₂ Controller, Smart Carbon Dioxide Monitor 2-Outlet provides an efficient way to monitor and automate CO₂ management in a controlled growing environment.

With its 0–10,000 PPM sensor range, two independently programmable outlets, automated CO₂ and exhaust triggers, cycle programming, night scheduling, alarms, and historical data tracking, this controller gives growers a centralized solution for coordinating compatible CO₂ supplementation and ventilation equipment.

Whether used in a grow tent, grow room, greenhouse, or other controlled environment, the AC Infinity CO₂ Controller offers precise monitoring and flexible automation for more organized carbon dioxide management.
