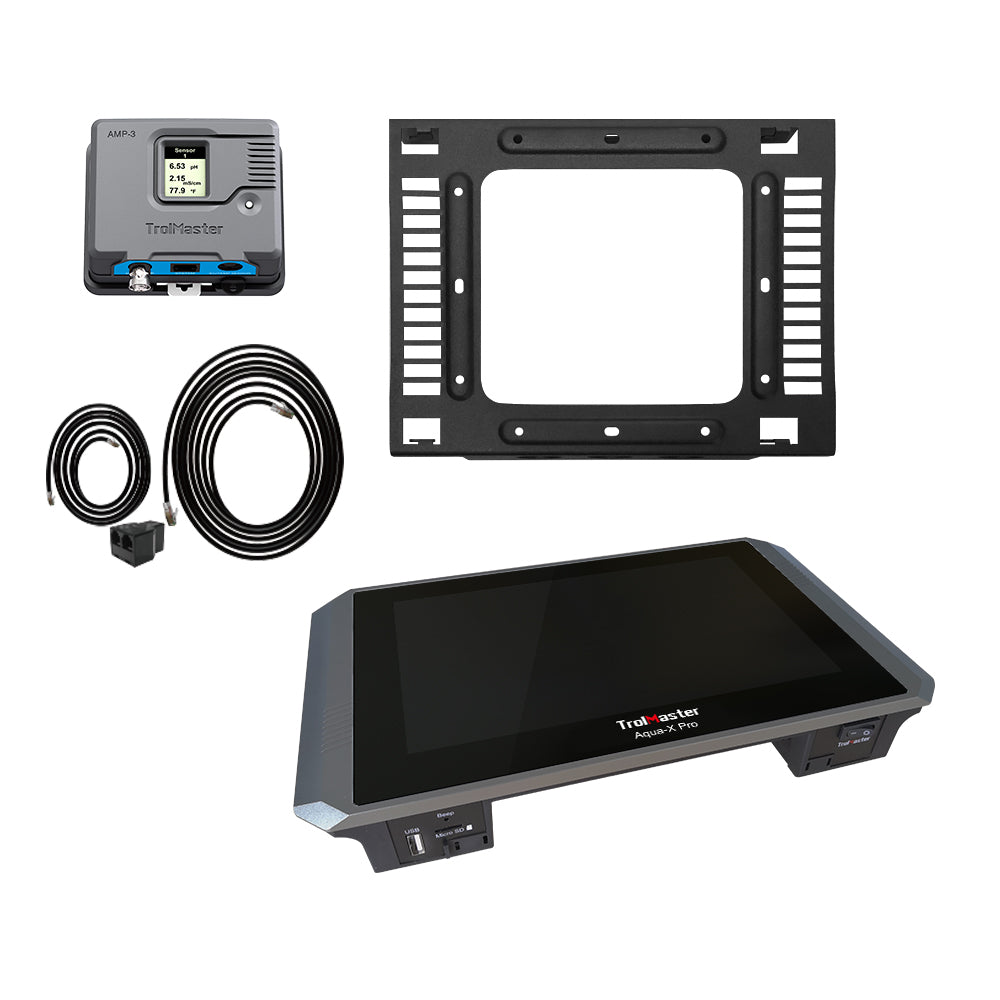

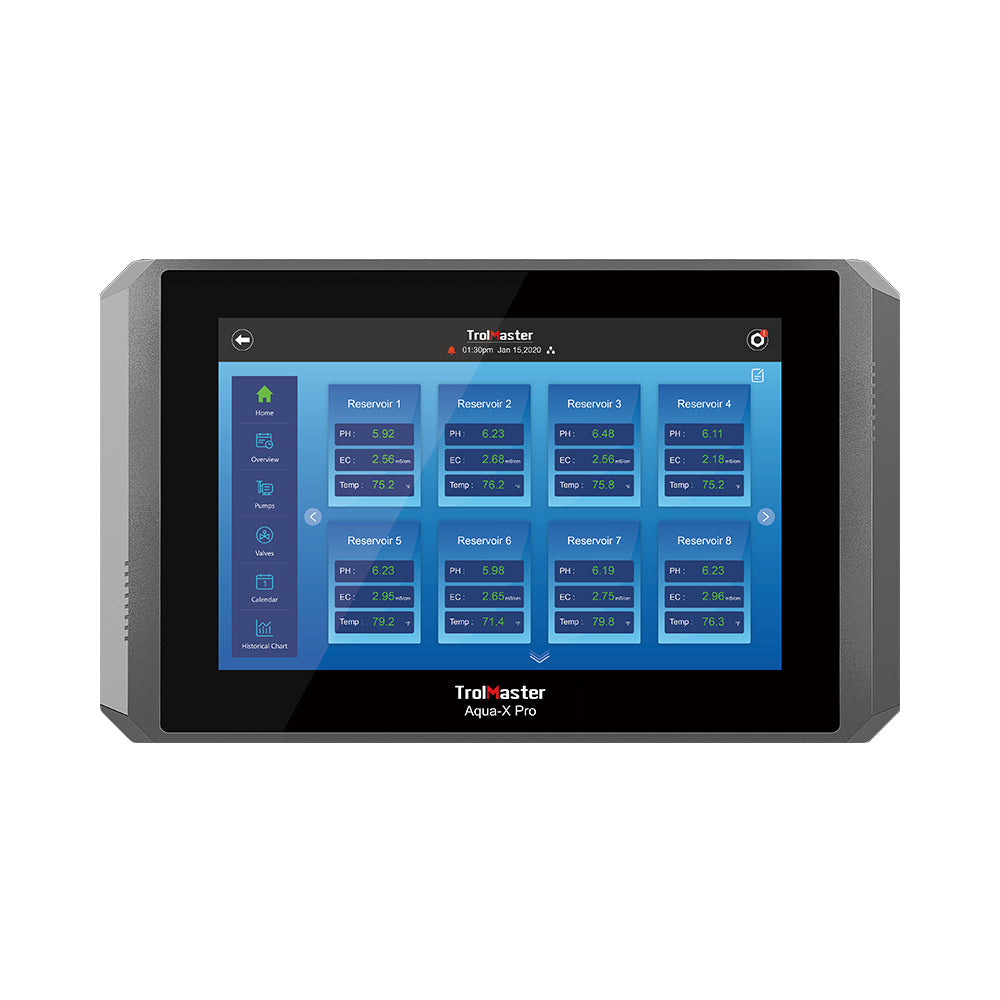

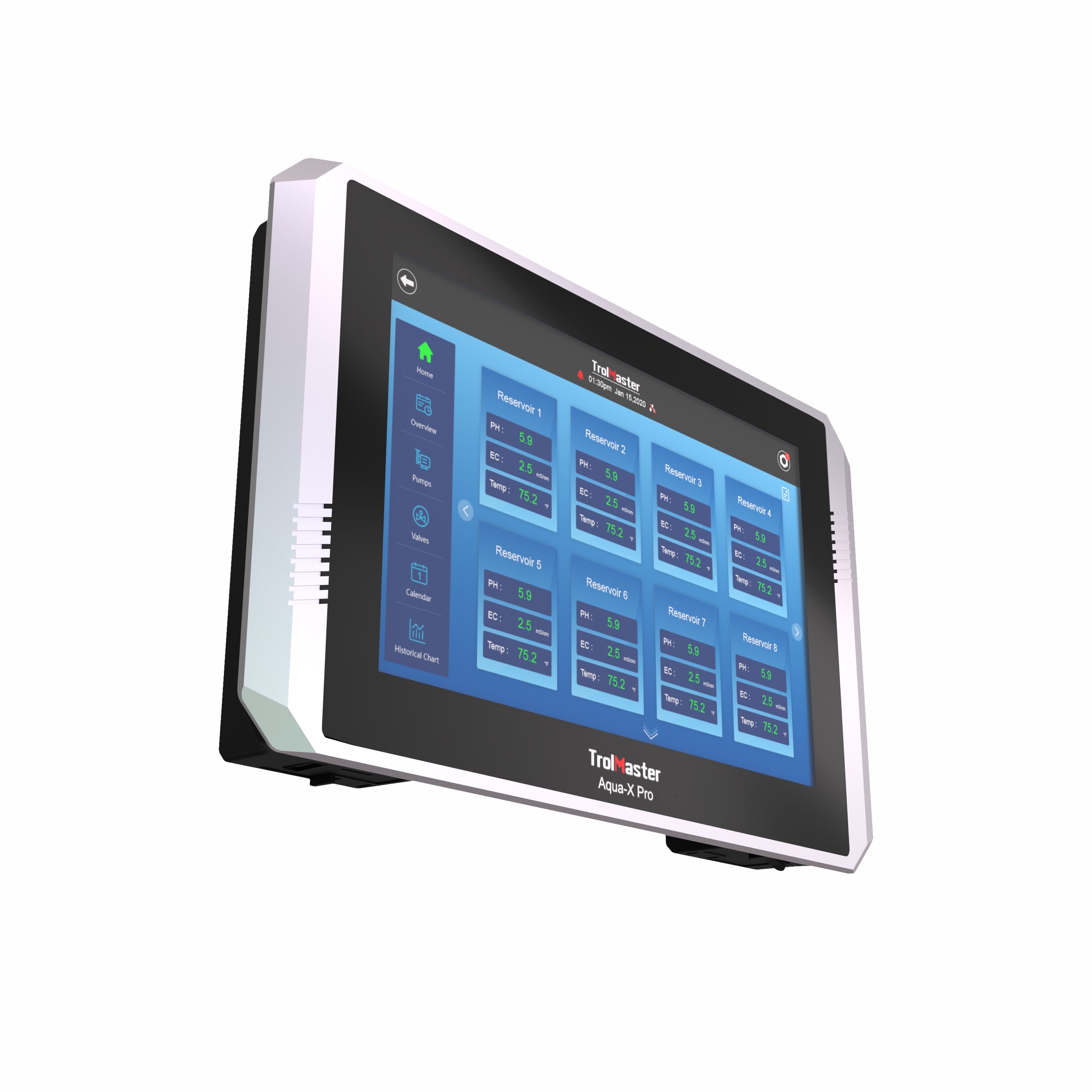

TrolMaster Aqua-X Pro Control System with AMP-3 Sensor Board (NFS-2)
The TrolMaster Aqua-X Pro Control System with AMP-3 Sensor Board (NFS-2) is an advanced irrigation controller designed for growers who need precise multi-zone automation, nutrient monitoring, and flexible irrigation management. Featuring a large 10-inch touchscreen, remote monitoring, and expanded control capacity, the Aqua-X Pro provides a centralized platform for hydroponic facilities, grow rooms, greenhouses, and controlled-environment agriculture.
The NFS-2 can control multiple pumps and irrigation solenoids while monitoring pH, EC, water temperature, substrate moisture, substrate temperature, and substrate EC with compatible sensors. The included AMP-3 Sensor Board allows compatible pH and EC/temperature probes to connect directly to the Aqua-X Pro system.
Advanced Irrigation Control
The Aqua-X Pro lets you configure each pump and solenoid with individual irrigation settings, giving growers precise control over multiple rooms, reservoirs, and crop zones.
The controller supports several advanced irrigation methods, including:
- Scheduled irrigation
- Recycle irrigation
- Feed on Demand
- Feed by Volume
- Auto-Fill
- Calendar-based crop scheduling
These options allow irrigation events to be triggered by time, substrate moisture, water volume, or reservoir conditions depending on the connected sensors and modules.
Feed on Demand and Crop Steering
When used with compatible TrolMaster WCS-1 or WCS-2 Water Content Sensors, the NFS-2 can continuously monitor moisture levels within the growing medium.
If substrate water content falls below a user-selected level, the Aqua-X Pro can automatically activate the irrigation cycle. This provides growers with a practical way to automate crop-steering strategies based on actual root-zone conditions rather than relying only on fixed timers.
Feed by Volume
When paired with a compatible TrolMaster Digital Flow Meter, the NFS-2 can control irrigation based on the actual volume of water or nutrient solution delivered.
Growers can select the desired irrigation volume for each event, allowing the system to stop irrigation once it dispenses the programmed amount. This provides an alternative to controlling irrigation solely by duration.
AMP-3 Sensor Board Included
The included TrolMaster AMP-3 Sensor Board connects compatible nutrient-solution sensors to the Aqua-X Pro controller.
With compatible probes connected, the AMP-3 can monitor:
- pH
- Electrical Conductivity (EC)
- Water temperature
The AMP-3 features its own LCD display for convenient on-site monitoring and connects to the NFS-2 using a standard RJ12 cable.
Key Features
- Advanced multi-zone irrigation controller
-
Large 10-inch touchscreen display
-
Controls up to 300 pumps
-
Controls up to 300 irrigation solenoids
-
Supports up to 50 nutrient sensors
-
Supports up to 50 growing-medium sensors
-
Includes TrolMaster AMP-3 Sensor Board
- Supports pH, EC, and water-temperature monitoring
- Supports substrate moisture, temperature, and EC monitoring
- Feed-on-demand irrigation
- Feed-by-volume irrigation
- Auto-Fill reservoir control
- Calendar-based multi-day irrigation schedules
- Flexible master-pump linking
- Historical data monitoring
- Mobile monitoring with the TrolMaster app
- Web-based control
- Suitable for hydroponics, grow rooms, greenhouses, and controlled-environment agriculture
Product Specifications
| Specification |
Details |
| Model |
NFS-2 |
| Product Type |
Aqua-X Pro Irrigation Control System |
| Included Sensor Board |
AMP-3 |
| Input Voltage |
100–240 VAC |
| Display |
10 in touchscreen |
| Maximum Pumps |
Up to 300 |
| Maximum Solenoids |
Up to 300 |
| Maximum Nutrient Sensors |
Up to 50 |
| Maximum Medium Sensors |
Up to 50 |
| Sensor Monitoring |
pH, EC, water temperature, water content, substrate temperature and substrate EC |
| Irrigation Modes |
Schedule, Recycle, Demand, Volume and Auto-Fill |
| Remote Monitoring |
TrolMaster mobile app and web-based control |
| Ingress Protection |
IP20 |
| Maximum Device Connection Distance |
3,281 ft (1,000 m) |
| Operating Temperature |
32–122°F (0–50°C) |
| Operating Humidity |
≤90% |
| Certifications |
ETL / FCC |
| Primary Application |
Advanced multi-zone irrigation and crop steering |
Compatible With
The TrolMaster Aqua-X Pro NFS-2 supports a wide range of TrolMaster irrigation modules and sensors, including:
- TrolMaster AMP-3 Sensor Board
- TrolMaster OA6-24 6-Output 24V Control Board
- TrolMaster OAT-24 12-Output 24V Control Board
- TrolMaster OA6-110 110V Control Board
- TrolMaster DSP-1 / DSP-2 Program Device Stations
- TrolMaster DFM-Series Digital Flow Meters
- TrolMaster WCS-1 and WCS-2 Water Content Sensors
- Compatible TrolMaster PPH-Series pH Sensors
- Compatible TrolMaster PCT-Series EC / Temperature Sensors
- TrolMaster WD-Series Water Detectors
The system can be expanded to meet the facility's irrigation, reservoir-monitoring, and crop-steering requirements.
Centralized Irrigation and Nutrient Management
The TrolMaster Aqua-X Pro NFS-2 combines irrigation automation, nutrient monitoring, substrate sensing, flow measurement, and remote system management into one centralized platform.
For growers managing multiple irrigation zones or more advanced cultivation facilities, the TrolMaster Aqua-X Pro Control System with AMP-3 Sensor Board (NFS-2) provides a scalable solution for precision watering, crop steering, reservoir monitoring, and automated irrigation control.
