TrolMaster Aqua-X 24V Control Board – 6 Valve (OA6-24)

Save 8%
TrolMasterSKU: GP-OA6-24

Sale price$ 134.95 Regular price$ 145.95
🍃 Earn 134 GrowClub points worth $1.35 off your next order
 More payment options
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

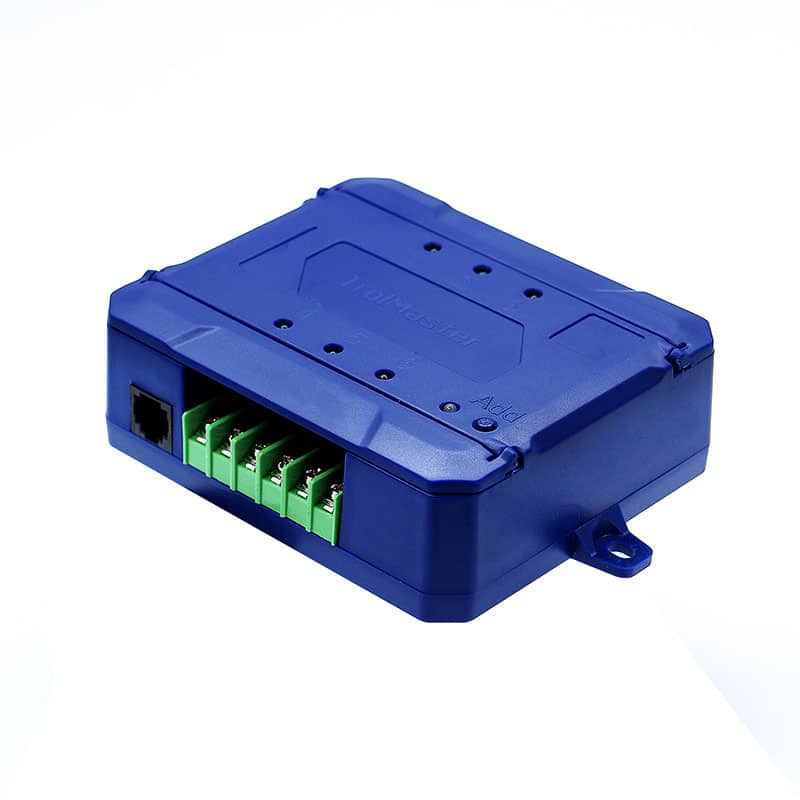

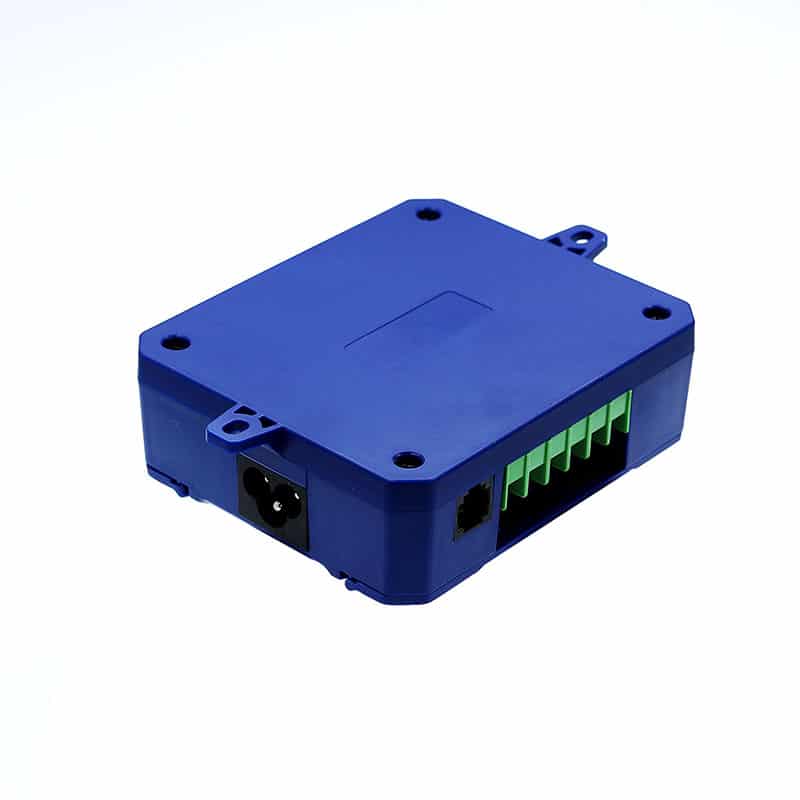

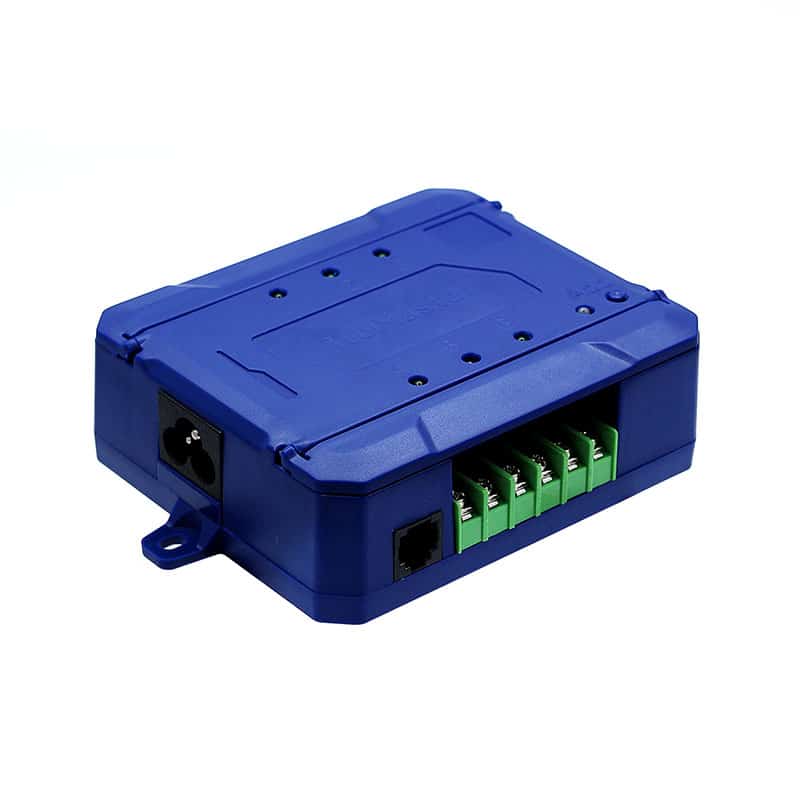

Discover TrolMaster Aqua-X 24V Control Board – 6 Valve (OA6-24)

The OA6-24 control board is designed to control multiple 24vac solenoid valves. It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves.

The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.

Features:

  • LED power indicator
  • Addressing button
  • 6 individually controlled 24V outputs
  • Individual LED indicator for each output
  • Double RJ12 cable sockets for daisy chain connectivity

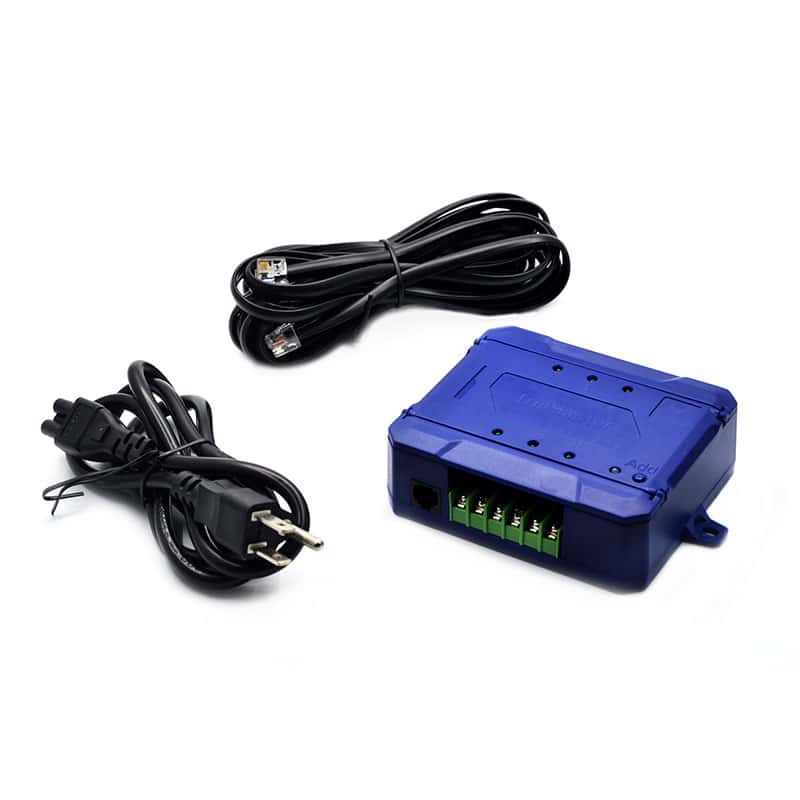

Package includes:

1 x TrolMasterr 24V Control Board - 6 valve
1 x TrolMaster 16ft RJ12 Cable
