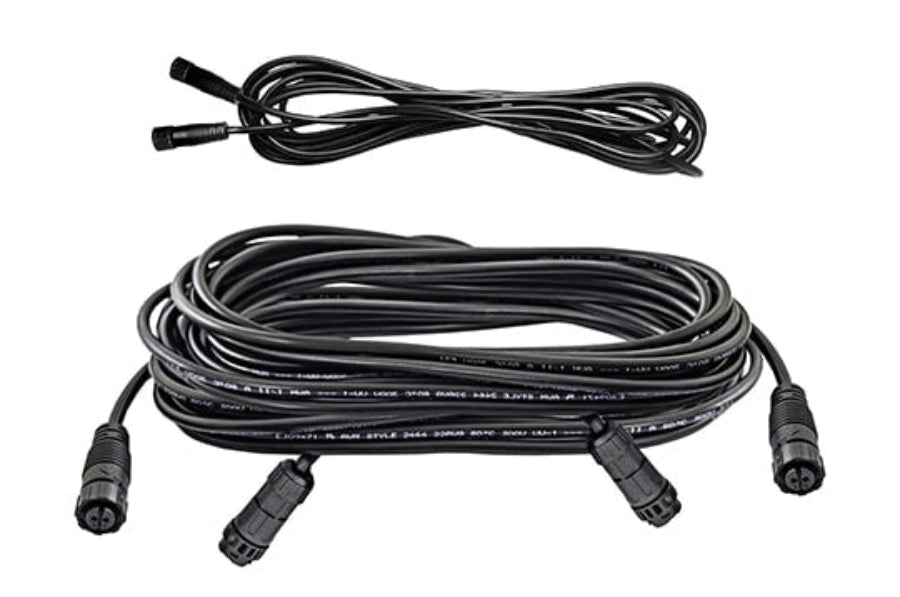

PhotonTek LED Driver + Dimming 5m Extension Cables for 1000W CO2 (x3)

The PhotonTek LED Driver + Dimming 5m Extension Cables for 1000W CO2 (x3) are designed specifically for growers who want to remotely position the driver of a compatible PhotonTek XT 1000W CO2 LED fixture. This professional three-cable extension kit provides the connections needed to move the driver up to 5 metres away from the lighting fixture while maintaining dependable power and dimming control.

Remote driver installation can be especially useful in grow rooms, commercial cultivation facilities, low-clearance environments, and professional indoor gardens where growers want greater flexibility in managing heat, equipment placement, and electrical connections.

The kit includes two 5 m power extension cables and one 5 m dimming extension cable, providing all three connections required for a remote PhotonTek XT 1000W CO2 driver setup.

Each 5 m power extension cable uses secure self-locking M19-2 male and female connectors and durable UL SJTW 2 × 16AWG wiring rated for 300V and 105°C. These heavy-duty cables maintain stable power transmission between the PhotonTek driver and LED fixture.

The included 5 m dimming extension cable maintains the dimming and control connection when the driver is positioned away from the fixture. It uses UL 21996 3 × 22AWG wiring rated for 300V and 105°C, with a VW-1 flame rating for added durability in professional installations.

All three extension cables are built to operate reliably across a wide temperature range, with a working temperature of -20°C to 105°C and a storage temperature of -25°C to 105°C.

The two power extension cables carry an IP65 protection rating, helping protect their connections from dust and moisture in demanding horticultural environments. The cable set is also RoHS compliant, making it a dependable accessory for professional PhotonTek lighting installations.

Key Features

• Genuine PhotonTek extension cable kit
• Designed for the PhotonTek XT 1000W CO2 LED
• Ideal for remote LED driver installation
• Includes 3 extension cables
• 2 × 5 m power extension cables
• 1 × 5 m dimming extension cable
• Extends driver-to-fixture connections by 5 metres
• Helps maintain stable power and dimming connections
• Ideal for grow rooms and commercial cultivation facilities
• Secure self-locking M19-2 connectors
• Power cables use UL SJTW 2 × 16AWG wiring
• Dimming cable uses UL 21996 3 × 22AWG wiring
• 300V cable rating
• Temperature rating up to 105°C
• Working temperature: -20°C to 105°C
• Storage temperature: -25°C to 105°C
• IP65-rated power extension cables
• Dimming cable features VW-1 flame rating
• RoHS compliant
• Helps create a cleaner and more flexible remote-driver installation

Specifications

• Product Code: PTEKM0022
• Product Type: LED driver power and dimming extension cable kit
• Compatibility: PhotonTek XT 1000W CO2 LED remote-driver installation
• Number of Cables: 3
• Cable Length: 5 m each
• Configuration: 2 power extension cables + 1 dimming extension cable

Power Extension Cables

• Quantity: 2
• Length: 5 m each
• Connector: M19-2 self-locking male and female
• Wire Gauge: UL SJTW 2 × 16AWG
• Voltage Rating: 300V
• Temperature Rating: 105°C
• Withstand Voltage Between Poles: 500 VAC / 2mA / 3 seconds
• Withstand Voltage Between Outer Cover and Electrode: 500 VAC / 2mA / 3 seconds
• Insulation Resistance: 100 MΩ @ 100V
• Working Temperature: -20°C to 105°C
• Storage Temperature: -25°C to 105°C
• IP Rating: IP65
• Compliance: RoHS

Dimming Extension Cable

• Quantity: 1
• Length: 5 m
• Connector: M19-2 self-locking male and female
• Wire Gauge: UL 21996 3 × 22AWG
• Voltage Rating: 300V
• Temperature Rating: 105°C
• Flame Rating: VW-1
• Withstand Voltage Between Poles: 500 VAC / 1mA / 3 seconds
• Withstand Voltage Between Outer Cover and Electrode: 500 VAC / 1mA / 3 seconds
• Insulation Resistance: 100 MΩ @ 100V
• Working Temperature: -20°C to 105°C
• Storage Temperature: -25°C to 105°C
• Compliance: RoHS

Designed for the XT 1000W CO2 LED

Unlike the standard two-cable PhotonTek driver extension kit, this version includes three cables to accommodate the connection requirements of the XT 1000W CO2 LED fixture.

The two power cables and one dimming cable allow growers to relocate the driver while preserving both electrical power and lighting-control functionality.

Flexible Remote Driver Installation

Moving the driver away from the fixture gives growers more freedom when designing a grow room. Remote installation can simplify equipment organization and lets you place the driver in a more convenient location while the LED fixture remains above the canopy.

With 5 m of additional cable length, growers have much more flexibility in driver placement.

Professional-Grade Cable Construction

The PhotonTek extension cables use durable, high-temperature wiring rated for 300V and 105°C. Their wide operating temperature range, secure self-locking connectors and RoHS-compliant construction make them suitable for demanding indoor horticultural installations.

The two power cables also feature IP65 protection, providing added resistance to dust and moisture.

What's Included

• 2 × PhotonTek 5 m LED Driver Power Extension Cables
• 1 × PhotonTek 5 m LED Driver Dimming Extension Cable

The PhotonTek LED Driver + Dimming 5m Extension Cables for 1000W CO2 (x3) are an excellent accessory for growers who want greater flexibility when remotely installing the driver of their PhotonTek XT 1000W CO2 LED fixture. With two 5 m power cables, one 5 m dimming cable, high-temperature 300V wiring, secure M19-2 connectors, IP65 protection on the power cables, and RoHS compliance, this kit provides a reliable, professional solution for remote driver installations.
