DAB EsyDock Max

Save 15%
DABSKU: DAB-60199045

Sale price$ 839.95 Regular price$ 990.00
🍃 Earn 839 GrowClub points worth $8.4 off your next order
  • Free Shipping over $149.99 Canada-wide
  • Ships discreetly
  • Ships in 3-5 business days
Bulk / Commercial Discounts and Rebates

Email us or call 888-349-0321 TODAY!

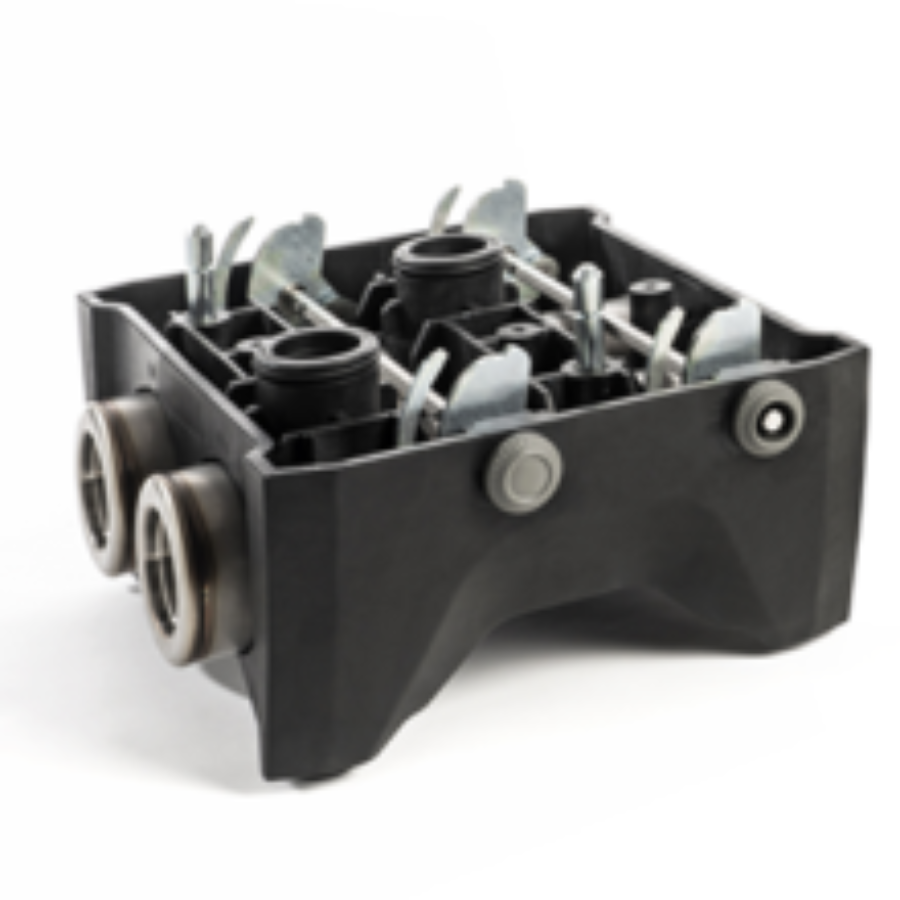

DAB EsyDock Max – Quick-Connect Docking Base for EsyBox Max

The DAB EsyDock Max is a hydraulic docking base designed for the DAB EsyBox Max water pressure booster system. It provides a secure connection between the pump and the plumbing network, simplifying installation, maintenance, and future pump replacement.

Designed for single-pump installations, the EsyDock Max features four hydraulic connection configurations, allowing installers to adapt the piping layout to different mechanical rooms and water distribution systems.

Its compact design and integrated anti-vibration feet help create a practical, stable, and quiet pumping installation.

Important: The EsyDock Max is a docking base, not a water pump. The DAB EsyBox Max pumping unit is sold separately.

Key Benefits

  • Specifically designed for DAB EsyBox Max.

  • Supports one EsyBox Max pumping unit.

  • Quick-connect design simplifies installation.

  • Four hydraulic connection configurations.

  • 2-inch NPT plumbing connections.

  • Integrated anti-vibration feet.

  • Allows convenient pump removal for maintenance.

  • Compact design for mechanical rooms.

  • Suitable for commercial water pressure boosting.

  • Supports DAB's modular On-Site Assembly (OSA) concept.

Why Choose the DAB EsyDock Max?

The EsyDock Max simplifies installing a commercial water pressure boosting system by separating the hydraulic connections from the pumping unit.

Installers can position and connect the docking base to the plumbing network before mounting the EsyBox Max pump.

This modular approach makes installation more manageable, particularly in confined mechanical rooms or locations where transporting a complete pumping assembly would be difficult.

The quick-connect design also provides convenient access when the pumping unit requires inspection, servicing, or replacement.

Flexible Hydraulic Connections

The EsyDock Max provides four hydraulic connection configurations, giving installers flexibility when positioning the suction and discharge piping.

This adaptability helps accommodate different plumbing arrangements without requiring a completely different pumping system.

Its integrated anti-vibration feet help minimize vibration transmission and support quieter operation.

Ideal Applications

  • Commercial water pressure boosting

  • DAB EsyBox Max single-pump installations

  • Apartment buildings and condominiums

  • Hotels and commercial properties

  • Institutional water distribution systems

  • Commercial greenhouse water supply

  • Mechanical rooms with limited space

  • Replacement or new EsyBox Max installations

Product Specifications

Specification Details
Brand DAB Pumps
Product EsyDock Max
Product Type Hydraulic Docking Base
Primary Compatibility DAB EsyBox Max
Pump Capacity One Pumping Unit
Hydraulic Connection Options Four Configurations
Plumbing Connections 2 in NPT
Approximate Dimensions (H × W × D) 9.1 × 15 × 15 in (231 × 381 × 381 mm)
Anti-Vibration Feet Integrated
Installation Fixed
Pump Included No
Application Water Pressure Booster Systems

Compatible DAB Products and Accessories

The EsyDock Max is designed for integration with DAB's modular EsyBox Max pumping system.

  • DAB EsyBox Max: Compatible electronic pressure booster pumping unit, sold separately.

  • DAB Esy I/O: Optional electronic expansion module for compatible EsyBox Max installations requiring external control, alarms, or Building Management System integration.

Other available docking configurations:

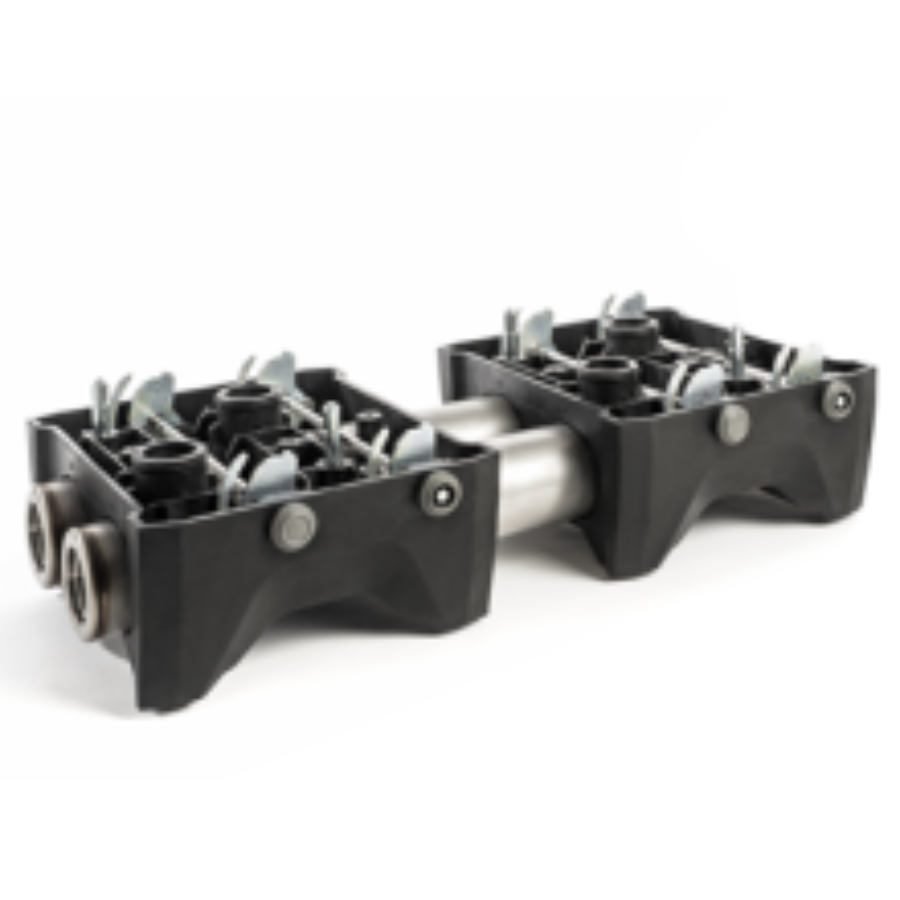

  • DAB 2 EsyDock Max: Docking base designed for two EsyBox Max pumping units.

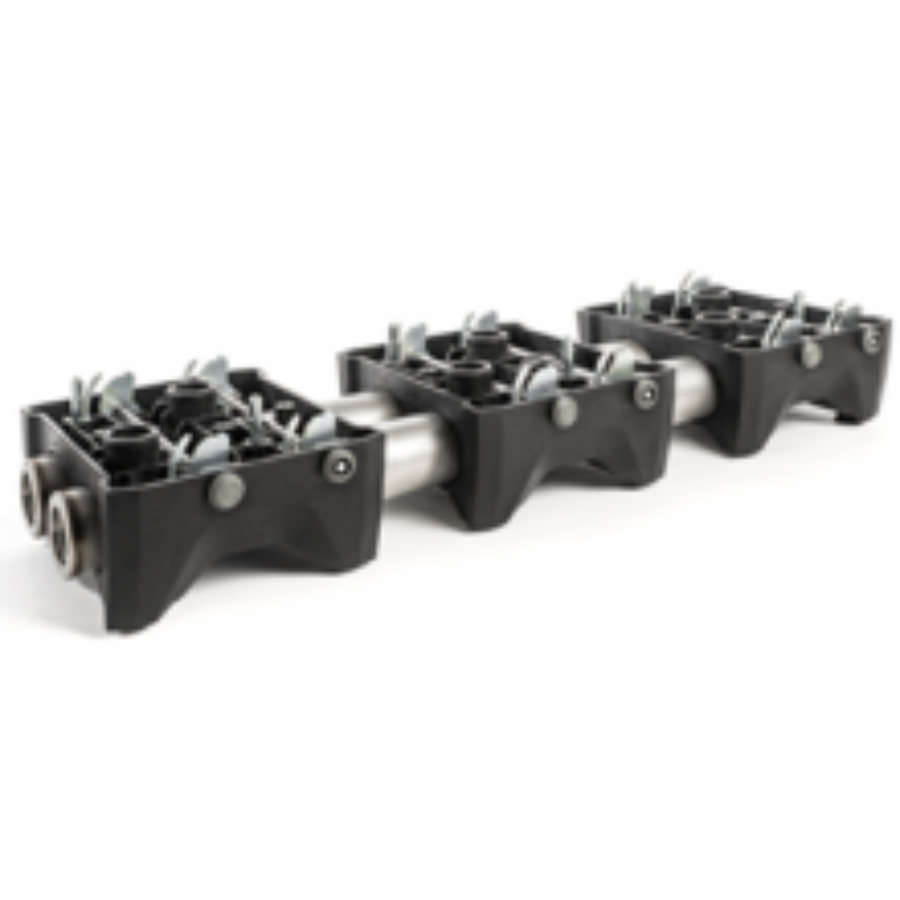

  • DAB 3 EsyDock Max: Docking base designed for three EsyBox Max pumping units.

These are separate docking configurations, not additional pumps included with the single EsyDock Max.

Installation and Maintenance

Install the EsyDock Max on a suitable level surface according to DAB's installation instructions.

Connect the suction and discharge piping using the appropriate hydraulic configuration and 2-inch NPT connections.

Mount the compatible EsyBox Max pumping unit onto the docking base and secure it according to the manufacturer's instructions.

Verify hydraulic connections, system pressure, and pump operation before commissioning.

Frequently Asked Questions (FAQ)

What is the DAB EsyDock Max used for?

The EsyDock Max connects a DAB EsyBox Max pumping unit to the plumbing network, simplifying installation and maintenance.

Does the EsyDock Max include a water pump?

No. It is a hydraulic docking base. The EsyBox Max pumping unit must be purchased separately.

What is the difference between EsyDock Max, 2 EsyDock Max, and 3 EsyDock Max?

The main difference is the number of pumps supported. EsyDock Max accommodates one pump, 2 EsyDock Max accommodates two pumps, and 3 EsyDock Max accommodates three pumps.

Is the EsyDock Max compatible with the standard EsyBox?

No. It is designed for EsyBox Max. The standard EsyBox uses its own compatible docking accessories.

Can the EsyDock Max be used in commercial buildings?

Yes. It is designed for EsyBox Max water pressure-boosting installations in commercial and multi-residential buildings.

Does the EsyDock Max maintain constant water pressure?

No. The docking base provides hydraulic connections. Constant-pressure regulation is performed by the compatible EsyBox Max pumping unit.
