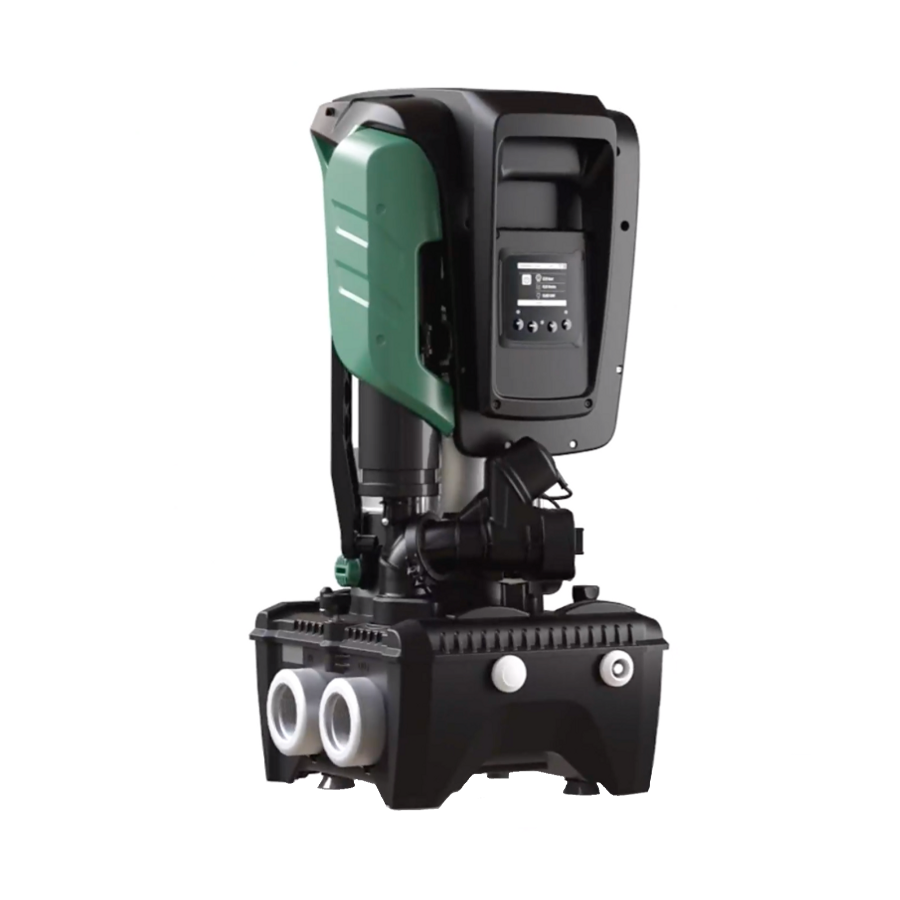

DAB EsyBox Max – Smart Commercial Water Pressure Booster Pump

The DAB EsyBox Max is an advanced, variable-speed water pressure booster pump designed to maintain constant pressure in commercial buildings, multi-residential properties, and professional water distribution systems.

Equipped with an integrated variable frequency drive (VFD), the EsyBox Max automatically adjusts motor speed according to water demand, providing reliable pressure while optimizing energy consumption. Its water-cooled permanent magnet motor supports efficient, quiet operation.

The modular design allows single-pump or multi-pump installations, making it suitable for projects requiring flexible capacity and dependable water distribution.

Important – Docking Base Sold Separately: The DAB EsyBox Max is supplied as a pumping unit only. A compatible DAB EsyDock Max hydraulic docking base is required for installation and must be purchased separately. Choose the appropriate docking base for your installation.

Key Benefits

  • Automatic constant-pressure regulation.

  • Energy-efficient variable-speed motor.

  • Maximum flow up to 76.6 GPM (290 L/min) per unit.

  • Maximum head up to 315 ft (96 m), depending on model.

  • Adjustable pressure from 15 to 174 PSI (1–12 bar).

  • Water-cooled permanent magnet motor.

  • Integrated pressure sensors and expansion tank.

  • Built-in LCD display and Wi-Fi connectivity.

  • Compatible with DAB DConnect remote monitoring.

  • Modular single-pump and multi-pump configurations.

  • Compact vertical installation.

Why Choose the DAB EsyBox Max?

Unlike conventional fixed-speed booster pumps, the EsyBox Max automatically adjusts motor performance as water demand increases or decreases.

This technology helps maintain stable pressure while reducing unnecessary energy consumption and mechanical stress.

Its modular design also simplifies installation and maintenance. Compatible EsyDock Max docking bases allow pumping units to be installed, serviced, or replaced without rebuilding the entire hydraulic system.

Intelligent Pressure Control and Connectivity

The EsyBox Max integrates electronic pressure regulation, an intuitive LCD display, and wireless communication.

Operating pressure can be adjusted between 15 and 174 PSI (1–12 bar), with a factory setting of approximately 43 PSI (3 bar).

Through compatible DAB DConnect services, users can monitor operating conditions, manage system settings, and receive notifications remotely.

Available EsyBox Max Models

The EsyBox Max range includes different hydraulic and electrical configurations.

  • EsyBox Max 45/120: Suitable for medium-demand pressure boosting applications.

  • EsyBox Max 60/120: Provides increased hydraulic performance for demanding water distribution systems.

  • EsyBox Max 85/120: Designed for applications requiring greater pressure capacity.

Electrical requirements and hydraulic performance vary by model. Select the appropriate version according to the required flow rate, operating pressure, and available power supply.

Ideal Applications

  • Commercial water pressure boosting

  • Multi-residential buildings and condominiums

  • Hotels and institutional facilities

  • High-rise water distribution

  • Commercial greenhouse water supply

  • Automated water distribution systems

  • Professional multi-pump installations

Product Specifications

Specification Details
Brand DAB Pumps
Product EsyBox Max
Pump Type Electronic Multistage Pressure Booster
Motor Control Integrated Variable Frequency Drive
Maximum Flow Rate Up to 76.6 GPM (290 L/min) per unit
Maximum Head Up to 315 ft (96 m), model-dependent
Adjustable Pressure 15–174 PSI (1–12 bar)
Factory Pressure Setting Approximately 43 PSI (3 bar)
Maximum Operating Pressure 174 PSI (12 bar)
Maximum Inlet Pressure 73 PSI (5 bar)
Single-Phase Power Supply 208–240V, 50/60 Hz
Three-Phase Power Supply 380–480V, 50/60 Hz
Maximum Suction Lift 13.1 ft (4 m), with foot valve
Protection Rating IPX5
Motor Insulation Class F
Impeller Material Technopolymer
Installation Fixed, Vertical
Connectivity Wi-Fi / DConnect Compatible
Required Docking Base DAB EsyDock Max, Sold Separately
Pumped Liquid Clean Water

Hydraulic performance and electrical requirements vary by EsyBox Max model.

Compatible DAB Products and Accessories

The EsyBox Max requires a compatible docking base and supports additional equipment for larger installations.

  • DAB EsyDock Max: Required hydraulic docking base for one EsyBox Max pumping unit. Sold separately.

  • DAB 2 EsyDock Max: Docking base for two compatible EsyBox Max units.

  • DAB 3 EsyDock Max: Docking base for three compatible EsyBox Max units.

  • DAB Esy I/O: Electronic expansion module for external controls, alarms, and Modbus RTU integration.

  • DAB DConnect: Remote monitoring and management for supported installations.

Please note: Docking bases and optional accessories are not included with the standalone EsyBox Max pumping unit.

Installation and Operation

Install the EsyBox Max vertically on the appropriate EsyDock Max docking base, purchased separately.

Connect the suction and discharge piping and the electrical supply according to DAB's installation instructions.

Configure the operating pressure, verify system performance, and activate compatible remote monitoring when required.

Frequently Asked Questions (FAQ)

What is the DAB EsyBox Max used for?

It provides constant-pressure water boosting for commercial buildings, multi-residential properties, and professional water distribution systems.

Does the DAB EsyBox Max include the EsyDock Max docking base?

No. The EsyBox Max is sold as a pumping unit only. A compatible EsyDock Max docking base is required and must be purchased separately.

Which EsyDock Max should I purchase?

Choose the standard EsyDock Max for one pump, 2 EsyDock Max for two pumps, or 3 EsyDock Max for three pumps.

What is the difference between DAB EsyBox and EsyBox Max?

The standard EsyBox is primarily designed for residential and smaller installations. The EsyBox Max provides greater capacity and modular expansion for commercial systems.

Can multiple EsyBox Max pumps operate together?

Yes. Compatible docking bases and wireless communication support multi-pump configurations.

Does the EsyBox Max maintain constant water pressure?

Yes. Its integrated variable frequency drive automatically adjusts motor speed according to water demand.

Can the EsyBox Max be monitored remotely?

Yes. Compatible DAB DConnect services support remote monitoring and system management.
