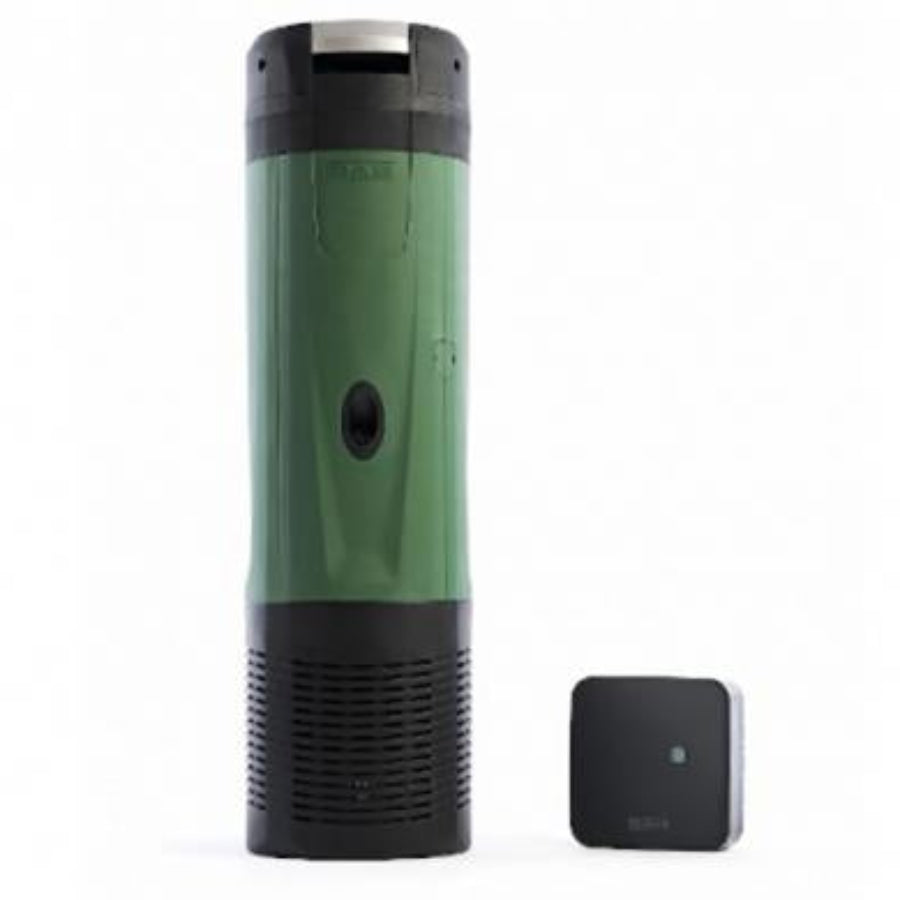

DAB EsyBox Diver – Smart Submersible Water Pump with Constant Pressure
The DAB EsyBox Diver is an intelligent, multistage submersible water pump designed to deliver consistent water pressure for greenhouse irrigation, rainwater harvesting, residential water supply, and clean water distribution.
Featuring an integrated variable frequency drive (VFD), the EsyBox Diver automatically adjusts motor speed according to water demand, helping maintain constant pressure while optimizing energy consumption.
With a maximum flow rate of 31.7 GPM (120 L/min) and a maximum head of 180 ft (55 m), this advanced pump combines powerful performance, electronic protection, and smart connectivity in a compact design.
For installations requiring an external floating water intake, the DAB EsyBox Diver X is also available.
Key Benefits
-
Maximum flow rate of 31.7 GPM (120 L/min).
-
Maximum head of 180 ft (55 m).
-
Automatic constant-pressure regulation.
-
Integrated energy-efficient variable speed drive.
-
Built-in dry-run and overheating protection.
-
Integrated non-return valve.
-
Wi-Fi connectivity through DAB DConnect Box 2.
-
Remote monitoring and pressure adjustments.
-
IP68-rated submersible construction.
-
Adjustable bottom water intake.
-
Suitable for vertical or horizontal installation.
-
Ideal for irrigation and clean water distribution.
Why Choose the DAB EsyBox Diver?
Unlike conventional fixed-speed pumps, the EsyBox Diver automatically adjusts its performance as water demand changes.
When irrigation valves, sprinklers, or water outlets open and close, its electronic controller maintains the selected pressure without requiring continuous manual adjustments.
This technology helps reduce pressure fluctuations, unnecessary energy consumption, and frequent pump cycling.
For greenhouse operators, homeowners, and horticultural growers, the EsyBox Diver provides dependable water delivery with convenient electronic control.
Intelligent Pressure Control and Connectivity
The EsyBox Diver maintains adjustable water pressure through its integrated variable speed technology.
The factory pressure setting is approximately 43 PSI (3 bar), adjustable between 14 and 80 PSI (1–5.5 bar).
With compatible DAB DConnect equipment, users can remotely monitor operating conditions, manage pressure settings, and receive notifications through supported applications.
Ideal Applications
-
Greenhouse and horticultural irrigation
-
Automated drip irrigation systems
-
Rainwater harvesting
-
Residential water pressure boosting
-
Underground cisterns and storage tanks
-
Reverse osmosis (RO) water storage
-
Garden sprinkler systems
-
Suitable shallow wells
-
Clean water distribution
Product Specifications
| Specification |
Details |
| Brand |
DAB Pumps |
| Product |
EsyBox Diver |
| Pump Type |
Electronic Multistage Submersible Pump |
| Motor Control |
Integrated Variable Frequency Drive |
| Maximum Flow Rate |
31.7 GPM (120 L/min) |
| Maximum Head |
180 ft (55 m) |
| Power Supply |
230V, Single Phase, 50/60 Hz |
| Adjustable Pressure |
14–80 PSI (1–5.5 bar) |
| Factory Pressure |
Approximately 43 PSI (3 bar) |
| Maximum Immersion Depth |
39 ft (12 m), Standard Model |
| Liquid Temperature |
32–131°F (0–55°C) |
| Pump Diameter |
7.28 in (185 mm) |
| Outlet Connection |
1¼ in NPT |
| Water Intake |
Adjustable Bottom Intake |
| Power Cable |
49 ft (15 m) |
| Electrical Plug |
NEMA 6-15P |
| Protection Rating |
IP68 |
| Motor Insulation |
Class F |
| Integrated Protection |
Dry-Run and Thermal Protection |
| Connectivity |
DConnect Box 2 Compatible |
| Installation |
Vertical or Horizontal |
| Pumped Liquid |
Clean Water |
Compatible DAB Accessories
The EsyBox Diver supports accessories for enhanced monitoring, installation flexibility, and water-level management.
-
DAB DConnect Box 2: Enables remote pump monitoring, pressure management, and system notifications.
-
DAB NFC Float Switch: Detects low water levels and helps prevent dry running.
-
DAB NFC Level Sensor: Monitors tank water levels through compatible DAB applications.
-
DAB DOC68: Allows suitable surface-mounted installations.
-
Additional Pressure Tank: Helps reduce frequent starts and pressure fluctuations in certain installations.
Accessories and package contents may vary by configuration.
Installation and Operation
Install the EsyBox Diver inside a suitable tank, cistern, or well according to DAB's instructions.
Connect the discharge line to the 1¼-inch NPT outlet, keeping the intake clear of sediment.
Connect the pump to a compatible 230V single-phase electrical supply and configure the desired operating pressure.
For remote monitoring, connect the appropriate DAB equipment and complete the application setup.
Frequently Asked Questions (FAQ)
What is the DAB EsyBox Diver used for?
It provides constant-pressure water supply for irrigation, rainwater harvesting, residential applications, and clean water distribution.
Does the EsyBox Diver maintain constant pressure?
Yes. Its variable frequency drive automatically adjusts motor speed according to water demand.
What is the difference between EsyBox Diver and EsyBox Diver X?
The standard model uses an integrated bottom water intake. The EsyBox Diver X features a threaded suction inlet compatible with an optional floating suction kit, allowing water to be drawn above sediment in storage tanks.
Does the EsyBox Diver X include the floating suction kit?
Not necessarily. The kit may be sold separately depending on the selected package.
Can the EsyBox Diver be used for greenhouse irrigation?
Yes. It is suitable for properly designed greenhouse and automated irrigation systems.
Can the pump be monitored remotely?
Yes. Compatible DAB connectivity equipment supports remote monitoring and pressure management.
