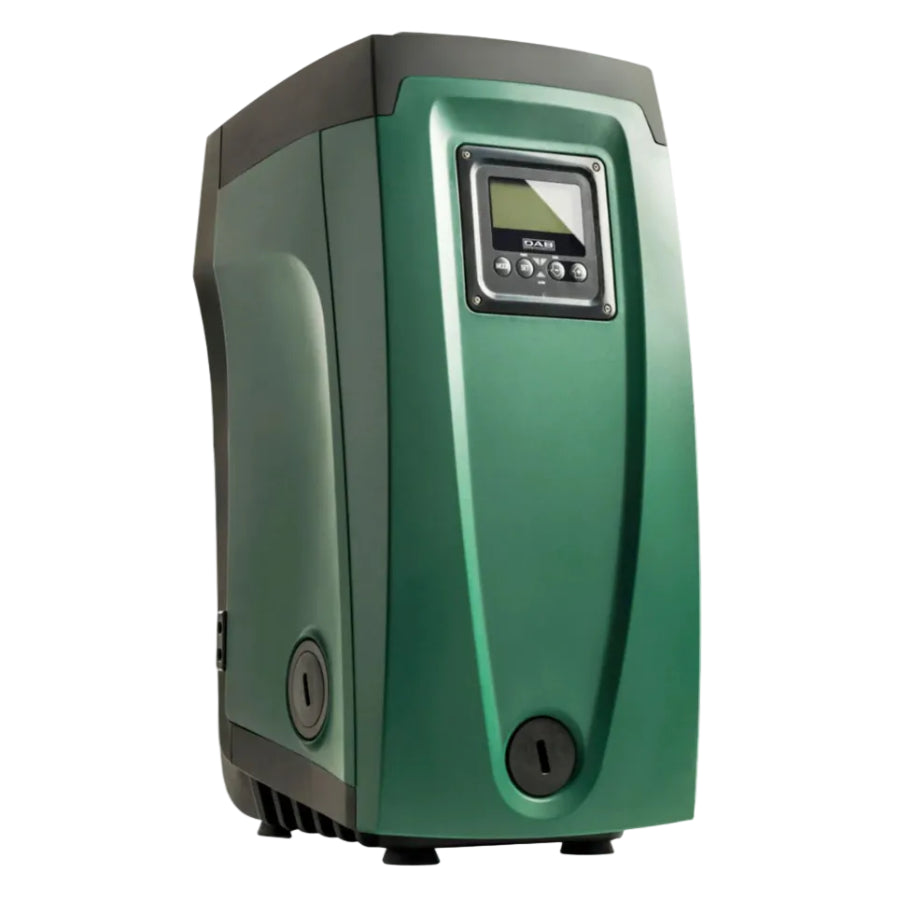

DAB EsyBox – Smart Water Pressure Booster Pump with Variable Speed
The DAB EsyBox is an intelligent, self-priming water pressure booster pump designed to deliver consistent water pressure for residential water supply, greenhouse irrigation, rainwater harvesting, and clean water distribution.
Featuring an integrated variable frequency drive (VFD), the EsyBox automatically adjusts motor speed according to water demand, maintaining constant pressure while helping reduce energy consumption.
With a maximum flow rate of 32 GPM (121 L/min) and a maximum head of 210 ft (64 m), this compact, all-in-one system combines a multistage pump, pressure and flow sensors, an integrated expansion tank, and an easy-to-use LCD display.
Key Benefits
-
Maximum flow rate of 32 GPM (121 L/min).
-
Maximum head of 210 ft (64 m).
-
Automatic constant-pressure regulation.
-
Energy-efficient variable speed technology.
-
Quiet operation, approximately 45 dB.
-
Integrated 0.5 US gal (1.9 L) expansion tank.
-
Self-priming design with a suction lift up to 26 ft (8 m).
-
Built-in pressure and flow sensors.
-
High-resolution LCD display.
-
Horizontal or vertical installation.
-
Wireless communication for compatible multi-pump systems.
-
Compact design for residential and irrigation applications.
Why Choose the DAB EsyBox?
Unlike conventional fixed-speed pumps, the EsyBox adjusts its performance automatically as water demand changes.
When faucets, irrigation valves, or sprinklers open and close, its electronic controller helps maintain the selected pressure without continuous manual adjustments.
The water-cooled motor, sound-absorbing housing, and anti-vibration feet contribute to exceptionally quiet operation.
Its integrated components also simplify installation by reducing the need for separate pressure-control equipment.
Intelligent Pressure Control
The EsyBox combines an electronic inverter, pressure sensors, and flow monitoring to deliver a stable water supply.
Its high-resolution LCD display allows users to monitor system operation, adjust pressure settings, and access important operating information.
The variable speed motor helps reduce unnecessary energy consumption and minimizes pressure fluctuations during changing water demand.
Ideal Applications
-
Residential water pressure boosting
-
Greenhouse and horticultural irrigation
-
Automated drip irrigation
-
Rainwater harvesting systems
-
Water storage tanks and cisterns
-
Garden sprinkler systems
-
Suitable shallow wells
-
Clean water distribution
Product Specifications
| Specification |
Details |
| Brand |
DAB Pumps |
| Product |
EsyBox |
| Pump Type |
Self-Priming Multistage Booster Pump |
| Motor Control |
Integrated Variable Frequency Drive |
| Maximum Flow Rate |
32 GPM (121 L/min) |
| Maximum Head |
210 ft (64 m) |
| Power Supply |
230V, Single Phase, 50/60 Hz |
| Maximum Suction Lift |
26 ft (8 m) |
| Maximum System Pressure |
118 PSI (8 bar) |
| Integrated Expansion Tank |
0.5 US gal (1.9 L) |
| Operating Noise |
Approximately 45 dB |
| Liquid Temperature, Domestic Use |
32–95°F (0–35°C) |
| Maximum Ambient Temperature |
102°F (39°C) |
| Motor Protection Rating |
IPX4 |
| Motor Insulation |
Class F |
| Display |
High-Resolution LCD |
| Connectivity |
Wireless Multi-Pump Communication |
| Installation |
Horizontal or Vertical |
| Pumped Liquid |
Clean Water |
Compatible DAB Accessories
The EsyBox supports accessories that provide additional installation options, system expansion, and connectivity.
-
DAB EsyWall: Wall-mounting kit for convenient installation and space management.
-
DAB EsyDock: Installation base designed for simplified connection and removal of a single EsyBox pump.
-
DAB EsyTwin: Twin-pump docking system for installations requiring additional flow capacity or a standby pump.
-
DAB EsyTank: Integrated water storage solution designed for compatible EsyBox installations.
-
DAB EsyLink: Wireless interface for external inputs, alarms, and compatible control devices.
-
DAB DConnect: Compatible remote monitoring solution for supported configurations.
-
Additional Expansion Tank: Recommended for certain installations to reduce frequent cycling and help protect against water hammer.
Accessories may be sold separately. Verify compatibility and package contents before ordering.
Installation and Operation
Install the EsyBox in a suitable dry, protected location, either horizontally or vertically.
Connect the suction and discharge lines according to DAB's installation instructions, ensuring proper priming and an adequate clean water supply.
Connect to a compatible 230V electrical supply, configure the desired pressure using the LCD display, and verify system operation.
Frequently Asked Questions (FAQ)
What is the DAB EsyBox used for?
It provides constant water pressure for homes, greenhouses, irrigation systems, and clean water distribution.
Does the EsyBox maintain constant pressure?
Yes. Its integrated variable frequency drive automatically adjusts motor speed according to water demand.
Is the DAB EsyBox a submersible pump?
No. The EsyBox is a surface-mounted booster pump. For submerged installations, DAB offers the EsyBox Diver.
Can the EsyBox be used for greenhouse irrigation?
Yes. It is suitable for properly designed irrigation systems requiring consistent water pressure.
Does the EsyBox require an additional pressure tank?
It includes a small integrated expansion tank. DAB recommends an additional pressure tank for certain installations to reduce cycling and manage pressure fluctuations.
Can multiple EsyBox pumps operate together?
Yes. Compatible docking accessories and wireless communication allow multi-pump systems for increased capacity or backup operation.
