AutoPot FlexiPot 16 XL System Kit

The AutoPot FlexiPot 16 XL System Kit is an automatic gravity-fed irrigation system designed for larger grow rooms, greenhouses and professional cultivation environments. Combining AutoPot’s proven irrigation technology with 16 high-performance 5 gal (20 L) fabric FlexiPots, this system efficiently waters multiple plants automatically without electricity, water pumps, or timers.

Each plant has its own 1Pot XL tray, AQUAvalve5, and FlexiPot, so water or compatible nutrient solution is supplied automatically based on the water level in each tray.

You can configure the system with or without a reservoir. With a reservoir, the FlexiPot 16 XL uses a 225 L (approximately 59 gal) FlexiTank, providing a practical water supply for a 16-site, gravity-fed irrigation setup.

16 Individually Controlled Growing Sites

The AutoPot FlexiPot 16 XL System Kit provides 16 individual growing modules, each controlled by its own AQUAvalve5.

Rather than watering each plant on a fixed timer schedule, each AQUAvalve5 responds independently to the water level in its tray. Once a plant has used the available water, the valve allows the tray to refill before automatically shutting off the supply again.

This provides automatic irrigation with:

• No electricity required
• No water pump required
• No irrigation timer required
• Individual water-level control for every plant
• Reduced daily hand watering
• A modular configuration that can adapt to your growing space

5 gal (20 L) Fabric FlexiPots

The system includes 16 x 5 gal (20 L) fabric FlexiPots designed specifically for use with AutoPot 1Pot XL trays.

The porous fabric construction allows greater gas exchange around the growing medium and root zone than conventional rigid containers.

As roots reach the FlexiPot's porous walls, exposure to air naturally discourages root tips from continuing outward. This process, commonly known as air pruning, encourages secondary root development while helping reduce excessive root circling.

The result is a dense, fibrous root structure that can efficiently access moisture and nutrients throughout the growing medium.

Benefits of FlexiPot Fabric Containers

• Capacity: 5 gal (20 L) per pot
• Porous fabric construction
• Encourages natural root air pruning
• Helps reduce excessive root circling
• Supports dense, fibrous root development
• Allows increased gas exchange through the growing medium
• Made from BPA-free and lead-free material
• Lightweight compared with rigid plastic containers
• Durable and reusable
• Easier to transport and store than large rigid pots

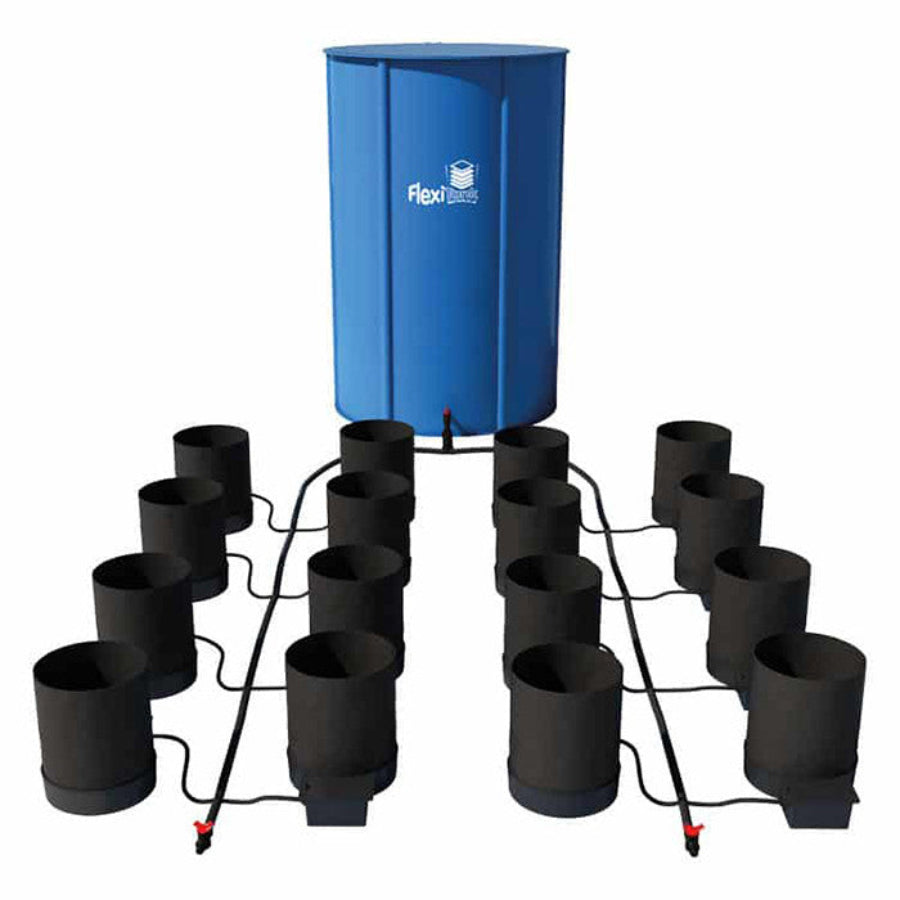

225 L FlexiTank Reservoir Option

The AutoPot FlexiPot 16 XL System Kit can be configured:

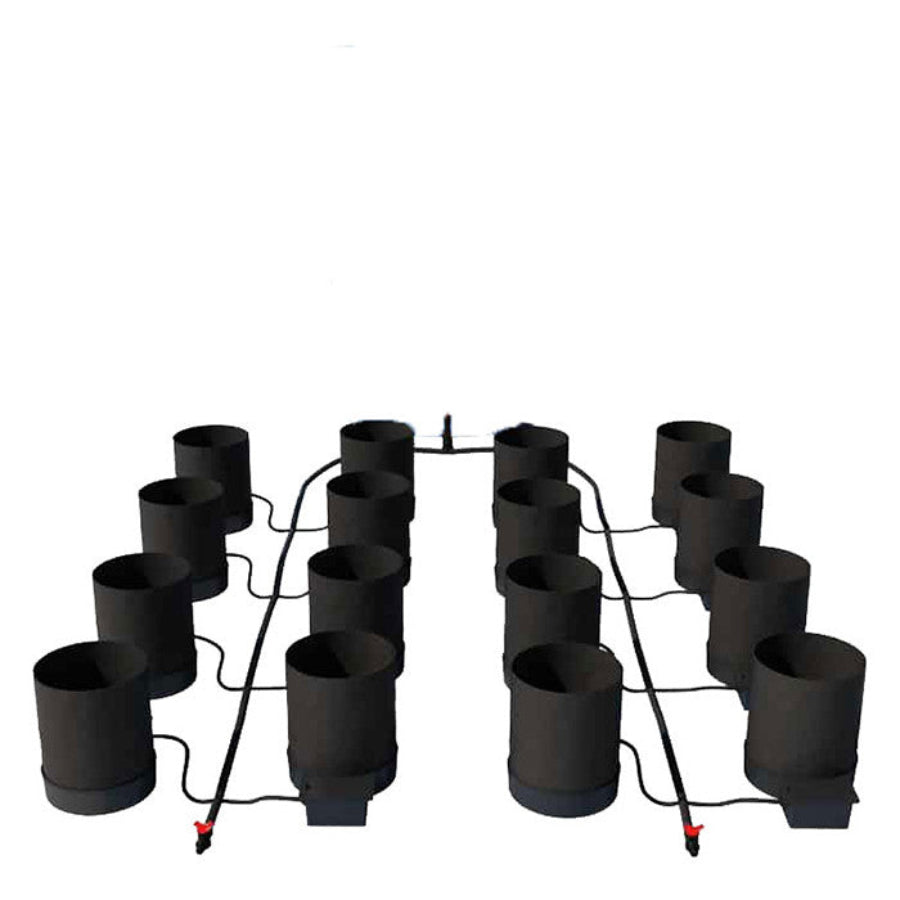

• Without a reservoir, for integration with an existing compatible reservoir
• With a 225 L FlexiTank (approximately 59 gal)

The 225 L FlexiTank provides a convenient reservoir capacity for the 16-site irrigation system.

Approximate FlexiTank dimensions:

• Capacity: 225 L (approximately 59 gal)
• Diameter: approximately 25 in (63.5 cm)
• Height: approximately 31.9 in (81 cm)

For reliable gravity-fed operation, elevate the reservoir at least 6 in (15 cm) above the highest AQUAvalve5.

Efficient Irrigation Network

The FlexiPot 16 XL uses a larger main distribution pipe and smaller feeder tubing to deliver water efficiently throughout the system.

The irrigation network uses:

• Main irrigation pipe: 16 mm OD (approximately 5/8 in)
• Feeder tubing: 9 mm OD (approximately 3/8 in)
• 16 individual AQUAvalve5 units
• Tee and cross connectors to distribute water to individual modules
• Inline taps to isolate sections of the irrigation network

This modular design lets you arrange the 16 growing sites to match your cultivation area's dimensions and layout.

Key Features

• Complete automatic irrigation system for 16 plants
• Includes 16 x 5 gal (20 L) FlexiPots
• Includes 16 x 1Pot XL trays and lids
• Includes 16 x AQUAvalve5
• Gravity-fed operation
• No electricity required
• No water pump required
• No irrigation timer required
• Each growing site controls its water supply independently
• Fabric pots promote natural root air pruning
• Helps reduce root circling
• Encourages dense secondary root development
• Compatible with free-draining growing substrates
• Uses 16 mm main pipe
• Uses 9 mm feeder tubing
• Includes PotSock Round root-control accessories
• Modular layout allows pots to be repositioned as plants grow
• Suitable for grow rooms, greenhouses and professional cultivation
• Available with or without a 225 L (59 gal) FlexiTank

What’s Included

The AutoPot FlexiPot 16 XL System Kit includes:

• 16 x 1Pot XL Trays and Lids
• 16 x 5 gal (20 L) Fabric FlexiPots
• 16 x AQUAvalve5
• 16 x PotSock Round
• 16 x 9 mm (3/8 in) Top Hat Grommets
• 8 x 16 mm to 9 mm Cross Connectors
• 8 x 16 mm Tee Connectors
• 2 x 16 mm Inline Taps
• 1 x 16 mm Click-Fit Filter
• Approximately 26.2 ft (8 m) of 9 mm (3/8 in) tubing
• Approximately 26.2 ft (8 m) of 16 mm (5/8 in) main pipe
• 1 x Instruction Sheet
• Optional 225 L (59 gal) FlexiTank, depending on the configuration selected

PotSock Round Root Control

Fit each FlexiPot with a PotSock Round at its base when used with an AutoPot irrigation system.

The PotSock helps prevent roots from growing out of the fabric container and entering the irrigation tray or AQUAvalve area. One PotSock Round is included for each of the 16 FlexiPots.

Proper root control helps maintain reliable AQUAvalve operation and simplifies routine system maintenance.

Flexible Growing Layout

Because the AutoPot XL trays operate as individual modules, growers are not restricted to one permanently fixed configuration.

Growers can reposition individual pots and trays as plants grow, creating extra spacing without rebuilding the entire irrigation network.

AutoPot lists an approximate floor space requirement of:

• 8.2 ft x 11.5 ft (2.5 m x 3.5 m)

This measurement excludes the reservoir and may vary according to the final arrangement of the growing modules.

Reusable and Low-Maintenance

AutoPot FlexiPots are designed for repeated use. After each crop, you can let the fabric pots dry, brush them to remove loose growing medium and fine roots, and then clean them before the next growing cycle.

Because the system operates through gravity and mechanical AQUAvalve5 control, no electrical irrigation controller, pump or timer is required during normal operation.

Regular inspection and cleaning of the reservoir, filter, tubing, trays and AQUAvalve5 units will help maintain reliable water flow throughout the complete 16-site installation.

Important Indoor Humidity Consideration

Fabric pots expose more growing-medium surface area to the surrounding air than rigid plastic containers. Using 16 FlexiPots indoors can increase humidity in the growing environment.

Adequate ventilation, air circulation, dehumidification and environmental monitoring are therefore recommended when operating multiple FlexiPots indoors.

Reliable Automatic Irrigation for 16 Plants

The AutoPot FlexiPot 16 XL System Kit combines the convenience of a 16-site automatic irrigation network with the flexibility and root-zone benefits of reusable fabric pots.

Whether you're outfitting a grow room, expanding a greenhouse, or reducing the labour of manual watering, the FlexiPot 16 XL offers a practical, modular, low-maintenance approach to automatic irrigation.
