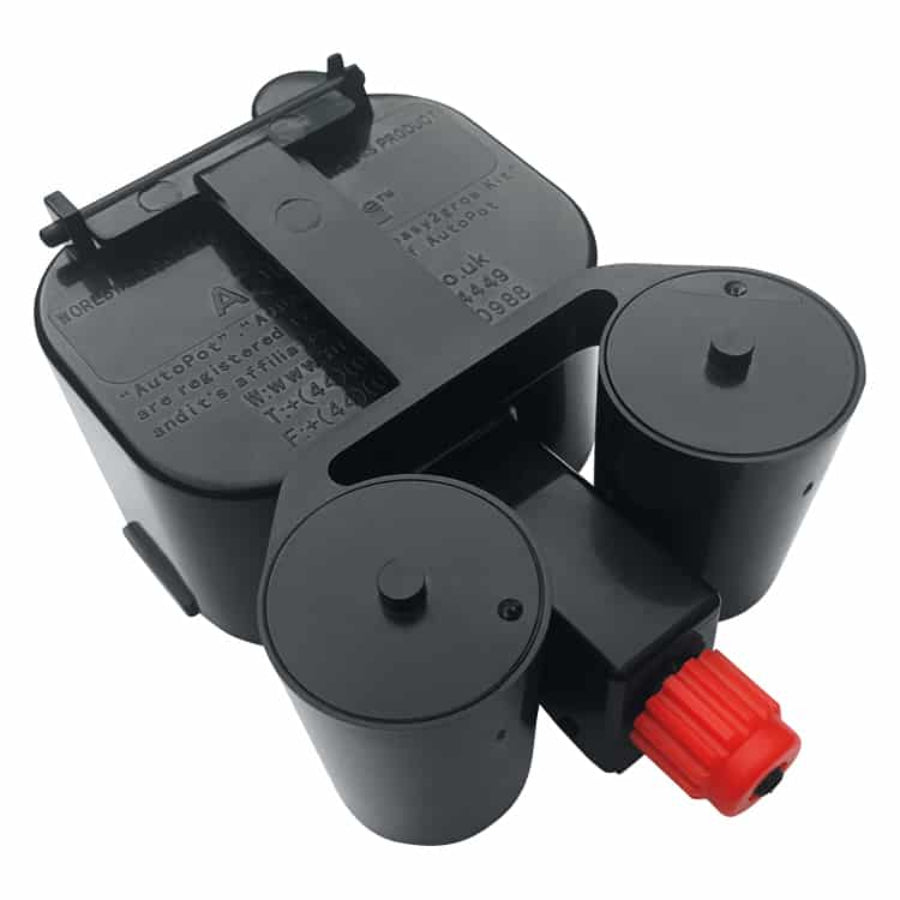

AutoPot AQUAvalve5
The AutoPot AQUAvalve5 is the gravity-fed water control valve at the heart of modern AutoPot automatic watering systems. Designed to automatically regulate the delivery of water or nutrient solution to plants, the AQUAvalve5 operates without irrigation pumps, timers, electricity, computers, or mains water pressure.
Once connected to a compatible reservoir, the AQUAvalve5 allows the tray to fill to a predetermined level before automatically stopping the flow. After the plants have used the available solution, the valve opens again and repeats the cycle.
Featuring an improved 5 mm / approximately 1/4 in inlet and compatibility with 3/8 in / 9 mm AutoPot pipework, the AQUAvalve5 provides faster flow, easier maintenance, and a reduced risk of blockages compared with earlier AQUAvalve designs.
Key Features
-
Automatic gravity-fed water control valve
-
Requires no irrigation pump, timer, electricity, or mains water pressure
- Automatically controls water or nutrient solution delivery
- Opens and closes according to the water level in the tray
-
Maintains approximately 1 in / 20 mm of solution in compatible trays
-
Features a 5 mm / approximately 1/4 in inlet
-
Inlet is approximately 66% larger than the previous AQUAvalve generation
-
Designed for 3/8 in / 9 mm AutoPot pipe and fittings
- Faster flow and quicker tray filling
- Larger inlet helps reduce the risk of blockages
- Compatible with a wide range of modern AutoPot watering systems
- Suitable for compatible mineral and organic liquid fertilizers
- Durable, reusable, and easy to maintain
How Does the AutoPot AQUAvalve5 Work?
The AQUAvalve5 uses gravity pressure from a reservoir to automatically control the flow of water or nutrient solution into an AutoPot tray.
When the tray is empty, the AQUAvalve5 opens and allows solution to enter until the water reaches approximately 1 in / 20 mm deep.
The valve then closes completely.
Instead of immediately refilling the tray as soon as a small amount of water is consumed, the system allows the plants to use the available supply. Once the water level has been sufficiently depleted, the AQUAvalve5 opens again and begins another watering cycle.
This responsive operation allows the plants to influence when the tray is replenished rather than relying on a preset irrigation schedule.
No Pumps, Timers or Electricity Required
One of the major advantages of the AutoPot AQUAvalve5 is its completely power-free operation.
The valve works using gravity pressure from the reservoir, meaning the irrigation system does not require:
- Water pumps
- Irrigation timers
- Electronic controllers
- Computers
- Electricity
- Mains water pressure
This simple operating principle reduces the number of mechanical and electrical components required to automate plant watering.
Improved 5 mm Inlet
The AQUAvalve5 features a 5 mm / approximately 1/4 in inlet, which is approximately 66% larger than the inlet used on earlier AQUAvalve models.
The larger inlet allows:
- Faster water and nutrient solution flow
- Quicker tray filling
- Improved flow through the irrigation system
- Reduced maintenance requirements
- Lower risk of blockages
This increased flow capacity also makes the AQUAvalve5 better suited to the broad range of liquid nutrient programs used by modern growers.
Designed for 3/8" / 9 mm AutoPot Pipe
Modern AutoPot systems using AQUAvalve5 are designed around 3/8 in / 9 mm pipe and fittings.
Compatible components include:
Using the correct pipe and fitting size is important for maintaining proper AQUAvalve5 operation.
Compatible AutoPot Systems
AQUAvalve5 is supplied as standard with current AutoPot watering systems and modules and is used throughout much of the AutoPot product range.
Compatible applications include many:
- 1Pot Systems
- easy2grow Systems
- 1Pot XL Systems
- FlexiPot Systems
- Tray2Grow Systems
- Auto8 Systems
- easy2GO Kits
- Compatible AutoPot tray systems and modules
AQUAvalve5 can also be used to upgrade many earlier AutoPot trays, although some older installations may require updated pipework, fittings, or modifications.
AQUAvalve5 vs. AQUAvalve4
The AQUAvalve5 is the current large-bore version designed for 3/8 in / 9 mm pipe and fittings.
Older AQUAvalve4 systems generally use 1/4 in / 6 mm pipe and fittings.
If replacing a valve in an older AutoPot installation, check the existing pipe size before purchasing replacement components.
AutoPot specifically recommends choosing AQUAvalve5 for 3/8 in pipe and fittings, while AQUAvalve4 remains available for older systems using 1/4 in pipework.
Product Specifications
| Specification |
Details |
| Brand |
AutoPot |
| Product |
AQUAvalve5 |
| Product Type |
Automatic gravity-fed water control valve |
| Canadian Distributor SKU |
APAQ100 |
| Inlet Size |
5 mm / approx. 1/4 in |
| Supply Pipe |
3/8 in / 9 mm |
| Tray Water Depth |
Approx. 1 in / 20 mm |
| Irrigation Pump Required |
No |
| Timer Required |
No |
| Electricity Required |
No |
| Mains Water Pressure Required |
No |
| Compatible Nutrient Delivery |
Water and compatible liquid nutrient solutions |
| Operation |
Gravity-fed automatic irrigation |
| Reusable |
Yes |
Easy Maintenance
For reliable operation, the AQUAvalve5 and the tray in which it sits should be kept clean and free from soil, roots, sediment, and other debris.
Regularly inspect:
- The AQUAvalve5 inlet
- Top and bottom floats
- Silicone components
- Irrigation pipe
- Filters
- Tray area surrounding the valve
Keeping the valve and irrigation system clean helps maintain unrestricted water flow and reliable opening and closing of the AQUAvalve5.
Ideal as a Replacement or Spare AQUAvalve
The AutoPot AQUAvalve5 is useful as a replacement valve for a compatible AutoPot system or as a spare component to keep available for maintenance.
It can also be incorporated into compatible AutoPot watering projects where automatic gravity-fed control of water or nutrient solution is required.
When upgrading an older AQUAvalve installation, make sure the system is equipped with the appropriate 3/8 in / 9 mm pipe, fittings, filters, and grommets.
Why Choose the AutoPot AQUAvalve5?
The AutoPot AQUAvalve5 provides automatic plant-responsive irrigation through a remarkably simple gravity-fed design.
Its larger 5 mm inlet provides improved flow and helps reduce potential blockages, while compatibility with modern 3/8 in / 9 mm AutoPot pipework makes it easy to integrate into current AutoPot systems.
By eliminating the need for irrigation pumps, timers, electricity, and complicated controllers, the AQUAvalve5 offers a simple and reliable way to automate water and nutrient delivery.
Frequently Asked Questions
What does the AutoPot AQUAvalve5 do?
It automatically controls the flow of water or nutrient solution from a reservoir into a compatible AutoPot tray.
Does AQUAvalve5 require electricity?
No. It operates entirely through gravity pressure and does not require electricity, pumps, or timers.
What size pipe does AQUAvalve5 use?
AQUAvalve5 is designed for 3/8 in / 9 mm AutoPot pipe and fittings.
How deep does AQUAvalve5 fill the tray?
The valve supplies approximately 1 in / 20 mm of water or nutrient solution before shutting off.
What is the AQUAvalve5 inlet size?
The AQUAvalve5 has a 5 mm / approximately 1/4 in inlet, approximately 66% larger than the previous generation.
Can AQUAvalve5 replace an older AQUAvalve?
It can be used with many older AutoPot trays, but upgrading from older AQUAvalve systems may also require compatible 3/8 in / 9 mm pipework and fittings.
