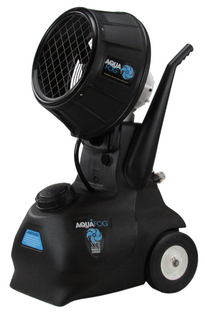

Aquafog XE-HRSM-2000 Mobile Fogging Machine

The Aquafog XE-HRSM-2000 Mobile Fogging Machine is a professional high-output centrifugal fogging system designed for industrial humidification, evaporative cooling, greenhouse environmental control, dust suppression, horticultural applications, and compatible chemical fogging.

Built around Aquafog’s powerful XE centrifugal atomizer, the XE-HRSM-2000 combines a large 18 US gal / 68 L integrated tank, approximately 3,000 CFM airflow, adjustable fog output, and a rugged wheeled chassis for convenient mobile environmental control.

Unlike conventional high-pressure misting systems, the HRSM uses nozzle-free centrifugal atomization, helping eliminate clog-prone nozzles and high-pressure pumps while producing fine fog with strong air propulsion.

High-Output 115 V / 60 Hz Configuration

The XE-HRSM-2000 is designed for standard North American 115 V / 60 Hz single-phase electrical service.

Main electrical specifications include:

• 115 V
• 60 Hz
• Single phase
• 1/2 HP motor
• Approximately 7.8 A
• Approximately 3,000 CFM airflow

This configuration makes the XE-HRSM-2000 a powerful portable solution for commercial, agricultural, horticultural, and industrial facilities.

18-Gallon Mobile Tank

The HRSM includes a large 18 US gal / 68 L integrated water tank, allowing the unit to operate as a self-contained mobile fogging system.

Its rugged wheeled chassis makes it easy to move the fogger between greenhouse zones, production areas, warehouses, agricultural buildings, and other spaces requiring flexible humidification or cooling.

The tank system includes:

• Internal feed pump
• Automatic float valve
• Large tank-access lid
• Fluid-level gauge
• In-line strainer
• Standard garden-hose connection
• Illuminated On/Off switch

When connected to a water supply, the internal float valve automatically maintains the proper tank water level for extended operation.

Fogging Output: Up to 13.5 GPH

The XE-HRSM-2000 delivers high-volume fog production for demanding environmental-control applications.

Performance includes:

• Net fogging output up to approximately 13.5 GPH
• Approximately 3,000 CFM airflow
• Fog propulsion of approximately 30–35 ft / 9.1–10.5 m
• Cooling capability of approximately 109,000 BTU/h
• Approximately 5–10 micron particles at low output
• Approximately 20 microns at medium output
• Approximately 25 microns at high output

This adjustable performance allows the HRSM to produce a finer, drier fog for humidity control or a higher-volume fog for evaporative cooling and other demanding applications.

Simple 1/4-Turn Flow Control

Adjust fog output with a manual 1/4-turn ball valve.

Lower feed settings generally produce finer, drier fog, while opening the valve further increases water output and creates heavier fog for greater humidification or evaporative-cooling capacity.

Typical settings include:

• Fully open – evaporative cooling, greenhouse cooling, concrete curing and mushroom growing
• Mid-range – general humidification, horticulture, wood, lumber and paper applications
• Slightly open – textile humidification, dust suppression, static control and lighter fogging applications

The simple mechanical design makes fog-output adjustment straightforward without complicated programming.

Four-Position Adjustable Fogging Head

The XE-HRSM-2000 includes a pivoting fogging head with four positions:

• 0°
• 15°
• 30°
• 45°

Changing the head angle helps direct the fog based on facility layout, air circulation, crop arrangement, or cooling requirements.

Tilting the fog upward can increase airborne travel time and encourage greater evaporation before droplets settle onto surfaces.

Nozzle-Free Centrifugal Atomization

Aquafog centrifugal technology uses a rotating atomizing blade, accelerated airflow, and atomizing pins to break water into fine droplets.

Because the system does not rely on small conventional misting nozzles, it helps reduce maintenance associated with clogged nozzles and high-pressure pumping systems.

Particle size varies according to the water feed rate, allowing the operator to adapt fog characteristics to different applications.

Used With / Compatible With

The Aquafog XE-HRSM-2000 Mobile Fogging Machine can be used with several Aquafog environmental controls and monitoring accessories, including:

• Aquafog Digital Humidistat Control DH-120
• Aquafog Humidistat Control H-120
• Aquafog 24-Hour Timer Control TC-180
• Aquafog Thermostat Control TH-180
• Aquafog Temperature-Humidity Meter CP-205
• Aquafog Temperature-Humidity Meter with Dew Point CP-301
• Aquafog RSM-AUTO-OFF Smart Controller
• Compatible HAF circulation fans
• Compatible facility automation and environmental-control systems

The DH-120 provides precise digital humidity control for a single XE unit, while the H-120 offers simple mechanical humidity control.

The TC-180 provides programmable 24-hour timed operation, while the TH-180 automatically controls the fogger according to temperature and is especially useful for evaporative-cooling applications.

The CP-205 and CP-301 help monitor temperature and relative humidity, while the RSM-AUTO-OFF Smart Controller can automatically stop the HRSM when the tank reaches a low liquid level.

Optional Automatic Low-Level Shutoff

The XE-HRSM-2000 can be equipped with the Aquafog RSM-AUTO-OFF Smart Controller.

This optional control automatically shuts the fogger down when the liquid level becomes too low, helping prevent the internal feed pump from running dry.

It also includes a fan override switch for additional operational flexibility.

Ideal Applications

The Aquafog XE-HRSM-2000 is well suited for:

• Industrial humidification
• Greenhouse humidity control
• Horticultural facilities
• Propagation areas
• Evaporative cooling
• Greenhouse cooling
• Manufacturing facilities
• Warehouses
• Dust suppression
• Static control
• Wood and lumber facilities
• Paper manufacturing and storage
• Textile humidity control
• Agricultural buildings
• Mushroom-growing environments
• Concrete curing
• Compatible chemical fogging
• Indoor and outdoor environmental conditioning

Key Features

• Professional mobile centrifugal fogging machine
• Model XE-HRSM-2000
• 115 V / 60 Hz / single-phase
• 1/2 HP motor
• Approximately 7.8 A
• Approximately 3,000 CFM airflow
• Net fogging output up to approximately 13.5 GPH
• Fog projection of approximately 30–35 ft / 9.1–10.5 m
• Cooling capability of approximately 109,000 BTU/h
• Particle size from approximately 5–25 microns
• 18 US gal / 68 L tank
• Nozzle-free centrifugal atomization
• Manual 1/4-turn flow-control valve
• Internal feed pump
• Automatic float valve
• Fluid-level gauge
• In-line strainer
• Garden-hose connection
• Four-position pivoting fogging head
• Illuminated On/Off switch
• Rugged wheeled chassis
• Approximately 72 dB(A) at 10 ft
• 18 ft power cord
• Indoor/outdoor rated
• Up to 100% RH
• UV-stabilized and impact-resistant construction
• 300 Series stainless-steel hardware
• Arrives fully assembled
• Manufactured in the USA

Specifications

Powerful Mobile Humidification and Cooling

The Aquafog XE-HRSM-2000 Mobile Fogging Machine combines high-output centrifugal atomization, a large 68 L mobile tank, approximately 3,000 CFM airflow, and up to 13.5 GPH fogging output in a rugged professional system.

Its mobile construction, simple adjustable flow control, and compatibility with multiple Aquafog controllers make it a versatile choice for professional humidification, evaporative cooling, dust suppression, horticulture, and environmental conditioning.
