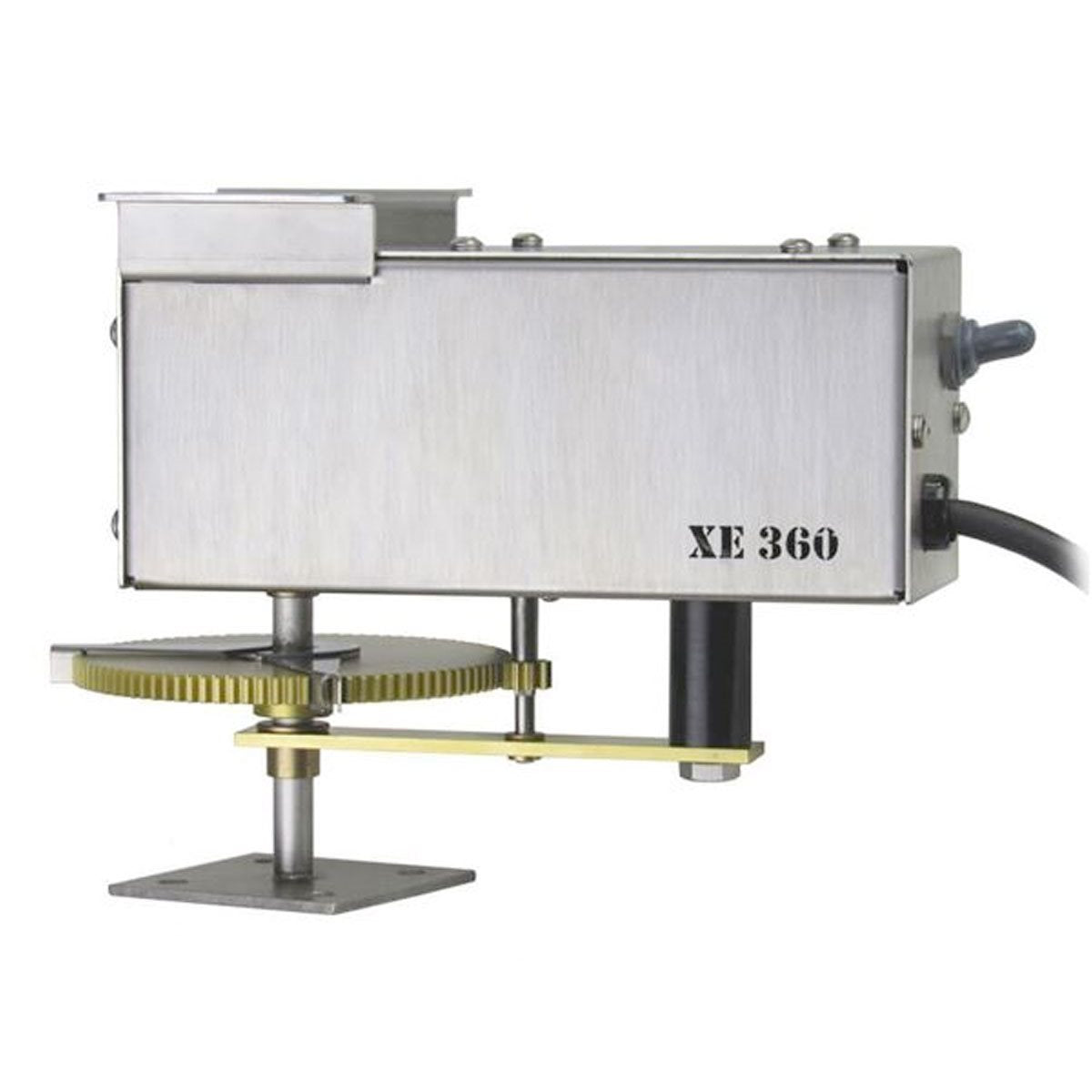

Aquafog XE 360 Oscillator

The Aquafog XE 360 Oscillator is a professional oscillating accessory that increases fog coverage, air circulation, and distribution efficiency in compatible Aquafog centrifugal fogging systems.

Built for demanding greenhouse, horticultural, agricultural, and industrial environments, the XE-360 provides smooth, continuous sweeping movement across an adjustable range of 15° to 360°. By moving the fogging fan through a controlled sweep instead of leaving it stationary, the oscillator helps distribute fog across a wider area while reducing localized droplet buildup and fallout.

With its rugged 304 stainless-steel enclosure, durable 75 lb load capacity, and simple On/Off control, the XE-360 is an excellent upgrade for compatible Aquafog fog fans used for humidification, evaporative cooling, and environmental control.

Adjustable 15° to 360° Oscillation

The Aquafog XE-360 allows the operator to select an oscillation pattern that matches the size and layout of the installation.

The sweep can be adjusted from approximately:

• 15°
• Through intermediate sweep angles
• Up to a complete 360° rotation

This flexibility lets you focus fog in a specific growing or production zone or distribute it across a much wider area.

The continuous, dwell-free movement prevents the fan from pausing for extended periods at the ends of the sweep, helping provide more consistent fog distribution.

Full 360° Rotation in Approximately 3 Minutes

When configured for a complete 360° sweep, the XE-360 completes a full rotation in approximately 3 minutes.

The slow, steady motion allows the attached Aquafog fogging system to distribute moisture over a broad area without concentrating excessive fog in one location.

This can help improve environmental uniformity in applications such as:

• Greenhouses
• Propagation facilities
• Indoor agriculture
• Manufacturing plants
• Wood and paper facilities
• Industrial humidification
• Evaporative cooling systems

Coverage Up to Approximately 70 Feet in Diameter

When paired with a compatible Turbo XE fogging system, the XE-360 can produce fog distribution patterns reaching approximately 70 ft in diameter, depending on the fogger, airflow, output level, mounting position, and surrounding conditions.

The sweeping movement helps:

• Increase overall fog coverage
• Improve air circulation
• Reduce excessive droplet collisions
• Reduce localized fog fallout
• Improve moisture distribution
• Allow higher fogging output under suitable conditions
• Improve dryness beneath the overall fog pattern

With compatible GT 500 systems, the coverage area may be somewhat smaller because of the lower airflow and projection of the GT atomizer compared with the Turbo XE platform.

304 Stainless-Steel Enclosure

The XE-360 features a durable 304 stainless-steel enclosure designed for harsh indoor agricultural and industrial environments.

Stainless-steel construction provides excellent resistance to moisture and corrosion while helping protect the oscillator mechanism in high-humidity conditions.

This rugged construction makes the XE-360 particularly well suited for permanent greenhouse and industrial installations.

75 lb Load Capacity

The Aquafog XE-360 has a durable load capacity of approximately 75 lb, allowing it to support compatible Aquafog centrifugal fog fans during continuous oscillating operation.

Proper mounting is essential to ensure the oscillator and attached fogging unit remain stable throughout the full sweep.

Simple On/Off Toggle Switch

The XE-360 includes a convenient On/Off toggle switch for straightforward operation.

When the oscillator is switched on, the attached fogging system moves continuously through the selected sweep range.

When oscillation is not required, the operator can switch off the oscillator and operate the fogger in a stationary position when appropriate.

Designed Primarily for Indoor Use

Aquafog recommends the XE-360 primarily for indoor applications.

Although the stainless-steel enclosure is designed for demanding environments, do not expose the oscillator to strong outdoor winds. Repeated wind loading can place unnecessary stress on the housing, gears, and mounting assembly.

For windy outdoor applications, a stationary-mounted Aquafog fogging system is generally the better choice.

Used With / Compatible With

The Aquafog XE 360 Oscillator is designed for compatible 115 V Aquafog XE and GT centrifugal fogging systems.

Compatible products include:

• Aquafog Turbo XE 2000 Fans – compatible 115 V configuration
• Aquafog Turbo XE 2000-HS Fans – XE-2000-HS 115 V / 60 Hz
• Aquafog GT-500 Fans – compatible 115 V configuration
• Aquafog GT 500-HS Fan – 115 V hanging-sump configuration
• Aquafog Traveling Floor Stand XE-100
• Aquafog Wall Mount XE-W

The XE-100 Traveling Floor Stand can support either stationary or oscillating installations, making it useful where permanent overhead mounting is not practical.

The XE-W Wall Mount includes a horizontal extension designed to provide sufficient clearance for a full 360° oscillating sweep.

Important Voltage Compatibility

The XE-360 is designed for:

• 115 V
• 60/50 Hz

For Aquafog systems using a higher-voltage electrical supply, use the appropriate oscillator:

• Aquafog XE-361 Oscillator
• 220–250 V
• 60/50 Hz

Do not connect the XE-360 directly to a 220–250 V supply.

For Aquafog Turbo XE three-phase or other higher-voltage installations, the oscillator must receive the correct voltage through an appropriately designed electrical configuration.

Ideal Applications

The Aquafog XE 360 Oscillator is ideal for:

• Greenhouse humidification
• Greenhouse evaporative cooling
• Indoor horticultural facilities
• Propagation rooms
• Controlled-environment agriculture
• Mushroom-growing facilities
• Industrial humidification
• Manufacturing environments
• Wood and lumber facilities
• Paper manufacturing and storage
• Textile humidity control
• Wine and barrel storage
• Indoor dust-control applications
• Environmental conditioning
• Large indoor spaces requiring broader fog distribution

Key Features

• Professional oscillator for compatible Aquafog fog fans
• Model / SKU: XE-360
• 115 V
• 60/50 Hz
• Adjustable sweep from 15° to 360°
• Smooth, continuous dwell-free movement
• Full 360° rotation in approximately 3 minutes
• Coverage patterns up to approximately 70 ft in diameter with compatible Turbo XE systems
• Helps improve fog distribution
• Helps enhance air circulation
• Helps reduce localized droplet fallout
• Supports higher fog output under appropriate conditions
• 304 stainless-steel enclosure
• Durable 75 lb load capacity
• Integrated On/Off toggle switch
• Designed primarily for indoor use
• Compatible with selected Turbo XE and GT 500 systems
• Compatible with the XE-100 Traveling Floor Stand
• Compatible with the XE-W Wall Mount
• Rugged construction for greenhouse and industrial environments

Specifications

Increase Fog Coverage and Air Circulation

The Aquafog XE 360 Oscillator is a simple and effective way to expand the performance of a compatible Aquafog fogging system.

Its adjustable 15°–360° sweep, continuous movement, rugged stainless-steel construction, and ability to support up to 75 lb make it ideal for professional indoor installations where uniform fog distribution and better air circulation are important.

Whether used with a Turbo XE 2000, Turbo XE 2000-HS, GT-500, or GT 500-HS, the XE-360 helps transform a stationary fogging system into a broad-coverage environmental-control solution.
