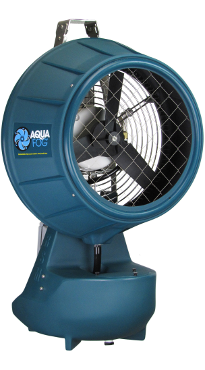

Aquafog Turbo XE 2000-HS Fans

The Aquafog Turbo XE 2000-HS Fans are professional high-output hanging-sump centrifugal fogging systems designed for industrial humidification, evaporative cooling, greenhouse environmental control, horticultural applications, agricultural facilities, and compatible chemical fogging.

Available in two electrical configurations — XE-2000-HS and XE-2000-HS-50Hz — these powerful Turbo XE fog fans combine Jaybird’s largest centrifugal atomizer platform with a 3 US gal / 11.3 L recirculating sump, long-distance fog projection, adjustable output, and nozzle-free operation.

Because the hanging-sump system captures and recirculates unused water, it requires no floor drain, making the Turbo XE 2000-HS especially practical for facilities with limited drainage access or where additional plumbing would be inconvenient.

Two Electrical Models Available

The Aquafog Turbo XE 2000-HS Fans are available in two configurations:

XE-2000-HS

• 115 V
• 60 Hz
• Single phase
• 1/2 HP motor
• Approximately 7.8 A
• Approximately 3,000 CFM airflow
• Net fogging output up to approximately 14.8 GPH
• Cooling capability of approximately 119,800 BTU/h

Jaybird currently identifies the 115 V selection as XE-2000-HS-115.

XE-2000-HS-50Hz

• 230 V / 50 Hz
• Single phase
• International electrical configuration
• 1/3 HP motor
• Approximately 4.4 A
• Approximately 2,500 CFM airflow
• Net fogging output up to approximately 45 L/h
• Cooling capability of approximately 95,800 BTU/h

These two configurations allow facilities to choose the electrical version that best matches their installation.

3-Gallon Recirculating Hanging Sump

The Turbo XE 2000-HS includes an integrated 3 US gal / 11.3 L recirculating sump tank.

Unused water is captured and returned to the fogging system instead of being discharged through a drain line. This design helps conserve water while simplifying installation.

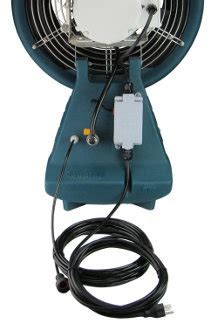

The hanging-sump system includes:

• Internal feed pump
• Automatic float valve
• Manual 1/4-turn flow-control valve
• Large tank-access lid
• Garden-hose connection
• Illuminated On/Off switch
• 20 ft water line
• 15 ft power cord
• Fully assembled construction

The unit is designed to be suspended, rather than used as a tabletop fogger.

High-Output Fogging Performance

The Turbo XE platform is Aquafog’s largest centrifugal atomizer class and is designed for demanding large-area applications.

60 Hz performance includes:

• Net output up to 14.8 GPH
• Approximately 3,000 CFM airflow
• Fog propulsion of approximately 30–35 ft
• Cooling capacity of approximately 119,800 BTU/h

50 Hz performance includes:

• Net output up to 45 L/h
• Approximately 2,500 CFM airflow
• Fog projection of approximately 30–35 ft
• Cooling capacity of approximately 95,800 BTU/h

Typical particle sizes include:

• Approximately 5–10 microns at low output
• Approximately 20 microns at medium output
• Approximately 25 microns at high output

The adjustable output allows the operator to select a finer, drier fog for humidity control or a heavier output for large-area evaporative cooling.

Simple 1/4-Turn Flow Control

The fogging output is controlled with a manual 1/4-turn ball valve.

Typical settings include:

• Fully open – evaporative cooling, greenhouse cooling, concrete curing and mushroom growing
• Mid open – general humidification, horticulture, wine-barrel storage, wood, lumber and paper applications
• Slightly open – textile humidification, dust suppression, static control and lighter treatment applications

Starting with a lower flow setting helps create finer fog and reduce unnecessary wetting.

Nozzle-Free Centrifugal Atomization

The Turbo XE uses Aquafog’s centrifugal atomization system rather than small conventional misting nozzles.

Water enters the rotating atomizer, where centrifugal force, accelerated airflow, and atomizing pins break it into fine droplets.

This design provides:

• No small fogging nozzles to clog
• No high-pressure pump required
• Adjustable particle size
• Strong air propulsion
• High-volume fog production
• Continuous-duty capability

The result is a rugged fogging system suitable for demanding greenhouse, agricultural and industrial environments.

Used With / Compatible With

The Aquafog Turbo XE 2000-HS Fans can be combined with compatible Aquafog humidity controls, timers, thermostats, oscillators, mounting systems and monitoring equipment.

For the 115 V / 60 Hz XE-2000-HS, compatible products include:

• Aquafog Digital Humidistat Control DH-120
• Aquafog Humidistat Control H-120
• Aquafog 24-Hour Timer Control TC-180
• Aquafog Thermostat Control TH-180
• Aquafog XE-360 Oscillator
• Aquafog Traveling Floor Stand XE-100
• Aquafog Wall Mount XE-W
• Aquafog Ceiling Mount XE-C
• Aquafog Temperature-Humidity Meter CP-205
• Aquafog Temperature-Humidity Meter with Dew Point CP-301

The DH-120 provides digital humidity control for one XE unit, while the H-120 provides simple mechanical humidity control. The TC-180 allows timed operation, and the TH-180 provides temperature-based control for evaporative cooling.

For the XE-2000-HS-50Hz, compatible or appropriately configured products include:

• Aquafog Humidistat Control H-240 – 240 V / 50 Hz
• Aquafog XE-361 Oscillator – 220–250 V / 50/60 Hz
• Aquafog Thermostat Control TH-180 – 100–250 V / 50/60 Hz
• Aquafog Traveling Floor Stand XE-100
• Aquafog Wall Mount XE-W
• Aquafog Ceiling Mount XE-C
• Aquafog Temperature-Humidity Meter CP-205
• Aquafog Temperature-Humidity Meter with Dew Point CP-301
• Properly rated 230 V / 50 Hz automation or timer controls

Jaybird’s manufacturer documentation specifically identifies XE-361 and H-240 as the higher-voltage options for 50 Hz installations.

Optional XE-360 / XE-361 Oscillation

Adding the compatible Aquafog oscillator increases fog coverage and improves air circulation.

The oscillator provides:

• Adjustable sweeps from approximately 15° to 360°
• Continuous dwell-free movement
• Full 360° rotation in approximately 3 minutes
• Stainless-steel enclosure
• Coverage patterns up to approximately 70 ft in diameter

Use XE-360 for compatible 115 V systems and XE-361 for 220–250 V installations.

Oscillation is recommended primarily for indoor applications.

Mounting Options

The Turbo XE 2000-HS is compatible with several Aquafog support systems:

• XE-100 Traveling Floor Stand – adjustable mobile support with 10 in wheels
• XE-W Wall Mount – permanent wall-mounted support with clearance for oscillation
• XE-C Ceiling Mount – fixed overhead installation that helps preserve floor space

These accessories let you adapt the fogger to greenhouse, agricultural, and industrial layouts where overhead suspension alone may not be ideal.

Ideal Applications

Aquafog Turbo XE 2000-HS Fans are well suited for:

• Greenhouse humidification
• Greenhouse evaporative cooling
• Horticultural facilities
• Propagation areas
• Mushroom growing
• Controlled-environment agriculture
• Agricultural buildings
• Industrial humidification
• Manufacturing facilities
• Wood and lumber operations
• Paper manufacturing and storage
• Wine and barrel storage
• Textile humidity control
• Dust suppression
• Static control
• Concrete curing
• Compatible chemical fogging
• Facilities without convenient floor drainage

Key Features

• Professional hanging-sump centrifugal fogging system
• Two models: XE-2000-HS and XE-2000-HS-50Hz
• 115 V / 60 Hz or 230 V / 50 Hz
• Up to 14.8 GPH net output at 60 Hz
• Up to 45 L/h net output at 50 Hz
• Approximately 3,000 CFM at 60 Hz
• Approximately 2,500 CFM at 50 Hz
• Approx. 30–35 ft / 9.1–10.5 m fog projection
• Approx. 119,800 BTU/h cooling at 60 Hz
• Approx. 95,800 BTU/h cooling at 50 Hz
• Particle size: approximately 5–25 microns
• 3 US gal / 11.3 L recirculating sump
• No floor drain required
• Nozzle-free centrifugal atomization
• Internal feed pump
• Automatic float valve
• Manual 1/4-turn flow-control valve
• Illuminated power switch
• Garden-hose connection
• 20 ft water line
• 15 ft power cord
• Continuous-duty capability
• Indoor/outdoor rated
• IP55 wet-environment design
• Up to 100% RH
• UV-stabilized and impact-resistant construction
• Arrives fully assembled
• Manufactured in the USA

Specifications

Powerful Drain-Free Industrial Fogging

The Aquafog Turbo XE 2000-HS Fans combine Aquafog’s largest centrifugal atomizer platform with a 3-gallon recirculating sump, strong long-distance airflow and adjustable fog production for demanding professional environments.

With both 115 V / 60 Hz and 230 V / 50 Hz models available, the Turbo XE 2000-HS provides a versatile solution for high-output humidification, evaporative cooling and environmental control without requiring a floor drain.
