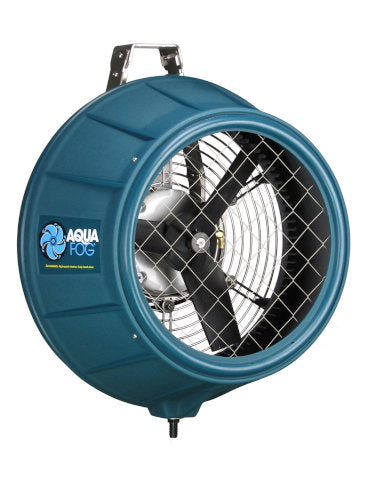

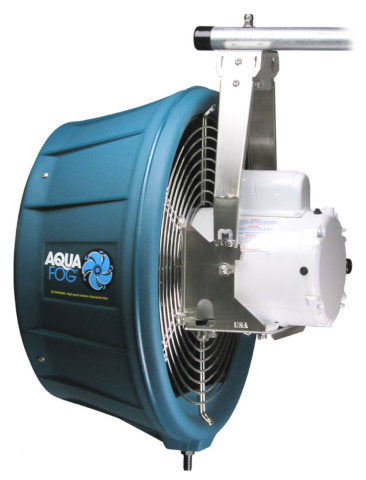

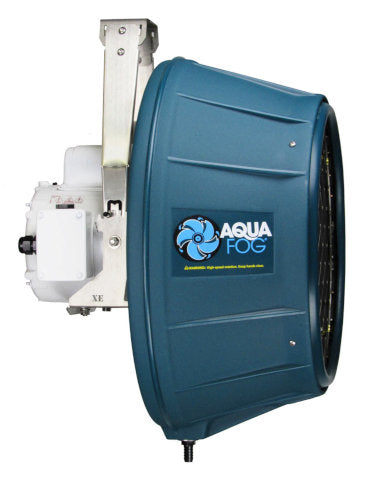

Aquafog Turbo XE 2000 Fans

The Aquafog Turbo XE 2000 Fans are professional high-output direct-feed centrifugal fogging systems designed for industrial humidification, evaporative cooling, greenhouse environmental control, dust suppression, horticultural applications, agricultural facilities, and compatible chemical fogging.

Available in two electrical configurations — XE-2000 and XE-2000-3Ph — these powerful fog fans combine Aquafog’s largest centrifugal atomizer platform with approximately 3,000 CFM airflow, up to 15.8 GPH net fogging output, a stainless-steel flowmeter panel, and strong long-distance fog projection.

Unlike conventional high-pressure misting systems, the Turbo XE uses nozzle-free centrifugal atomization, eliminating small clog-prone nozzles and the need for high-pressure pumps while providing adjustable, high-volume fog production.

Two Electrical Models Available

The Aquafog Turbo XE 2000 Fans are available in two 60 Hz configurations:

XE-2000

• 115/230 V
• 60 Hz
• Single phase
• 1/2 HP motor
• Approximately 7.4 A at 115 V
• Approximately 3.7 A at 230 V
• Approximately 3,000 CFM airflow
• Up to approximately 15.8 GPH net fogging output

XE-2000-3Ph

• 208–230/460 V
• 60 Hz
• Three phase
• 1/2 HP motor
• Approximately 3,000 CFM airflow
• Up to approximately 15.8 GPH net fogging output
• Current draw varies according to supply voltage and motor wiring; verify the motor nameplate during installation

This gives commercial and industrial facilities the flexibility to select either a single-phase or three-phase electrical configuration according to their available power supply.

Direct-Feed Centrifugal Fogging

The Turbo XE 2000 is a direct-feed fogging system, meaning it connects directly to a pressurized water supply rather than operating from a recirculating tank.

Every direct-feed Turbo XE is equipped with a stainless-steel visual flowmeter panel that lets the operator monitor and precisely adjust the water entering the centrifugal atomizer.

Recommended water-supply pressure is approximately:

• 10–100 PSI

Because the direct-feed system does not use a recirculating sump, excess water must be discharged through a drain line.

Multiple Flowmeter Options

The Turbo XE can be configured with different flowmeter ranges depending on the desired fogging characteristics.

Available flowmeter ranges include:

• 1–5 GPH – up to approximately 4.5 GPH net output
• 2–10 GPH – up to approximately 7.5 GPH net output
• 3–15 GPH – up to approximately 10 GPH net output
• 5–25 GPH – up to approximately 15 GPH net output
• 8–32 GPH – up to approximately 15.8–16 GPH net output

Lower flowmeter ranges generally produce finer, drier fog, while higher flow rates produce more fog volume, larger droplets, greater cooling capacity, and increased drain-off.

For humidification applications, selecting the smallest flowmeter that comfortably covers the required output generally provides the driest fog.

Up to 15.8 GPH Net Fogging Output

The current Turbo XE platform delivers powerful performance for large commercial and industrial spaces.

Performance includes:

• Net fogging output up to approximately 15.8 GPH
• Approximately 3,000 CFM airflow
• Fog propulsion of approximately 30–35 ft / 10–11 m
• Cooling capability of approximately 127,500 BTU/h
• Approximately 5–10 micron particles at low output
• Approximately 20 microns at medium output
• Approximately 25 microns at high output
• Approximately 72 dB(A) at 10 ft

This combination of adjustable water flow and powerful air propulsion makes the Turbo XE suitable for both precise humidity management and high-output evaporative cooling.

Water Solenoid Required for Automatic Operation

A direct-feed Turbo XE should always include a water-solenoid shutoff valve when the system operates automatically or through an existing external controller.

The solenoid automatically stops water flow when power to the fog fan is interrupted or switched off, preventing unwanted water flow when the atomizer is not operating.

Aquafog direct-feed control packages include an appropriate water solenoid.

For manual installations or systems using an existing controller, install a separate Turbo XE Water Solenoid in the water-supply line.

Nozzle-Free Centrifugal Atomization

Aquafog’s centrifugal atomization system uses a rotating atomizing blade, accelerated airflow, and atomizing pins to break incoming water into extremely fine droplets.

This design offers several advantages:

• No small misting nozzles to clog
• No high-pressure pump required
• No compressed air required
• Adjustable particle size
• High-volume fog production
• Powerful air propulsion
• Reduced maintenance
• Continuous-duty operation

The industrial TEAO motor is designed for harsh, wet environments, making the Turbo XE suitable for demanding greenhouse, agricultural, commercial, and industrial applications.

Used With / Compatible With

The Aquafog Turbo XE 2000 Fans can be used with compatible Aquafog environmental controls, water shutoff equipment, oscillators, mounting accessories, and monitoring instruments.

For an XE-2000 configured for 115 V operation, compatible products include:

• Aquafog Digital Humidistat Control DH-120-DF
• Aquafog Digital Humidistat 2 Unit Control DH2-36-DF
• Aquafog Humidistat Control H2-120
• Aquafog Timer Control TC-120
• Aquafog Thermostat Control TH1-120
• Aquafog Thermostat Control TH2-120
• Aquafog Two-Stage Control 2SC-120
• Aquafog Turbo XE Water Solenoid SVC-120
• Aquafog XE-360 Oscillator
• Aquafog Traveling Floor Stand XE-100
• Aquafog Wall Mount XE-W
• Aquafog Ceiling Mount XE-C
• Aquafog Temperature-Humidity Meter CP-205
• Aquafog Temperature-Humidity Meter with Dew Point CP-301

The DH-120-DF provides digital humidity control for one Turbo XE, while the DH2-36-DF can control one or two units. Both include water-solenoid control for direct-feed operation.

The H2-120 provides simple mechanical humidity control, the TC-120 provides timer-based operation, and the TH1-120 / TH2-120 controls are designed for temperature-based evaporative-cooling applications.

Compatibility for XE-2000-3Ph

The XE-2000-3Ph requires electrical control equipment properly rated for its 208–230/460 V three-phase motor.

Do not connect standard 115 V Aquafog electrical controls directly to the three-phase motor circuit unless incorporated into a properly engineered motor-starter, contactor, transformer, or control system.

Compatible non-motor accessories can include:

• Aquafog Traveling Floor Stand XE-100
• Aquafog Wall Mount XE-W
• Aquafog Ceiling Mount XE-C
• Aquafog Temperature-Humidity Meter CP-205
• Aquafog Temperature-Humidity Meter with Dew Point CP-301
• Properly rated three-phase motor starters and environmental-control systems
• Voltage-matched water-solenoid shutoff equipment

The Aquafog XE-360 Oscillator can be used where an appropriate 115 V control supply is available. For compatible 220–250 V installations, you may also consider the XE-361 Oscillator, depending on the electrical configuration.

Optional Oscillation for Greater Coverage

Adding a compatible Aquafog oscillator can increase fog coverage and improve air circulation.

The XE oscillator system provides:

• Adjustable sweep from approximately 15° to 360°
• Continuous movement without dwell points
• Full 360° rotation in approximately 3 minutes
• Stainless-steel enclosure
• Coverage patterns up to approximately 70 ft in diameter

Oscillation is primarily recommended for indoor installations. For windy outdoor environments, a stationary installation is generally preferred.

Mounting Options

The Turbo XE 2000 is compatible with several Aquafog mounting systems:

• XE-100 Traveling Floor Stand – adjustable mobile support with 10 in wheels
• XE-W Wall Mount – permanent wall-mounted support
• XE-C Ceiling Mount – overhead installation that helps maximize available floor space

These accessories let you adapt the Turbo XE to a wide range of greenhouse, agricultural, commercial, and industrial layouts.

Ideal Applications

Aquafog Turbo XE 2000 Fans are well suited for:

• Industrial humidification
• Greenhouse humidification
• Greenhouse evaporative cooling
• Controlled-environment agriculture
• Horticultural facilities
• Propagation areas
• Mushroom growing
• Manufacturing facilities
• Industrial processing facilities
• Dust suppression
• Static control
• Wood and lumber operations
• Paper manufacturing and storage
• Textile humidity control
• Wine and barrel storage
• Concrete curing
• Agricultural buildings
• Compatible chemical fogging
• Large-area environmental conditioning

Key Features

• Professional direct-feed centrifugal fog fans
• Two models: XE-2000 and XE-2000-3Ph
• Single-phase or three-phase power options
• XE-2000: 115/230 V / 60 Hz / 1Ph
• XE-2000-3Ph: 208–230/460 V / 60 Hz / 3Ph
• 1/2 HP industrial motor
• Approximately 3,000 CFM airflow
• Up to approximately 15.8 GPH net fogging output
• Approximately 127,500 BTU/h cooling capacity
• Fog projection of approximately 30–35 ft
• Particle size: approximately 5–25 microns
• Stainless-steel visual flowmeter panel
• Multiple flowmeter ranges available
• Nozzle-free centrifugal atomization
• 10–100 PSI water-supply compatibility
• Direct-feed installation
• Drain line required
• No recirculating tank
• Water solenoid required for automatic operation
• TEAO harsh-environment motor
• IP55 wet-environment design
• Continuous-duty capability
• Indoor/outdoor operation
• Up to 100% RH
• UV-stabilized and impact-resistant construction
• 300 Series stainless-steel hardware
• Manufactured in the USA

Specifications

Professional High-Output Direct-Feed Fogging

The Aquafog Turbo XE 2000 Fans combine powerful centrifugal atomization, approximately 3,000 CFM airflow, up to 15.8 GPH net fogging output, and precise flowmeter control for demanding professional environments.

With both the XE-2000 single-phase and XE-2000-3Ph three-phase models available, facilities can choose the electrical configuration that best matches their infrastructure while benefiting from the same rugged Turbo XE direct-feed fogging platform.
