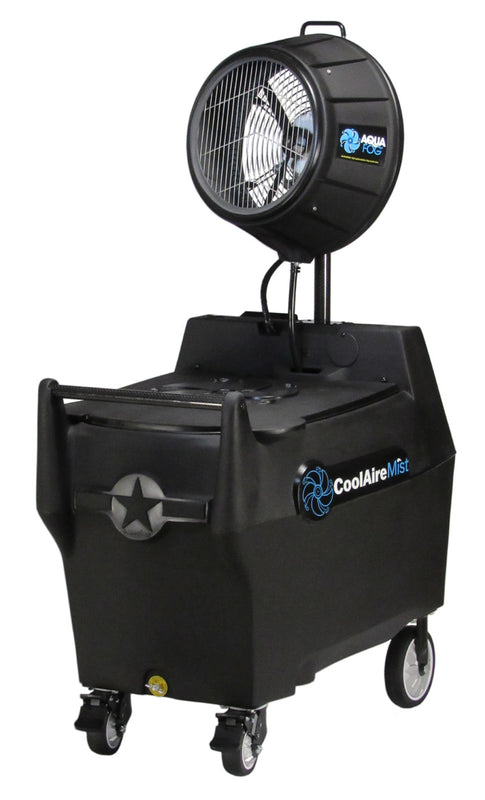

Aquafog CoolAire Hellcat Mobile Fine-Mist Fogging System CM-F6F

The Aquafog CoolAire Hellcat Mobile Fine-Mist Fogging System CM-F6F is a powerful, self-contained mobile fogging system designed for large-area cooling, humidification, dust suppression, odor control, and environmental conditioning.

Built around Aquafog’s high-output XE centrifugal atomizer, the Hellcat combines a large 65-gallon / 246 L water tank, adjustable fog output, a pivoting fogging head, four selectable oscillation sweeps, and a rugged wheeled platform for convenient positioning.

The CM-F6F operates on 115 V / 60 Hz single-phase power, making it ideal for demanding greenhouse, agricultural, commercial, and industrial applications.

High-Output Fine-Mist Fogging

The Hellcat uses Aquafog’s nozzle-free centrifugal atomizing technology to generate large volumes of fine fog without high-pressure pumps or conventional misting nozzles.

Fog output is adjustable from approximately:

• 2.75 GPH minimum
• 12.8 GPH maximum
• Up to approximately 13 GPH

The adjustable flow lets operators match fog production to cooling, humidification, dust-control, or environmental requirements.

Large 65-Gallon Self-Contained Tank

The integrated 65 US gal / 246 L tank provides a substantial water supply without requiring a permanent water connection.

Approximate runtime with a full tank is:

• Up to 25.5 hours at minimum output
• Up to 5.5 hours at maximum output

This self-contained design makes the Hellcat especially useful for mobile or temporary applications where fixed plumbing is impractical.

Powerful XE Centrifugal Atomizer

The Aquafog CoolAire Hellcat Mobile Fine-Mist Fogging System CM-F6F uses the high-output XE atomizer to deliver strong airflow and broad fog coverage.

Performance highlights include:

• 1/2 HP motor
• Approximately 3,000 CFM
• Up to 103,800 BTU/hr evaporative cooling capacity
• Fine droplets approximately 2–25 microns
• Strong fog projection for large spaces

The nozzle-free design also helps eliminate common problems associated with clogged misting nozzles and high-pressure pumps.

Four Adjustable Oscillation Sweeps

A built-in mechanical oscillator distributes fog across a wider area without requiring constant repositioning.

Selectable sweep angles include:

• 30°
• 45°
• 60°
• 75°

The oscillator completes a sweep in approximately 10 seconds and can be adjusted without tools.

Pivoting Fogging Head

The fogging head adjusts from approximately 7.5° to 30° upward, allowing operators to direct fog where needed.

Angling the discharge upward can increase fog hang time and improve evaporation, helping maximize cooling and humidification coverage while reducing unnecessary surface wetting.

Simple Mechanical Controls

The Hellcat uses a durable electro-mechanical control system designed for reliable operation in demanding environments.

The primary operating modes include:

• OFF – disconnects system power
• ON – enables normal operation
• AUTO SHUT-OFF – automatically stops the unit when the tank water level becomes too low

Independent controls also allow the operator to switch the mist output and oscillating sweep on or off separately.

Mobile Design for Flexible Placement

The rugged wheeled chassis makes the CM-F6F easy to reposition wherever cooling, humidification, or fogging is required.

Its mobile design is especially useful for large facilities where environmental-control requirements change or where a single fogging system must serve multiple areas.

The fogging head can also nest inside the tank for easier transportation and storage.

Available Accessories & Controls

A selection of optional accessories and environmental controls is available for the Aquafog CoolAire Hellcat Mobile Fine-Mist Fogging System CM-F6F, allowing you to adapt the system to different installation and automation requirements.

Available accessories include:

3/8 Tube Connection Kit – 3/8 TCK
Includes 3/8 in OD tube fittings, adapter, and valve. Allows the CoolAire system to use tubing instead of a garden hose, providing greater flexibility for longer or more permanent plumbing installations.

3/8 in OD Tubing – W-38-100
Black polyethylene tubing measuring 3/8 in OD × 1/4 in ID, suitable for use with the optional tube connection kit.

Aquafog Digital Humidistat Control DH-120
Fast-response digital humidity controller for one compatible XE unit. Features a 5–99% RH range, adjustable setpoint and differential, real-time humidity display, and built-in over-humidity and sensor-fault alarms.

Aquafog Humidistat Control H-120
Simple mechanical humidity controller capable of operating up to two compatible Turbo XE units. Provides a 20–80% RH control range and requires no digital programming.

Aquafog 24-Hour Timer Control TC-180
Mechanical timer for automatic timed operation of compatible Turbo XE equipment. Features adjustable 15-minute intervals and a rain-tight NEMA 3 enclosure.

Aquafog Thermostat Control TH-180
Mechanical temperature controller designed primarily for evaporative cooling applications. Offers a 40–110°F / 4.4–43.3°C control range with a watertight NEMA 4X enclosure.

Aquafog Temperature-Humidity Meter CP-205
Portable thermo-hygrometer for checking environmental conditions. Measures 20–95% RH and 32–122°F / 0–50°C, with simultaneous temperature and humidity display.

Optional Stainless-Steel Plumbing Package

For applications involving oxidizers, sanitation solutions, or highly corrosive chemicals, Jaybird also offers an optional SST Stainless-Steel Plumbing Package.

This factory-installed upgrade replaces the standard brass plumbing components with 304 stainless-steel fittings, providing greater chemical compatibility for demanding sanitation and chemical-fogging applications.

The stainless-steel version is available as a separate Hellcat configuration and should be selected when the intended fluid requires corrosion-resistant plumbing.

Ideal For / Applications

The Aquafog CoolAire Hellcat Mobile Fine-Mist Fogging System CM-F6F is suitable for:

• Greenhouse humidification
• Greenhouse and plant cooling
• Commercial horticulture
• Agricultural facilities
• Livestock cooling
• Industrial evaporative cooling
• Warehouse cooling
• Loading docks
• Manufacturing facilities
• Dust suppression
• Odor control
• Chemical fogging
• Outdoor commercial cooling
• Environmental conditioning
• Large-area humidification

Indoor and Outdoor Operation

The Hellcat is built for demanding indoor and outdoor applications.

Stainless-steel components and UV-stabilized materials provide durability in greenhouse, agricultural, commercial, and industrial environments.

Key Features

• Mobile high-output fine-mist fogging system
• Model / SKU CM-F6F
• High-output XE centrifugal atomizer
• Nozzle-free fogging technology
• Adjustable output from approximately 2.75 to 12.8 GPH
• Up to approximately 13 GPH
• 65 US gal / 246 L integrated tank
• Up to 25.5 hours runtime at minimum output
• Up to 5.5 hours runtime at maximum output
• 1/2 HP motor
• Approximately 3,000 CFM
• Cooling capacity up to 103,800 BTU/hr
• Four oscillation sweeps: 30°, 45°, 60° and 75°
• Pivoting fogging head from approximately 7.5° to 30°
• Adjustable quarter-turn flow-control valve
• Independent mist and sweep controls
• Automatic low-water shut-off
• Rugged wheeled mobile platform
• 18 ft power cord
• Multiple optional controls and plumbing accessories available
• Optional stainless-steel plumbing configuration
• Indoor and outdoor operation
• 115 V / 60 Hz / single-phase
• Manufactured in the USA

Specifications

Powerful Mobile Fogging for Large Areas

The Aquafog CoolAire Hellcat Mobile Fine-Mist Fogging System CM-F6F combines high-output centrifugal atomization, a 65-gallon tank, adjustable fog production, wide oscillating coverage, rugged mobility, and optional environmental controls and accessories.

Its powerful output and flexible mobile design make it an excellent solution for greenhouses, agriculture, industrial cooling, humidification, dust suppression, odor control, and other large-area environmental applications.
