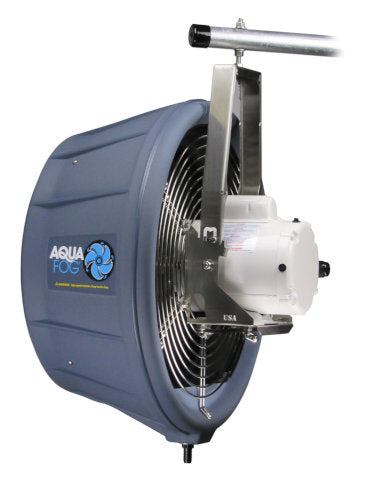

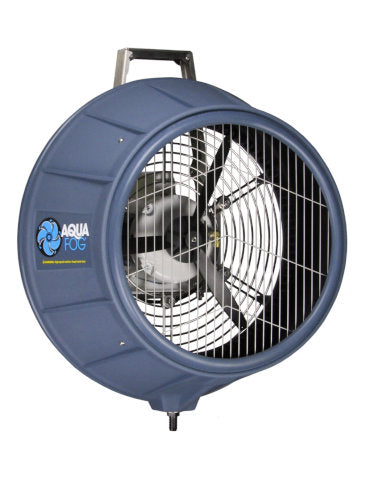

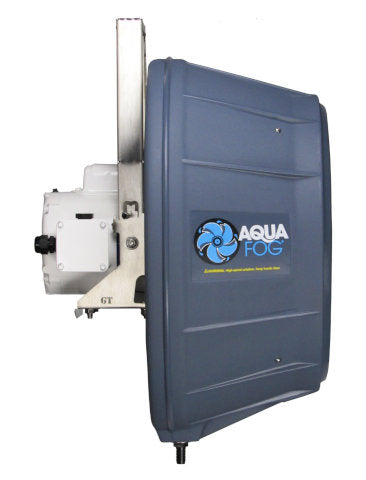

Aquafog GT-500 Fans
The Aquafog GT-500 Fans are professional direct-feed centrifugal fogging systems designed for reliable humidification, evaporative cooling, greenhouse environmental control, agricultural applications, warehouses, manufacturing facilities, and other commercial or industrial environments.
Available in two electrical configurations — GT-500 and GT-500-230 — these rugged fog fans combine Aquafog’s 14-inch GT centrifugal atomizer, approximately 1,800 CFM airflow, adjustable water flow, and nozzle-free fog production in a durable system designed for continuous-duty operation.
Unlike conventional high-pressure misting systems, the GT-500 uses centrifugal atomization to create fine fog without small nozzles that can clog or high-pressure pumps that require additional maintenance.
Two Electrical Models Available
The Aquafog GT-500 Fans are available in two 60 Hz configurations:
GT-500
- 115 V
- 60 Hz
- Single phase
- 1/4 HP motor
-
Approximately 3.4 A
-
Approximately 1,800 CFM airflow
GT-500-230
- 230 V
- 60 Hz
- Single phase
- 1/4 HP motor
-
Approximately 1.8 A
-
Approximately 1,800 CFM airflow
This gives facilities the flexibility to select the voltage that best matches their electrical installation.
Direct-Feed Centrifugal Fogging
The GT-500 is a direct-feed system, meaning it connects to a pressurized water supply rather than using a recirculating tank.
The included visual flowmeter system allows operators to monitor and adjust water input precisely before it reaches the centrifugal atomizer.
Depending on the selected flowmeter configuration, the GT platform can provide different fog characteristics:
-
1–5 GPH flowmeter – finer, drier fog
-
2–10 GPH flowmeter – general-purpose fogging
-
3–15 GPH flowmeter – highest fogging output
Lower water-flow settings generally create finer droplets, while higher settings increase fog volume and cooling capacity.
Up to 5.8 GPH Fogging Performance
At 60 Hz, the GT-500 platform delivers strong performance for professional humidification and evaporative cooling.
Performance includes:
-
Maximum fogging output of approximately 5.8 GPH
-
Approximately 1,800 CFM airflow
-
Fog propulsion of approximately 25–30 ft
-
Cooling capability of approximately 46,500 BTU/h
-
Particle size of approximately 5–10 microns at low volume
-
Approximately 25 microns at high volume
-
Noise level of approximately 70 dB(A) at 10 ft
The combination of airflow and adjustable fog output allows the GT-500 to serve a wide range of environmental-control applications.
Pressurized Water Supply & Drainage
The GT-500 direct-feed system connects to a pressurized water supply through its flowmeter panel.
Recommended operating water pressure is approximately:
Because the system does not use a recirculating reservoir, it must discharge excess water through a drain line.
The amount of drainage depends on the selected water-flow setting and flowmeter configuration.
Water Solenoid for Automatic Operation
A direct-feed fogger should include a water solenoid shutoff valve whenever the system is automatically switched on and off.
The solenoid stops water flow whenever electrical power to the fog fan is interrupted, helping prevent unwanted water flow when the atomizer is not operating.
Aquafog -DF control packages for the 115 V GT-500 include the required water solenoid.
For the GT-500-230, always use a properly rated 230 V compatible control and water-solenoid configuration.
OSHA-Compliant Hydrophilic Safety Guard
The GT-500 uses an OSHA-compliant front safety guard designed for professional environments.
The 304 stainless-steel hydrophilic guard encourages water to wick downward toward the housing instead of collecting into larger droplets that the rotating atomizer could throw outward.
This makes the GT platform particularly well suited to occupied agricultural, commercial, and industrial environments.
Used With / Compatible With
The Aquafog GT-500 Fans can be paired with compatible Aquafog environmental controls, mounting accessories, monitoring equipment, and oscillation systems.
For the 115 V GT-500, compatible products include:
- Aquafog Digital Humidistat Control DH-36-DF
- Aquafog Humidistat XE-36-DF
- Aquafog Cycle Timer Control CTA-120-DF
- Aquafog Thermostat Control THA-120-DF
- Aquafog 24-Hour Timer Control TC-120-DF
- Aquafog Water Solenoid SV-120-DF
- Aquafog XE-360 Oscillator
- Aquafog Traveling Floor Stand XE-100
- Aquafog Wall Mount XE-W
- Aquafog Ceiling Mount XE-C
- Aquafog Temperature-Humidity Meter CP-205
- Aquafog Temperature-Humidity Meter with Dew Point CP-301
Important: The listed DH-36-DF, XE-36-DF, CTA-120-DF, THA-120-DF, TC-120-DF, and SV-120-DF configurations are designed around 115 V operation. Pair the GT-500-230 with appropriately rated 230 V controls and water shutoff equipment.
You can select mechanical mounting accessories, monitoring meters, and compatible oscillation equipment based on installation requirements.
Ideal Applications
Aquafog GT-500 Fans are well suited for:
- Greenhouse humidification
- Greenhouse evaporative cooling
- Controlled-environment agriculture
- Horticultural facilities
- Agricultural and livestock cooling
- Warehouses
- Manufacturing facilities
- Industrial humidification
- Dust suppression
- Wood, lumber and paper facilities
- Textile humidity control
- Produce storage and processing
- Commercial work areas
- Outdoor cooling applications
Key Features
- Professional direct-feed centrifugal fog fans
-
Two models: GT-500 and GT-500-230
- 115 V or 230 V / 60 Hz
- Single-phase operation
- 1/4 HP industrial motor
-
Approximately 1,800 CFM airflow
-
Up to approximately 5.8 GPH fogging output
-
Approximately 25–30 ft fog propulsion
-
Up to approximately 46,500 BTU/h cooling capacity
-
Particle size from approximately 5–25 microns
- Nozzle-free centrifugal atomization
- Adjustable visual flowmeter system
- Multiple flowmeter ranges available
-
10–100 PSI water-supply compatibility
- Direct-feed installation
- Drain line required
- Water solenoid required for automatic operation
- OSHA-compliant safety guard
-
Hydrophilic 304 stainless-steel front guard
- Continuous-duty capability
- Indoor/outdoor operation
-
Up to 100% RH
- UV-stabilized, impact-resistant construction
- Manufactured in the USA
Specifications
| Specification |
GT-500 |
GT-500-230 |
| Product |
Aquafog GT-500 Fan |
Aquafog GT-500 Fan |
| Model / SKU |
GT-500 |
GT-500-230 |
| System Type |
Direct-feed centrifugal fogger |
Direct-feed centrifugal fogger |
| Voltage |
115 V |
230 V |
| Frequency |
60 Hz |
60 Hz |
| Phase |
Single phase |
Single phase |
| Motor |
1/4 HP |
1/4 HP |
| Current |
Approx. 3.4 A |
Approx. 1.8 A |
| Maximum Fogging Output |
Approx. 5.8 GPH |
Approx. 5.8 GPH |
| Airflow |
Approx. 1,800 CFM |
Approx. 1,800 CFM |
| Cooling Capacity |
Approx. 46,500 BTU/h |
Approx. 46,500 BTU/h |
| Fog Propulsion |
Approx. 25–30 ft |
Approx. 25–30 ft |
| Particle Size |
Approx. 5–25 microns |
Approx. 5–25 microns |
| Flowmeter Options |
1–5, 2–10 or 3–15 GPH |
Compatible flowmeter configuration |
| Water Pressure |
10–100 PSI |
10–100 PSI |
| Recirculating Tank |
No |
No |
| Drain Required |
Yes |
Yes |
| Noise Level |
Approx. 70 dB(A) at 10 ft |
Approx. 70 dB(A) at 10 ft |
| Dimensions |
22 in dia. × 17.5 in D × 25 in H |
22 in dia. × 17.5 in D × 25 in H |
| Environment |
Indoor/outdoor, up to 100% RH |
Indoor/outdoor, up to 100% RH |
| Temperature Range |
Approx. 31–160°F |
Approx. 31–160°F |
| Used With |
DH-36-DF, XE-36-DF, CTA-120-DF, THA-120-DF, TC-120-DF, SV-120-DF, XE-360, XE-100, XE-W, XE-C, CP-205, CP-301 |
Voltage-matched controls, XE-360, XE-100, XE-W, XE-C, CP-205, CP-301 |
| Country of Origin |
USA |
USA |
Professional Fogging with 115 V or 230 V Power
The Aquafog GT-500 Fans combine reliable centrifugal atomization, strong 1,800 CFM airflow, adjustable direct-feed water control, and a durable OSHA-compliant design for professional humidification and evaporative cooling.
With both GT-500 115 V and GT-500-230 230 V models available, facilities can choose the electrical configuration that best matches their installation while benefiting from the same dependable GT fogging platform.
